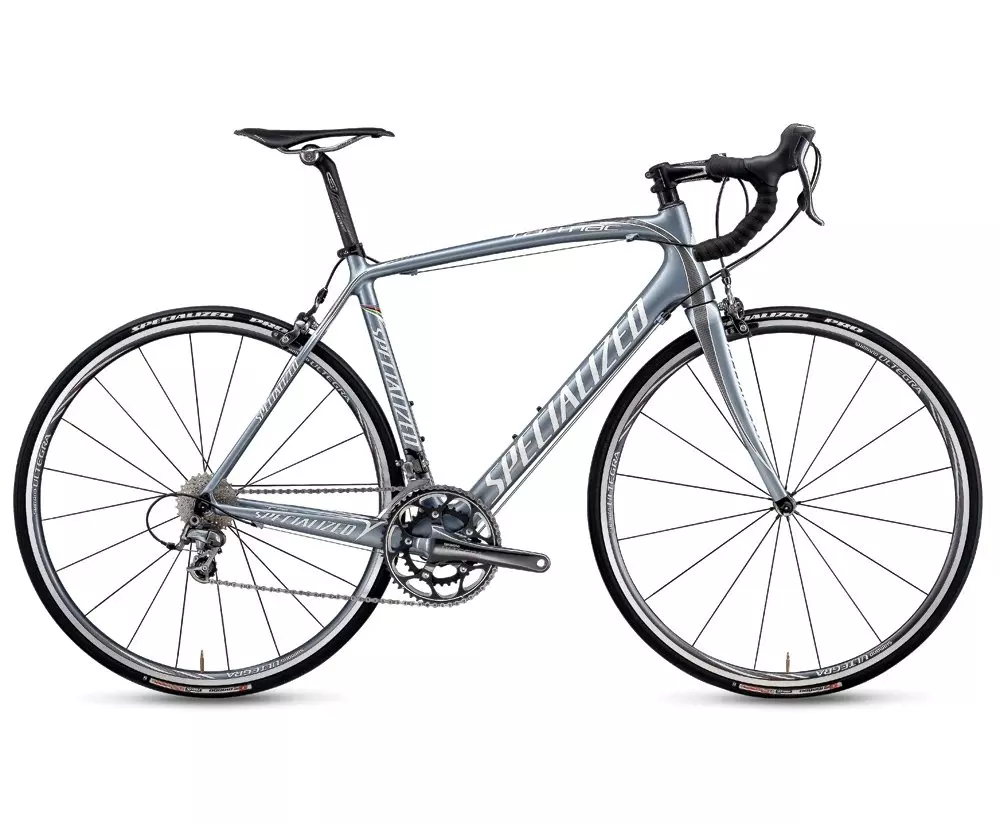

2009 Tarmac Expert Compact
0 Reviews
FROM THE SPRING CLASSICS to the Grand Tours, the Tarmac has proven itself…
Product Details
FROM THE SPRING CLASSICS to the Grand Tours, the Tarmac has proven itself to be the professional rider's bike of choice. A world championship and a Tour de France green jersey lend proof to our claim that no frame is lighter and stiffer. Tarmac Expert wins Bicycling Magazine's Editor's Choice Award for Best Enthusiast Road Bike. Video from I-Am-Specialized.com .
The Tarmac Expert’s FACT 8r carbon construction means it’s light and stiff, for incredible speed and efficiency.
The S-Works FACT carbon monocoque fork has an oversized race for incredible strength and precision.
The 3D-forged Pro-Set stem features an oversized bar-clamp area for sure, precise steering.
The Specialized Pro alloy handlebar has a hand-friendly ergonomic shape, and an oversized clamp area for precision steering.
The scientifically proven Body Geometry Toupé is easy on your soft parts.
The Pro SL seatpost uses our FACT carbon construction for lightweight strength. The integrated Zertz insert absorbs energy-robbing vibrations.
Technical Specifications
FRAMESET
FRAME
Specialized FACT 8r carbon, triple monocoque construction, compact race design
FORK
Specialzied Expert FACT carbon, monocoque construction, OS race for 1.5"" bearing, full carbon legs, crown and steerer
HEADSET
Specialized Campy style, 1.5"" lower bearing, integrated threadless, stainless steel sealed cartridge bearings, 8mm carbon cone w/ one 10mm and two 5mm carbon spacers
SEAT BINDER
Specialized CNC alloy, 32.6mm
WHEELS
FRONT TIRE
Specialized Mondo Pro, 700x23c, aramid bead, 120TPI, Flak Jacket
REAR TIRE
Specialized Mondo Pro, 700x23c, aramid bead, 120TPI, Flak Jacket
INNER TUBES
Specialized standard presta tube
RIMS
Shimano Ultegra SL
FRONT HUB
Shimano Ultegra SL, QR
REAR HUB
Shimano Ultegra SL, alloy cassette, QR
SPOKES
Stainless bladed
DRIVETRAIN
FRONT DERAILLEUR
Shimano Ultegra SL, braze-on clamp
REAR DERAILLEUR
Shimano Ultegra SL, short cage
SHIFT LEVERS
Shimano Ultegra SL, 10-speed STI, flight deck compatible
CASSETTE
Shimano Ultegra, 10-speed, 12-27t
CHAIN
Shimano Ultegra, 10-speed
CRANKSET
Shimano Ultegra SL
CHAINRINGS
50 x 34t
BOTTOM BRACKET
Shimano Ultegra SL, Hollowtech II
COCKPIT
STEM
Specialized Pro-Set, 3D forged alloy, 4-bolt 31.8mm bar clamp, 4- position adjustable
HANDLEBARS
Specialized Pro, 2014 alloy, short-drop, ergonomic shaping, 31.8mm
TAPE
Body Geometry Bar Phat, cork ribbon w/ 2.5mm gel padding
SADDLE
Body Geometry Toupé, super light foam, carbon reinforced base, Cr-Mo rails
SEATPOST
Specialized Pro SL, FACT carbon w/ Zertz insert, 27.2mm
BRAKES
FRONT BRAKE
Shimano Ultegra SL
REAR BRAKE
Shimano Ultegra SL
BRAKE LEVERS
Shimano Ultegra SL, 10-speed STI, flight deck compatible
ACCESSORIES
PEDALS
Silver cage, black body, w/ toe clip and strap
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Ground-Top | 71.5mm | 71.5mm | 69mm | 69mm | 67.5mm | 67.5mm |
| Seat-Tube Angle | 57° | 62° | 57° | 56° | 53° | 56° |
| Head-Tube Angle | 576° | 576° | 583° | 591° | 605° | 612° |
| Chain-Stay Length | 45mm | 45mm | 45mm | 43mm | 43mm | 43mm |
| Top-Tube Length, Horizontal | 74mm | 75.5mm | 73.5mm | 73.25mm | 72.5mm | 73mm |
| Front-Center | 100mm | 120mm | 145mm | 170mm | 205mm | 230mm |
| Handle-Bar Width | 0mm | 0mm | 0mm | 0mm | 0mm | 0mm |
| Seat-Tube Length, B-B Center to Top | 405mm | 405mm | 405mm | 405mm | 407mm | 410mm |
| Fork Rake | 970mm | 970mm | 978mm | 986mm | 1003mm | 1013mm |
| B-B Drop | 72.25mm | 73mm | 73mm | 73.5mm | 73.5mm | 74mm |
| Stack | 460mm | 490mm | 510mm | 530mm | 550mm | 580mm |
| Reach | 518mm | 537mm | 548mm | 565mm | 582mm | 600mm |
| Trail | 730mm | 755mm | 777mm | 800mm | 828mm | 857mm |
