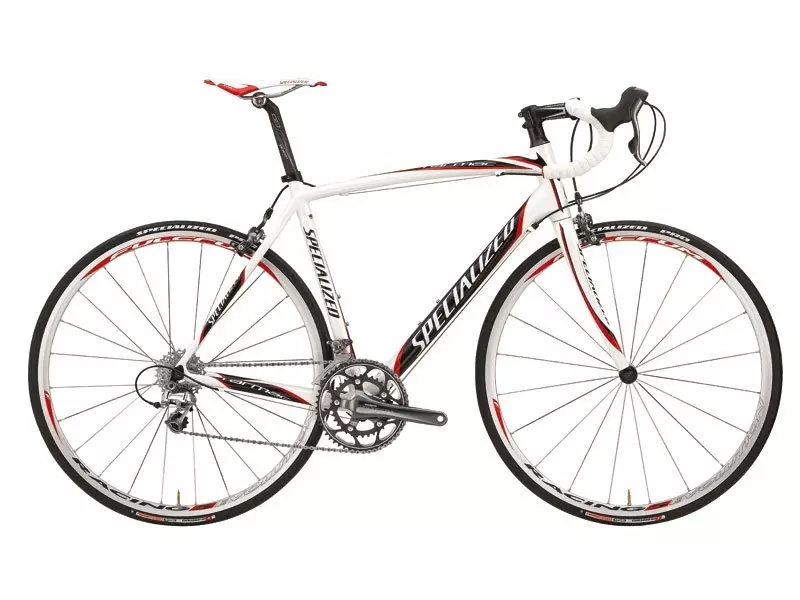

2008 Tarmac Expert Compact

0 Reviews

Competitive Road FAST REDEFINED Designed for speed and efficiency, yet still light,…

Color:

White

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Product Details

Competitive Road FAST REDEFINED Designed for speed and efficiency, yet still light, sharp-handling and smooth-riding, the Tarmac SL gives new meaning to the word fast.Inside Tech When we set out to build the lightest, most efficient road bike ever, there wasn't a manufacturing process that could do the job. So we created one—'Az1'. Using Az1 (say: as-one) we seamlessly join discrete carbon monocoque sections into a single chassis, creating a frame with unsurpassed strength-to-weight and stiffness-to-weight ratios. Useful Links FACT Carbon Manuals/Tech Bulletins

Specialized FACT 6r carbon frame, triple monocoque construction, compact race design, Zertz inserts
Specialized FACT monocoque carbon fork, full carbon legs, crown and steerer w/ Speed Zertz
Specialized Pro-Set lightweight stem and Specialized Pro, 7050 alloy bars, short-reach drop, ergonomic top shaping, 31.88mm
Shimano Dura-Ace, short cage rear derailleur
FSA SL-K MegaExo, 2-piece carbon crankset with compact 50x34T chainrings
Mavic Kysrium Equipe wheelset
Body Geometry Toupé Team saddle

Technical Specifications

FRAMESET

FRAME

Specialized FACT 8r carbon, Az1 construction, compact race design

FORK

Specialized FACT monocoque carbon fork, full carbon legs, crown and steerer

HEADSET

Specialized Mindset Plus Carbon, 1 1/8"" integrated threadless, cartridge sealed bearings, carbon 20mm cone w/ one 10mm and two 5mm carbon spacers

SEAT BINDER

Specialized CNC, alloy, 32.6mm clamp

WHEELS

FRONT TIRE

Specialized Mondo Pro, 700x23C, aramid bead, 120TPI, Flak Jacket

REAR TIRE

Specialized Mondo Pro, 700x23C, aramid bead, 120TPI, Flak Jacket

RIMS

Fulcrum Racing 5

FRONT HUB

Fulcrum Racing 5 Evolution, QR

REAR HUB

Fulcrum Racing 5 Evolution, cassette, QR

SPOKES

Stainless 14g aero

DRIVETRAIN

FRONT DERAILLEUR

Shimano Ultegra, 34.9mm clamp, bottom pull

REAR DERAILLEUR

Shimano Dura-Ace, short cage

SHIFT LEVERS

Shimano Ultegra, 10-speed STI, flight deck compatible

CHAIN

Shimano Ultegra, 10-speed

CRANKSET

Shimano Ultegra, Hollowtech II 2-piece crankset

CHAINRINGS

50x34T

BOTTOM BRACKET

Shimano Ultegra, Hollowtech II

COCKPIT

STEM

Specialized Pro-Set lightweight stem, 3D forged alloy, 4-bolt 31.8mm bar clamp, 4- position adjustable

HANDLEBARS

Specialized Pro, 7050 alloy, short-reach drop, ergonomic top shaping, 31.8mm

SADDLE

Body Geometry Toupé Team, super light foam, carbon reinforced base, microfiber cover

BRAKES

FRONT BRAKE

Shimano Ultegra

REAR BRAKE

Shimano Ultegra

BRAKE LEVERS

Shimano Ultegra, 10-speed STI, flight deck compatible

ACCESSORIES

PEDALS

Composite body test ride pedals

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	49	52	54	56	58	61
Ground-Top	71.5mm	71.5mm	69mm	69mm	67.5mm	67.5mm
Seat-Tube Angle	57°	62°	57°	56°	53°	56°
Head-Tube Length	170mm	170mm	172.5mm	172.5mm	175mm	175mm
Head-Tube Angle	576°	576°	583°	591°	605°	612°
Chain-Stay Length	45mm	45mm	45mm	43mm	43mm	43mm
Top-Tube Length, Horizontal	74mm	75.5mm	73.5mm	73.25mm	72.5mm	73mm
Front-Center	100mm	120mm	145mm	170mm	205mm	230mm
Handle-Bar Width	300mm	350mm	350mm	350mm	350mm	350mm
Stand-Over Height	75mm	90mm	100mm	100mm	110mm	120mm
Seat-Tube Length, B-B Center to Top	405mm	405mm	405mm	405mm	407mm	410mm
Fork Rake	970mm	970mm	978mm	986mm	1003mm	1013mm
B-B Drop	72.25mm	73mm	73mm	73.5mm	73.5mm	74mm
Stack	460mm	490mm	510mm	530mm	550mm	580mm
Reach	518mm	537mm	548mm	565mm	582mm	600mm
Trail	730mm	754mm	777mm	800mm	826mm	852mm
Wheelbase	400mm	400mm	420mm	420mm	440mm	440mm
