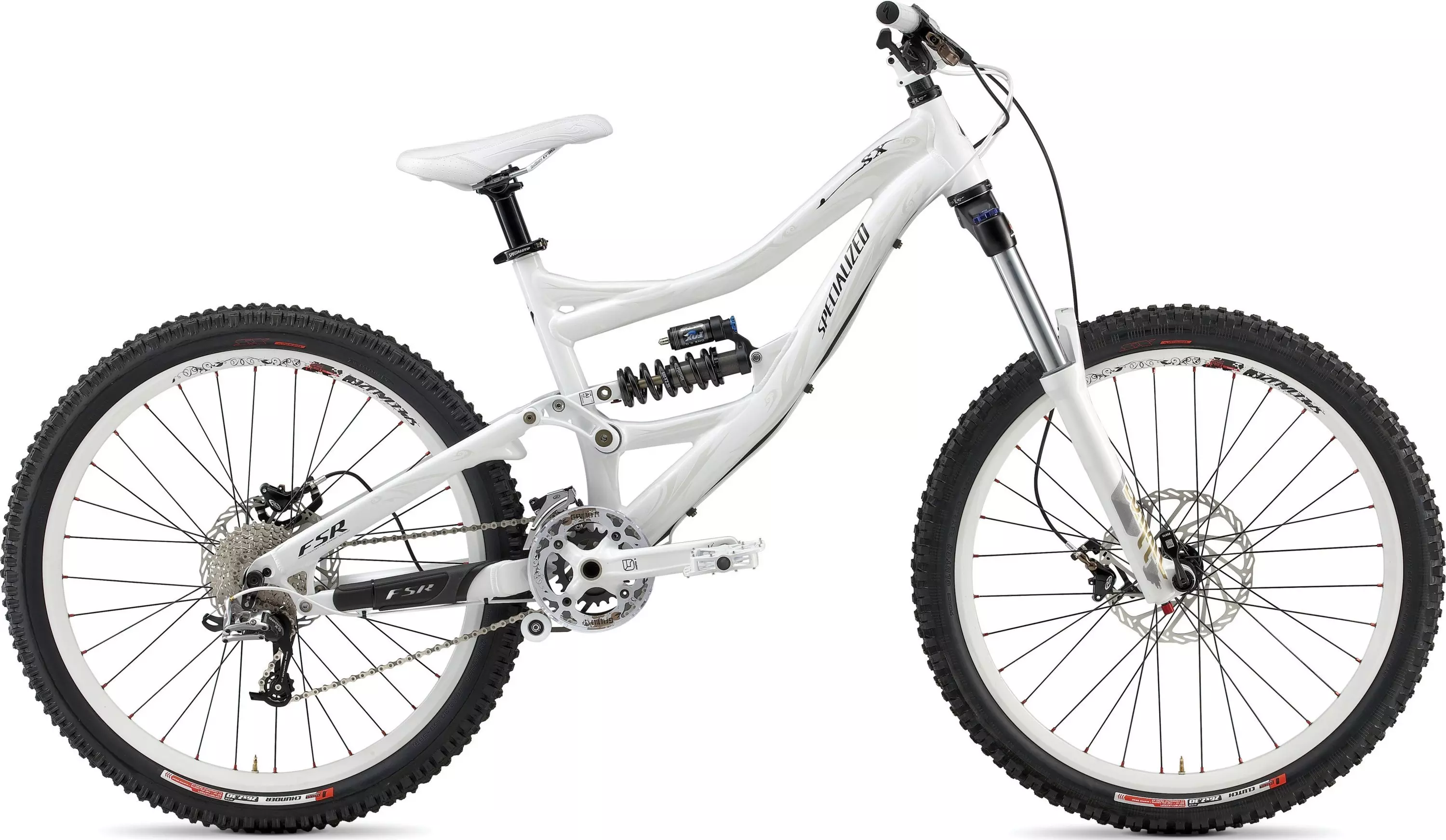

2010 SX Trail I

0 Reviews

Nothing short of the most successful slopestyle bike ever created, the SX is a competition…

Color:

White

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Product Details

Nothing short of the most successful slopestyle bike ever created, the SX is a competition favorite for Darren Berrecloth and the bike that carried Sam Hill to a dual slalom championship at the Sea Otter Classic. Innovative rear linkage, low centralized weight, better-thanever square edge hit performance and stout, strong frames make the SX/SX Trail a sure thing for drops, stunts or whatever else you have up your sleeve.

30mm-wide custom DT Swiss F550 rims excel in rocky downhill runs and hard landings
SX Trail 170mm travel M5 Premium Aluminum frame with ORE tubing and full cartridge bearing pivots redefines versatility
Specialized Demo 31.8mm low-rise handlebars provide a wide stance for jet fighter-like handling and control with its 750mm width
FSA Moto X crankset with Gamut shift guide literally puts pedal to the metal, turning revolutions into pulse-pounding speed down the mountain
Specialized Clutch 26 x 2.3" front tire with SX dual-ply casing supplies speed, traction and control, and the Chunder SX 2.3" rear tire provides cornering stability while staving off pinch-flats

Technical Specifications

FRAMESET

FRAME

SX Trail M5 Premium Aluminum frame, ORE TT/DT, forged HT, full cartridge bearing pivots and shock yoke, ISCG mount, replaceable derailleur hanger, derailleur guard, 170mm travel

HEADSET

1-1/8"" cartridge alloy upper and 1.5"" lower cartridge bearing

SEAT BINDER

7050 hard annodized alloy collar w/ QR, 34.9mm clamp ID, black

SUSPENSION

REAR SHOCK

Fox DHX 4.0 coil 7.875x2.25"", rebound, bottom out and ProPedal adj., S: 500, M: 550, L: 600

FORK

RockShox Domain 318 coil spring. 160mm, adj comp and reb, 1 1/8 to 1.5"" tapered alloy steerer

WHEELS

FRONT TIRE

Specialized Clutch SX 26x2.3"", SX casing, aramid bead, dual compound

REAR TIRE

Specialized Chunder SX 26x2.3"", SX casing, aramid bead, dual compound

INNER TUBES

Presta valve

RIMS

Custom DT Swiss F550, 30mm wide, 32h

FRONT HUB

Hi-Lo disc, 20mm thru-axle, 32h

REAR HUB

Thru axle 135mm, hollow 10mm Cr-Mo axle w/ RD guard

SPOKES

DT Swiss Champion 2mm stainless

DRIVETRAIN

FRONT DERAILLEUR

Shimano M660 SLX, DMD, top swing, dual pull

REAR DERAILLEUR

SRAM X-9, 9-speed, mid cage

SHIFT LEVERS

SRAM X-5 trigger

CASSETTE

Shimano HG61, 9-speed, 11-34t

CHAIN

SRAM PC-971, 9-speed w/Power Link

CRANKSET

FSA Moto-X MegaExo, forged solid arms, 24S/36A rings with Gamut shift guide

CHAINRINGS

36A x 24S w/ Gamut guard

BOTTOM BRACKET

FSA BB-7000 for Moto-X crank, 73mm shell

COCKPIT

STEM

Specialized, 35mm extension, OS 31.8, 4-bolt, forged

HANDLEBARS

Specialized Demo low-rise bar, 7050 alloy, 31.8mm, 750mm wide, 9 degree backsweep, 6 degree up

GRIPS

Specialized waffle lock on grip (S/M) Specialized Thick lock on grip (L) with alloy end plug

SADDLE

Specialized Enduro, 8mm hollow Cr-Mo rails, SL foam

SEATPOST

6061 butted alloy, two bolt no offset, 30.9mm

BRAKES

FRONT BRAKE

Custom Avid Elixir R hydraulic disc, reach adjust, metallic pads, 203mm rotor

REAR BRAKE

Custom Avid Elixir R, hydraulic disc, reach adjust, metallic pads, 185mm rotor

BRAKE LEVERS

Custom Avid Elixir R Hydraulic, tool-less adj. reach

ACCESSORIES

PEDALS

Specialized Lo-Pro alloy

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	S	M	L
Ground-Top	942mm	942mm	942mm
Bottom Bracket Height - Low Setting	356mm	356mm	356mm
Top Tube Length (Horizontal)	574mm	592mm	615mm
Head Tube Height	120mm	120mm	120mm
Head Tube Angle - Low Setting	66°	66°	66°
Seat Tube Angle (Actual) - Low Setting	70.5°	70.5°	70.5°
Seat Tube Angle (Effective) - Low Setting	74.5°	74.5°	74.5°
Top Tube Length (Actual)	546mm	560mm	577mm
Seat Tube Length - Center to Top	394mm	419mm	470mm
Wheel Base	1149mm	1167mm	1190mm
Standover Height	700mm	699mm	735mm
Stack	586mm	586mm	586mm
Reach	411mm	429mm	452mm
Chainstay Length	419mm	419mm	419mm
Crank Length	170mm	170mm	170mm
Handlebar Width	750mm	750mm	750mm
Stem Length	40mm	40mm	40mm
Seatpost Length	330mm	330mm	330mm
