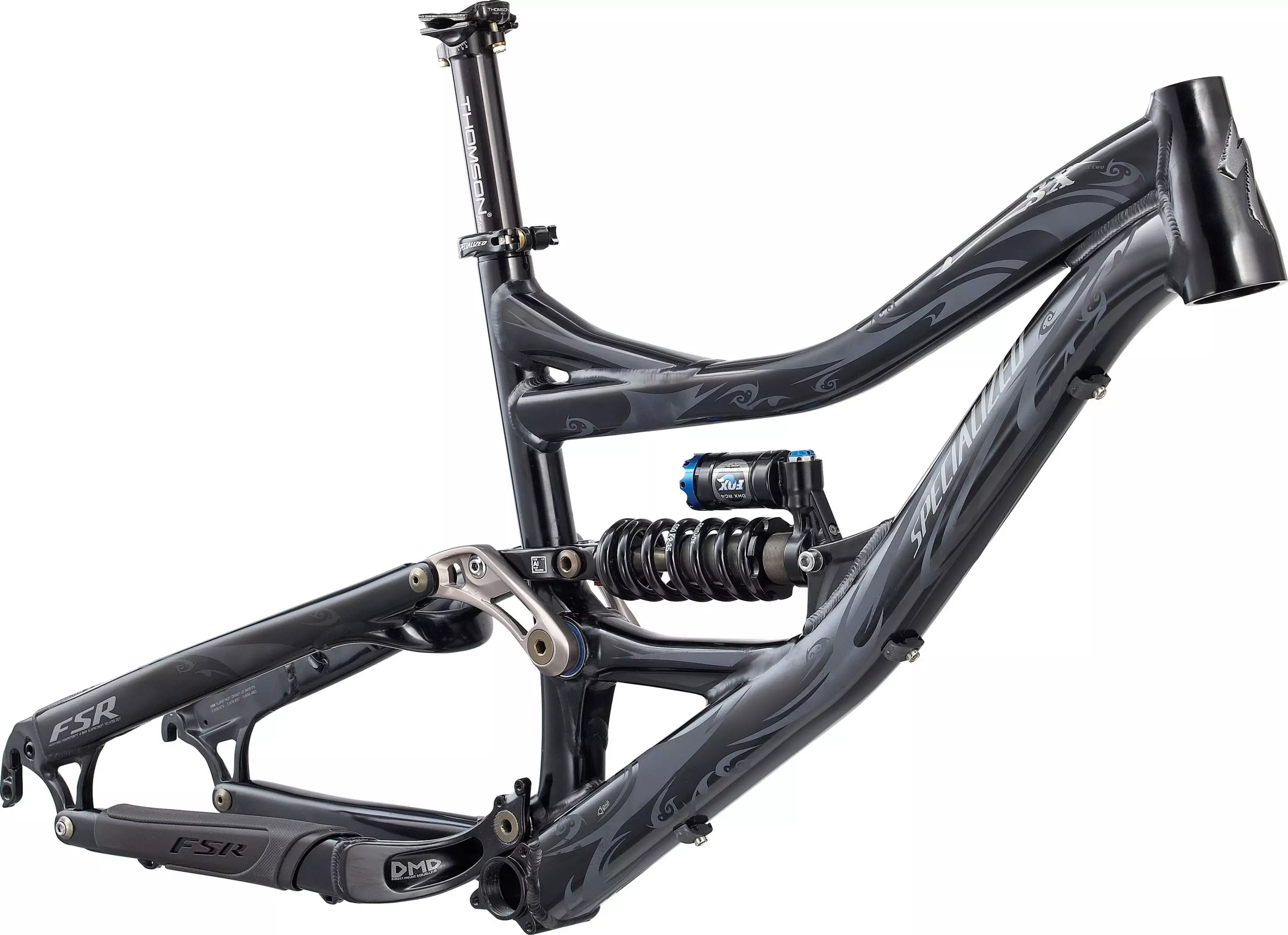

2010 SX Trail Frame

0 Reviews

Nothing short of the most successful slopestyle bike ever created, the SX is a competition…

Color:

Black Ano

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Product Details

Nothing short of the most successful slopestyle bike ever created, the SX is a competition favorite for Darren Berrecloth and the bike that carried Sam Hill to a dual slalom championship at the Sea Otter Classic. Innovative rear linkage, low centralized weight, better-thanever square edge hit performance and stout, strong frames make the SX/SX Trail a sure thing for drops, stunts or whatever else you have up your sleeve.

SX Trail 170mm travel M5 Premium Aluminum frame with ORE tubing and full cartridge bearing pivots redefines the freeride
New for 2010 Fox DHX RC4 rear shock increases shaft diameter for lower internal pressure, provides an elegant mix of granular adjustability with its externally adjustable high- and low-speed compression, and re-engineered Boost Valve enhances small bump compliance and large bump mastery

Technical Specifications

FRAMESET

FRAME

SX Trail M5 Premium Aluminum frame, ORE TT/DT, forged HT, full cartridge bearing pivots and shock yoke, ISCG mount, replaceable derailleur hanger, derailleur guard, 170mm travel

SEAT BINDER

7050 hard annodized alloy collar w/ QR, 34.9mm clamp ID, black

SUSPENSION

REAR SHOCK

Specialized DHX RC4 coil 7.875x2.25"" for SX Trail, rebound adj., High and low speed compression adj. and bottom out control, S:500, M:550, L:600

COCKPIT

SEATPOST

Thomson straight w/ 12 degree clamp, 367mm

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	S	M	L
Ground-Top	942mm	942mm	942mm
Bottom Bracket Height - Low Setting	356mm	356mm	356mm
Top Tube Length (Horizontal)	574mm	592mm	615mm
Head Tube Height	120mm	120mm	120mm
Head Tube Angle - Low Setting	66°	66°	66°
Seat Tube Angle (Actual) - Low Setting	70.5°	70.5°	70.5°
Seat Tube Angle (Effective) - Low Setting	74.5°	74.5°	74.5°
Top Tube Length (Actual)	546mm	560mm	577mm
Seat Tube Length - Center to Top	394mm	419mm	470mm
Wheel Base	1149mm	1167mm	1190mm
Standover Height	700mm	699mm	735mm
Stack	586mm	586mm	586mm
Reach	411mm	429mm	452mm
Chainstay Length	419mm	419mm	419mm
Crank Length	170mm	170mm	170mm
Handlebar Width	750mm	750mm	750mm
Stem Length	40mm	40mm	40mm
Seatpost Length	330mm	330mm	330mm
