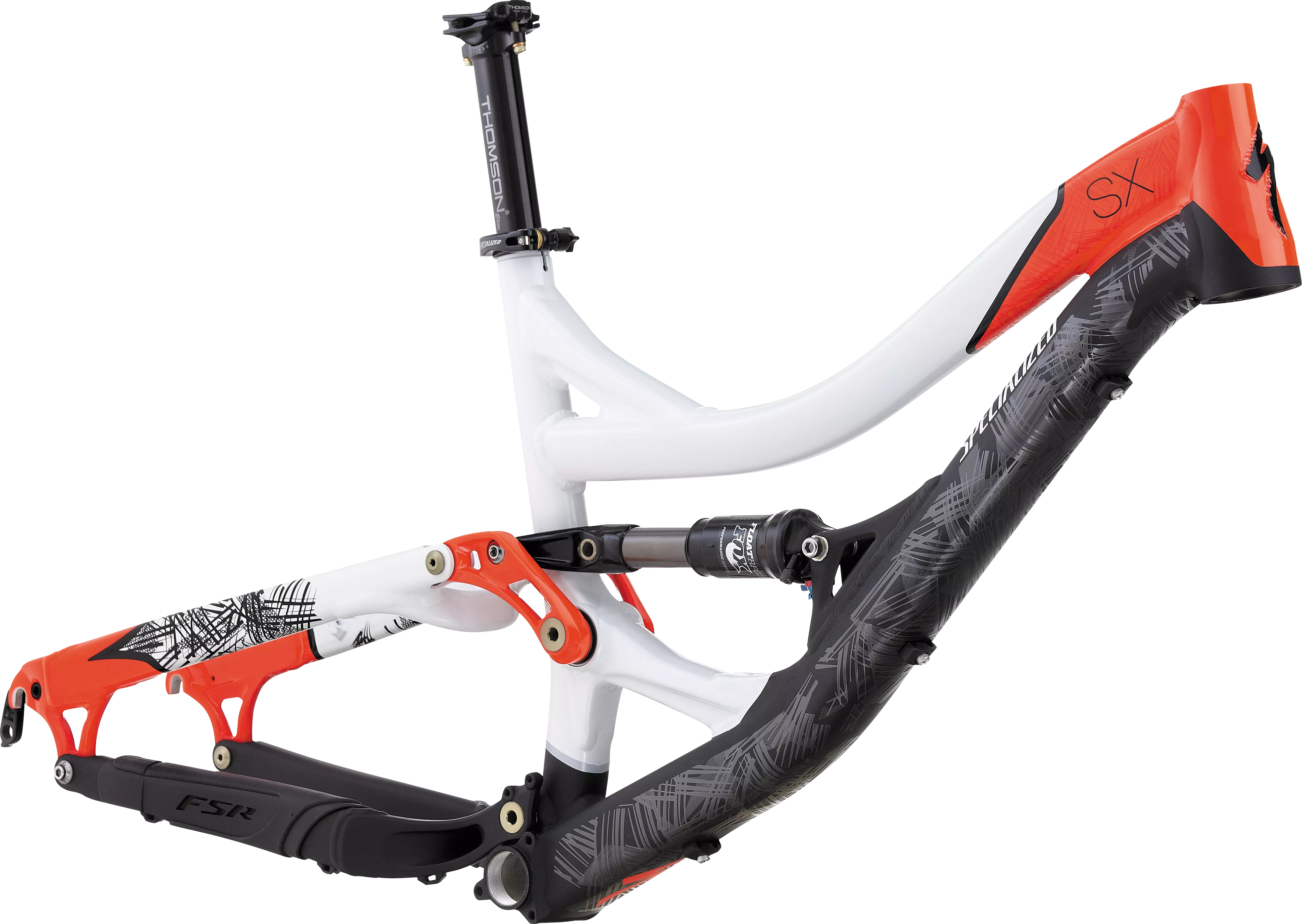

2012 SX Frame

0 Reviews

Designed for dual slalom racing, but is also at home riding slopestyle courses, the…

Product Details

Designed for dual slalom racing, but is also at home riding slopestyle courses, the 100mm-travel SX frame is built for going fast and catching air. It's equipped with a Fox RP23 air shock.

M5 manipulated alloy frame with 100mm of travel, ORE tubing, ISCG mount, and tapered head tube creates a tough and maneuverable bike for gated racing and freeride sessions
Custom-tuned Fox Float Factory RP23 Adaptive Logic shock with fixed ProPedal setting and 3 open compression settings for finding that perfect setup
Micro-adjustable Thomson Elite alloy seatpost is super strong and light for worry-free bombing and pin-point saddle position

Technical Specifications

FRAMESET

FRAME

M5 manipulated alloy, ORE TT/DT, tapered HT, ISCG mount, full cartridge bearing pivots and shock yoke, rear derailleur guard, 100mm travel

SEAT BINDER

34.9mm clamp ID, 7050 hard anodized alloy collar w/ QR, black

SUSPENSION

REAR SHOCK

Custom Fox RP23 with Adaptive Logic, rebound and custom 3-position open comp adj., SX shock extension, 7.5x1.5""

COCKPIT

SEATPOST

Thomson straight w/ 12º clamp, 367mm

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	Short	Long
Ground-Top	889mm	889mm
Bottom Bracket Height - Low Setting	311mm	311mm
Top Tube Length (Horizontal)	584mm	606mm
Head Tube Height	120mm	120mm
Head Tube Angle - Low Setting	68°	68°
Seat Tube Angle (Actual) - Low Setting	70.5°	70.5°
Seat Tube Angle (Effective) - Low Setting	74.5°	74.5°
Top Tube Length (Actual)	554mm	570mm
Seat Tube Length - Center to Top	394mm	419mm
Wheel Base	1114mm	1136mm
Standover Height	642mm	652mm
Stack	578mm	578mm
Reach	424mm	446mm
Chainstay Length	419mm	419mm
Seatpost Length	330mm	330mm
