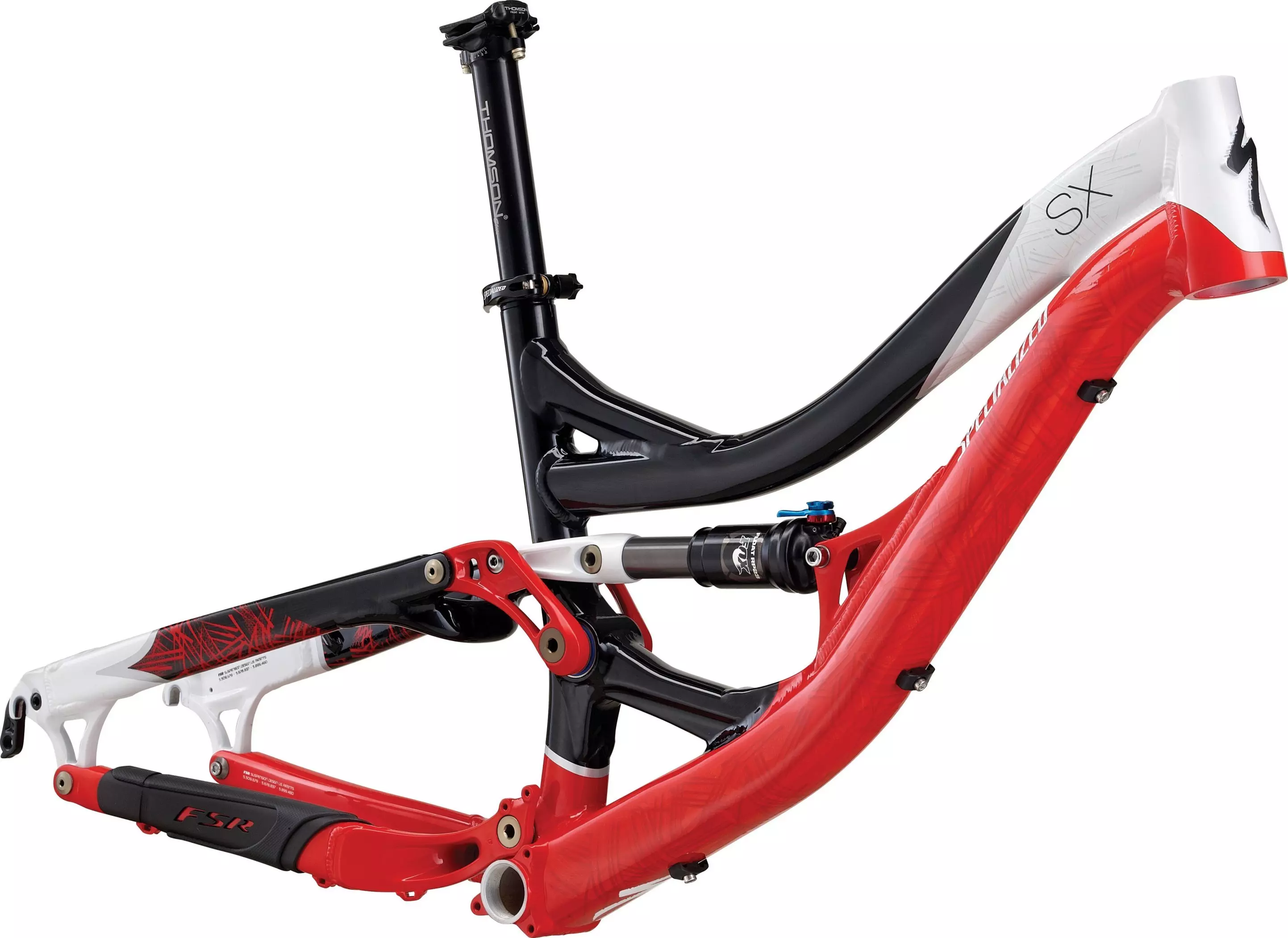

2011 SX Frame

0 Reviews

Compared to the SX Trail, The SX frame is built on a shorter wheelbase with tighter…

Product Details

Compared to the SX Trail, The SX frame is built on a shorter wheelbase with tighter geometry to keep it quick out of the gate and nimble down the slalom course.

Micro-adjustable Thomson Elite alloy seatpost is super strong and light for worry-free bombing up or down the trails
Custom-tuned Fox RP23 rear shock uses 3-position ProPedal adjust to maximize pedaling input and external rebound control
M5 manipulated alloy frame with 100mm of travel, ORE tubing, ISCG mount, and rear derailleur guard creates a tough and maneuverable bike for all your freeride sessions or gated racing

Technical Specifications

FRAMESET

FRAME

M5 manipulated alloy, ORE TT/DT, tapered HT, ISCG mount, full cartridge bearing pivots and shock yoke, rear derailleur guard, 100mm travel

SEAT BINDER

34.9mm clamp ID, 7050 hard annodized alloy collar w/ QR, black

SUSPENSION

REAR SHOCK

Custom Fox RP23, ProPedal and rebound adjust, SX shock extension

COCKPIT

SEATPOST

Thomson straight w/ 12 degree clamp, 367mm

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	Short	Long
Ground-Top	889mm	889mm
Bottom Bracket Height - Low Setting	311mm	311mm
Top Tube Length (Horizontal)	584mm	606mm
Head Tube Height	120mm	120mm
Head Tube Angle - Low Setting	68°	68°
Seat Tube Angle (Actual) - Low Setting	70.5°	70.5°
Seat Tube Angle (Effective) - Low Setting	74.5°	74.5°
Top Tube Length (Actual)	554mm	570mm
Seat Tube Length - Center to Top	394mm	419mm
Wheel Base	1114mm	1136mm
Standover Height	642mm	652mm
Stack	578mm	578mm
Reach	424mm	446mm
Chainstay Length	419mm	419mm
Seatpost Length	330mm	330mm
