Nothing short of the most successful slopestyle bike ever created, the SX is a competition…
Product Details

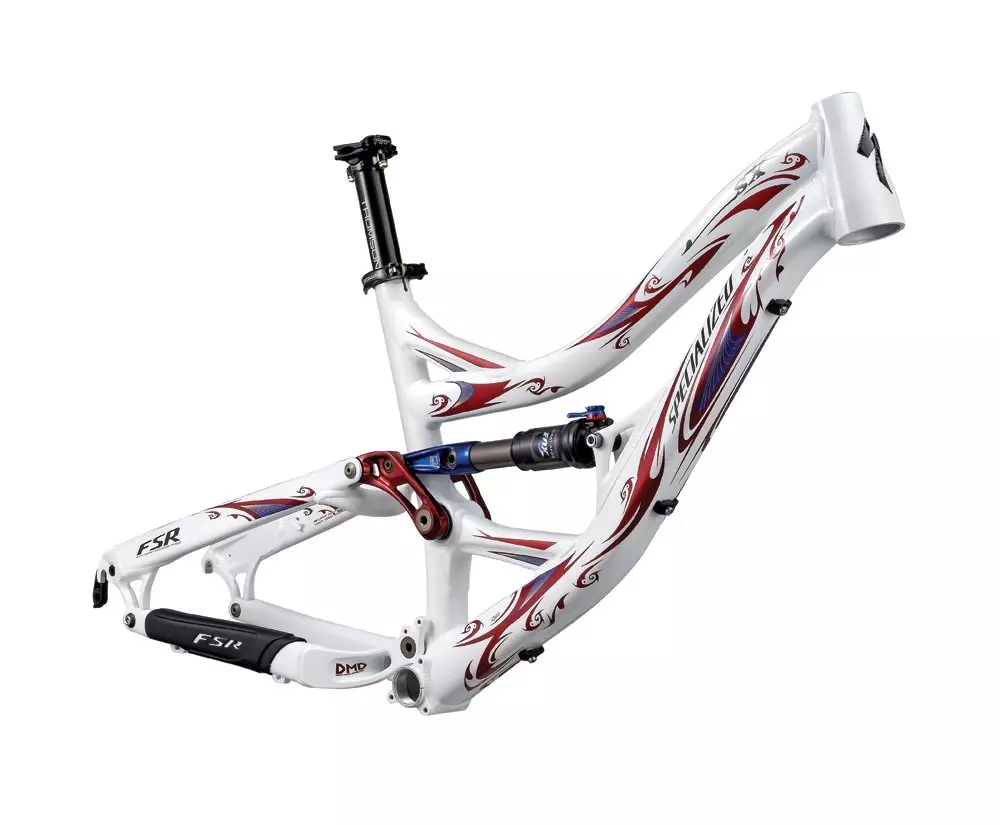

Nothing short of the most successful slopestyle bike ever created, the SX is a competition favorite for Darren Berrecloth and the bike that carried Rafael Alvarez to his 2008 4X World Championship.
Custom tuned for the SX, the proven and plush Fox RP23 rear shock delivers adjustable rebound with ProPedal adjust for speed in the corners and traction through any terrain.
Race-bred M5 Premium Aluminum frame with ORE top/down tube turns out the ultimate in steering precision and strength. Integrated ISCG mount and full cartridge bearing pivots.
Technical Specifications
FRAMESET
FRAME
SX M5 Premium Aluminum frame, ORE TT/DT, low center of gravity design, full cartridge bearing pivots, ISCG mount, rear derailleur guard, 4.2"" travel
SEAT BINDER
7050 hard annodized alloy collar w/ QR, 34.9mm clamp ID, black
SUSPENSION
REAR SHOCK
Fox RP23, ProPedal and rebound adj., custom tuned for SX
COCKPIT
SEATPOST
Thomson Elite Straight w/ 12 degree clamp, 367mm
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| Short | Long | |
|---|---|---|
| Bottom Bracket Height - Low Setting | 311mm | 311mm |
| Top Tube Length (Horizontal) | 584mm | 606mm |
| Head Tube Height | 120mm | 120mm |
| Head Tube Angle - Low Setting | 68° | 68° |
| Seat Tube Angle (Actual) - Low Setting | 70.5° | 70.5° |
| Seat Tube Angle (Effective) - Low Setting | 74.5° | 74.5° |
| Top Tube Length (Actual) | 560mm | 574mm |
| Seat Tube Length - Center to Top | 394mm | 419mm |
| Wheel Base | 1114mm | 1136mm |
| Standover Height | 642mm | 652mm |
| Chainstay Length | 419mm | 419mm |
| Seatpost Length | 330mm | 330mm |
