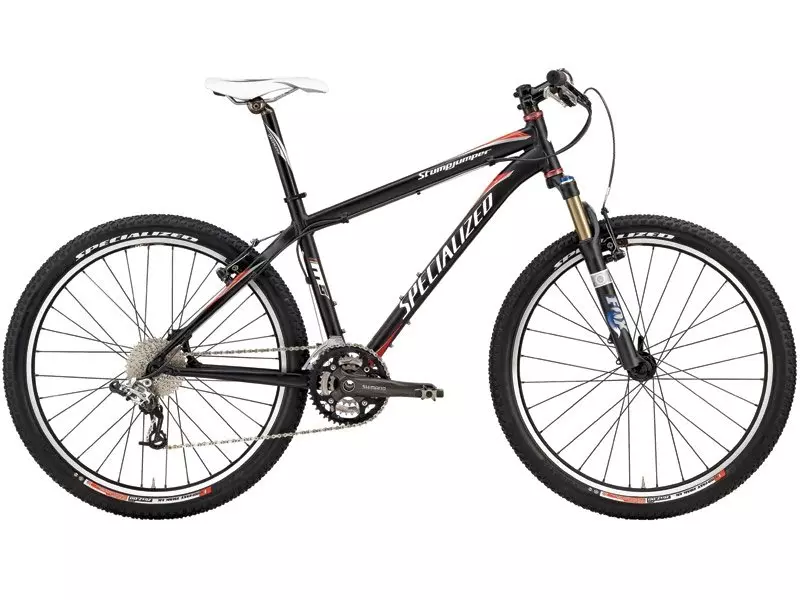

2008 Stumpjumper

0 Reviews

Competitive XC Hardtail DESIGNED TO FLY With a FACT carbon or M5® alloy frame,…

Product Details

Competitive XC Hardtail DESIGNED TO FLY With a FACT carbon or M5® alloy frame, the Stumpjumper® is designed to fly with unbeatable efficiency, super low weight and precision handling that'll guide you through even the stickiest of situations. Inside Tech TECH We've been continually refining the Stumpjumper for over two decades, and by now, we've tweaked and tuned the frame materials we use to the point of near perfection (yet, as great as they are, we're always pushing to make them better.) Today's FACT carbon or M5 alloy hardtails both feature completely proprietary frame materials that have been developed by our engineers for unparalleled efficiency, low weight and precision handling. Useful Links Manuals/Tech Bulletins

M5 alloy hardtail frame, fully manipulated DT, TT, SS, CS, ST with new larger diameter/stiffer ORE DT/TT and Mono-stay seatstays
Fox F90 RL fork with 90mm travel, air spring, lock out and alloy steerer
Shimano M542 crankset, 2pc custom for Specialized
Crank Brothers Smarty pedals custom for Specialized
Specialized Fast Trak Control LK tyres, 29x2.0", 60TPI, tubeless ready with aramid bead and dual compound

Technical Specifications

FRAMESET

FRAME

M5 alloy hardtail, fully manipulated DT, TT, SS, CS, ST w/ shared tube Mono-stay seatstays, new larger diameter/stiffer ORE DT/TT, disc mount, replaceable derailleur hanger

HEADSET

1 1/8"" threadless, alloy cups w/ 10mm insertion, sealed cartridge bearing

SEAT BINDER

Alloy single bolt, 34.9mm clamp ID

SUSPENSION

FORK

Fox F90 RL, 90mm travel, air spring, rebound/compression adjust w/ lock out, alloy steerer

WHEELS

FRONT TIRE

Specialized Fast Trak Control LK, 26x2.0"", 60TPI, tubeless ready aramid bead, dual compound

REAR TIRE

Specialized Fast Trak Control LK, 26x2.0"", 60TPI, tubeless ready aramid bead, dual compound

RIMS

Mavic X317, 26"", black w/ eyelets, 28/32h

FRONT HUB

Specialized Hi Lo disc, 28h CNC flange and disc mount, sealed cartridge bearing, 9mm DT RWS alloy QR

REAR HUB

Shimano custom M525SL hub for Specialized, 32h, alloy QR

SPOKES

DT Swiss 1.8mm stainless, alloy nipples

DRIVETRAIN

FRONT DERAILLEUR

Shimano M581 LX, 34.9mm clamp, bottom swing, dual pull

REAR DERAILLEUR

SRAM X-9, 9-speed, mid cage

SHIFT LEVERS

SRAM X-7, aluminum 9-speed trigger

CHAIN

SRAM PC-971 w/ Power Link

CRANKSET

Shimano A/A/S 2pc custom

CHAINRINGS

22S/32A/44A, 4 bolt 104/64mm

BOTTOM BRACKET

Shimano M542, 2pc custom for Specialized

COCKPIT

STEM

Specialized adjustable rise, 31.8mm clamp, 3D forged w/CNC finish

HANDLEBARS

Specialized XC flat 31.8mm bar, 2014 butted alloy, 6 degree backsweep, 600mm wide

SADDLE

Specialized XC MTB, hollow Cr-Mo rails, SL foam

BRAKES

FRONT BRAKE

Avid SD-5R, cantilevers, cartridge pads, lightweight compressionless housing

REAR BRAKE

Avid SD-5R, cantilevers, cartridge pads, lightweight compressionless housing

BRAKE LEVERS

Avid FR-5

ACCESSORIES

PEDALS

Crank Brothers Smarty custom for Specialized

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	13.5	15.5	17	18	19	21
Bottom Bracket Height - Low Setting	304mm	304mm	304mm	304mm	304mm	304mm
Top Tube Length (Horizontal)	535mm	555mm	585mm	600mm	615mm	640mm
Head Tube Height	100mm	100mm	120mm	120mm	140mm	160mm
Head Tube Angle - Low Setting	70.5°	70.5°	70.5°	70.5°	70.5°	70.5°
Seat Tube Angle (Actual) - Low Setting	73°	73°	73°	73°	73°	73°
Top Tube Length (Actual)	530mm	537mm	563mm	575mm	590mm	615mm
Seat Tube Length - Center to Top	343mm	394mm	432mm	457mm	483mm	533mm
Wheel Base	1013mm	1033mm	1064mm	1079mm	1095mm	1121mm
Standover Height	695mm	728mm	759mm	773mm	796mm	832mm
Chainstay Length	424mm	424mm	424mm	424mm	424mm	424mm
Crank Length	170mm	170mm	175mm	175mm	175mm	175mm
Handlebar Width	600mm	600mm	600mm	600mm	600mm	600mm
Stem Length	75mm	75mm	90mm	105mm	105mm	120mm
Seatpost Length	350mm	350mm	350mm	350mm	400mm	400mm
