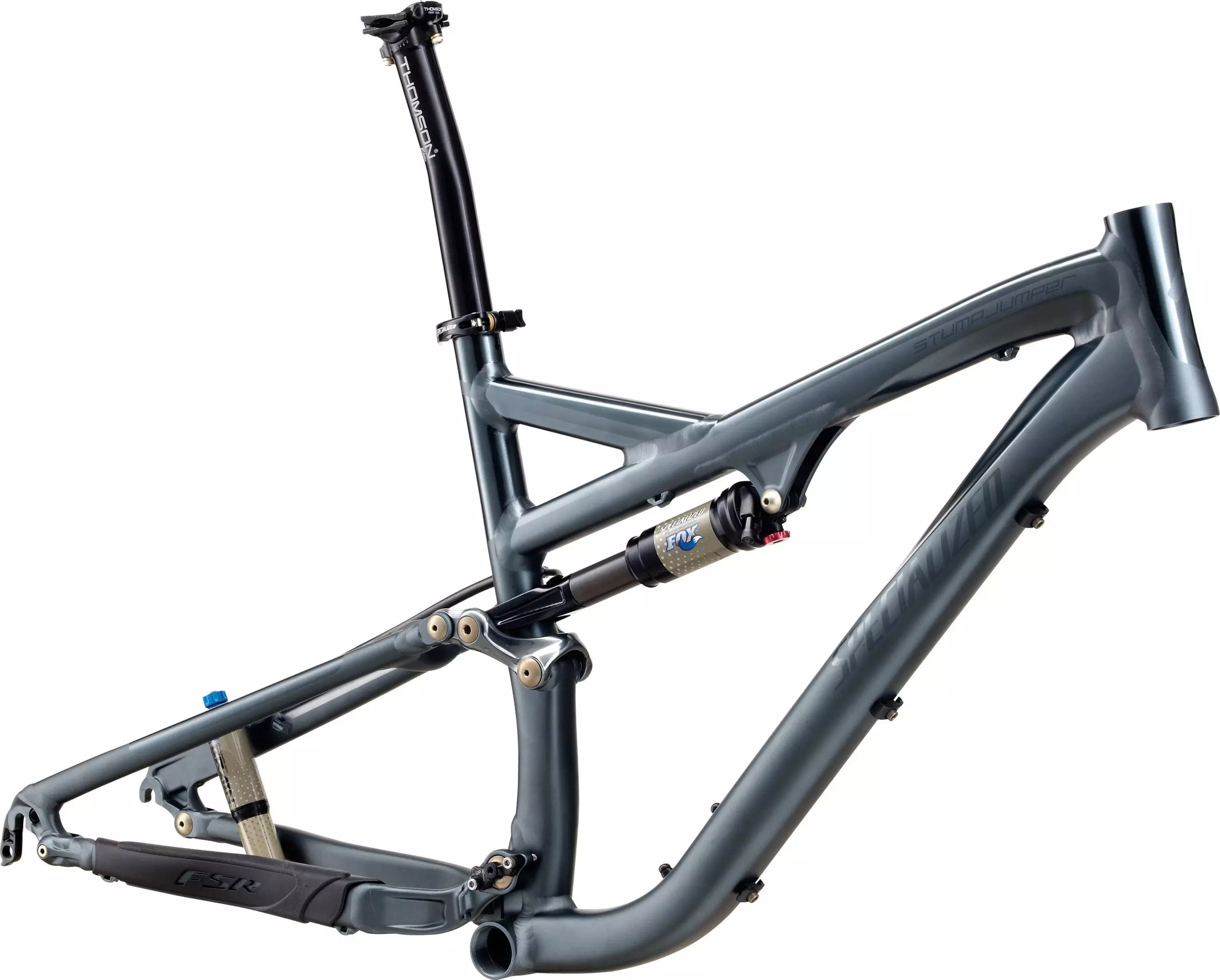

2011 Stumpjumper FSR M5 Frame

0 Reviews

Start with the proven M5 frame, add your parts of choice, and hit the trail with…

Product Details

Start with the proven M5 frame, add your parts of choice, and hit the trail with the bike you made your own.

M5 manipulated alloy frame with 140mm of travel, aluminum rocker link, and sealed cartridge bearing pivots turns rock gardens into Zen gardens
Specialized/Fox Brain rear shock with Brain Fade, remote Trail Tune inertia valve, and adjustable rebound lets riders dial in the perfect blend of pedaling efficiency and bump compliance

Technical Specifications

FRAMESET

FRAME

M5 manipulated alloy w/ ORE TT/DT, sealed cartridge bearing pivots, replaceable derailleur hanger, 140mm travel

HEADSET

1 1/8"" upper and lower campy style cartridge bearings for integrated alloy HT

SEAT BINDER

34.9mm clamp ID, 7050 hard annodized alloy collar w/ QR, black

SUSPENSION

REAR SHOCK

Specialized/Fox Brain Shock w/ remote Trail Tune inertia valve, Brain Fade and rebound adj., 7.75x1.9"", integrated cartridge bearing shock mount

COCKPIT

SEATPOST

Thomson Elite Setback w/ 12 degree clamp, S/M: 367mm L/XL:410mm

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	S	M	L	XL	XXL
Ground-Top	900mm	919mm	929mm	938mm	938mm
Bottom Bracket Height - Low Setting	335mm	335mm	335mm	335mm	335mm
Top Tube Length (Horizontal)	556mm	587mm	617mm	642mm	665mm
Head Tube Height	118mm	138mm	148mm	158mm	158mm
Head Tube Angle - Low Setting	68.5°	68.5°	68.5°	68.5°	68.5°
Seat Tube Angle (Actual) - Low Setting	70.5°	70.5°	70.5°	70.5°	70.5°
Seat Tube Angle (Effective) - Low Setting	74.5°	74.5°	74.5°	74.5°	74.5°
Top Tube Length (Actual)	523mm	555mm	583mm	608mm	627mm
Seat Tube Length - Center to Top	406mm	445mm	483mm	533mm	584mm
Wheel Base	1083mm	1116mm	1147mm	1173mm	1196mm
Standover Height	741mm	746mm	753mm	766mm	770mm
Stack	565mm	584mm	594mm	603mm	603mm
Reach	398mm	424mm	452mm	474mm	497mm
Chainstay Length	420mm	420mm	420mm	420mm	420mm
Crank Length	170mm	175mm	175mm	175mm	175mm
Handlebar Width	660mm	660mm	660mm	660mm	660mm
Stem Length	60mm	75mm	90mm	105mm	105mm
Seatpost Length	350mm	350mm	400mm	400mm	400mm
