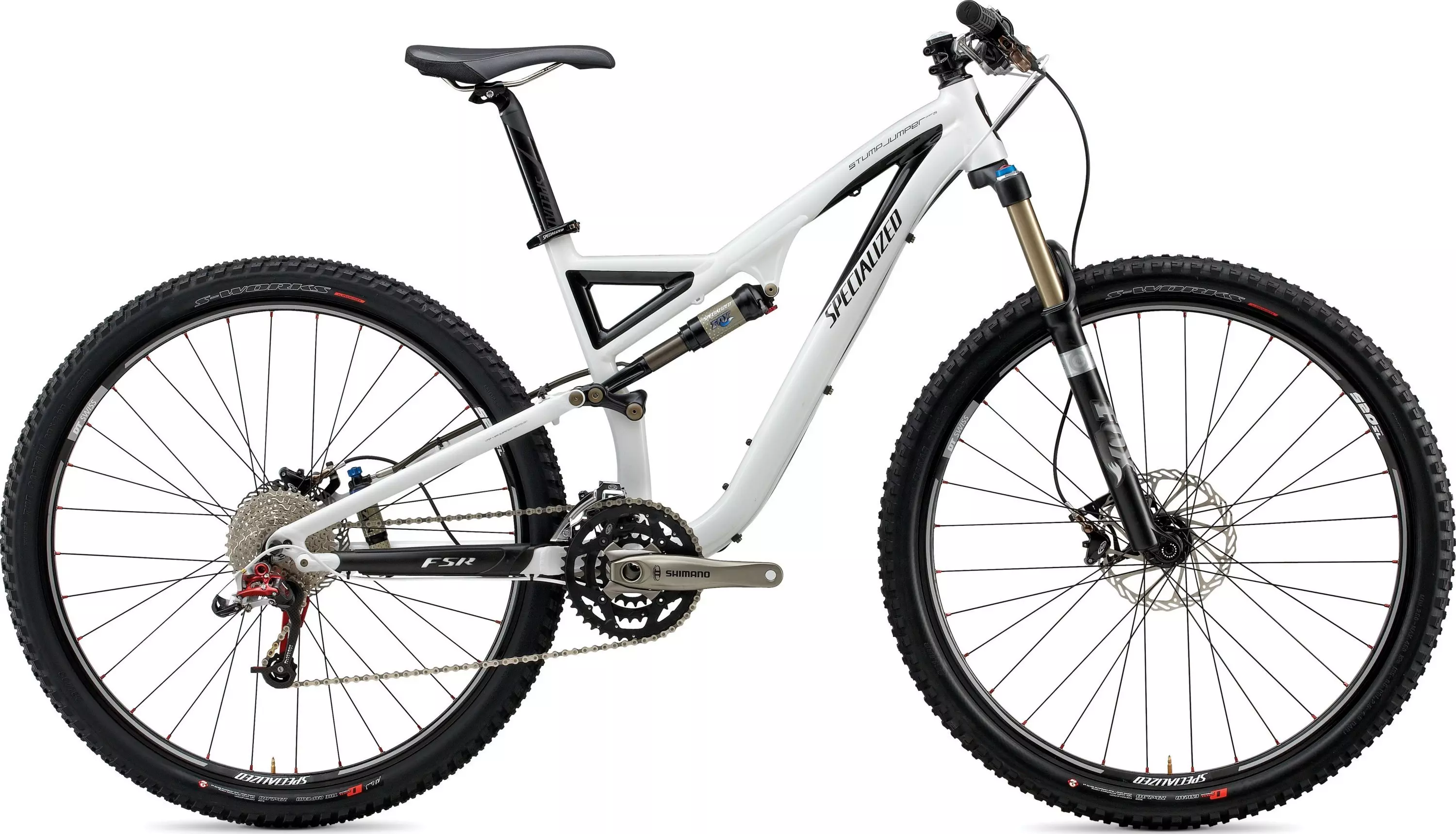

2010 Stumpjumper FSR Expert 29

0 Reviews

Evolving from a 25-year legacy, the Stumpjumper® FSR is absolutely the best breed…

Product Details

Evolving from a 25-year legacy, the Stumpjumper® FSR is absolutely the best breed of XC Trail bike—it's the anything and everything, 'make you an addict if you weren't one already' full-suspension mountain bike with miles upon miles of trail-tuned flow. The new lighter, stiffer and more capable 26" alloy and carbon models and all-new 29" alloy model only solidify the Stumpjumper's place as the most well-rounded mountain bike available. See the Stumpjumper FSR in action with the Stumpjumper Trail Crew.

DT Swiss X520SL 26mm-wide 29" rims are strong enough to handle complex singletrack yet light enough to make the climb out effortless
Specialized/Fox AFR Brain rear shock with Brain Fade and adjustable rebound dials in the perfect blend of pedaling efficiency and bump compliance
Legendary Fox quality in a 29" package, the F29RL with the 15QR thru-axle system, lockout, compression and rebound adjuster blazes through trails with ease
Redesigned Stumpjumper FSR 29er frame with 130mm of travel means rock gardens disappear under the manipulated M5 frame with an aluminum link and sealed cartridge bearing pivots
Hi Lo disc front hub partners with the Fox F29RL and 15QR thru-axle fork for rock solid front-end performance, with DT Swiss quality alloy free hub, 330SL rear hub and Competition stainless spokes

Technical Specifications

FRAMESET

FRAME

Stumpjumper FSR M5 manipulated alloy 29er frame, tapered integrated HT, sealed cartridge bearing pivots, replaceable derailleur hanger, 130mm travel

HEADSET

1-1/8 and 1.5"" Threadless, Campy style upper with 1.5"" lower cartridge bearing

SEAT BINDER

7050 hard annodized alloy collar w/ QR, 34.9mm clamp ID, black

SUSPENSION

REAR SHOCK

Specialized/Fox AFR Brain Shock w/ remote Trail Tune inertia valve, rebound adj. and Brain Fade, 7.875x1.8"" Integrated cartridge bearing shock mount.

FORK

Fox F29RL, 120mm, compression and rebound adj. w/ LO, tapered steerer, 15mm thru axle

WHEELS

FRONT TIRE

S-Works Eskar, 29x2.3"", 120 TPI, tubeless ready aramid bead, dual compound

REAR TIRE

Specialized The Captain Control, 29x2.0"", 60 TPI, tubeless ready aramid bead, dual compound

INNER TUBES

Ultralight presta valve

RIMS

Custom DT Swiss 520SL, 29"", 26mm wide, sleeved w/eyelets, 32h

FRONT HUB

Hi Lo disc, CNC flange, sealed cartridge bearing, 15mm DT RWS, alloy QR, 32h

REAR HUB

Custom DT Swiss 330SL w/ alloy freehub, DT RWS QR, 32h

SPOKES

DT Swiss Competition 1.8/1.6mm stainless

DRIVETRAIN

FRONT DERAILLEUR

Shimano M660 SLX, DMD, top swing, dual pull

REAR DERAILLEUR

SRAM X-0, 9-speed, long cage

SHIFT LEVERS

SRAM X-9 aluminum trigger

CASSETTE

Shimano HG61, 9-speed, 12-36t

CHAIN

SRAM PC-971, 9-speed w/Power Link

CRANKSET

Custom Shimano FC-M762 XT, 2pc., 175mm

BOTTOM BRACKET

Custom Shimano integrated

COCKPIT

STEM

3D forged alloy, adjustable rise, 31.8mm clamp

HANDLEBARS

Specialized XC flat, 2014 butted alloy, 680mm wide, 8 degree backsweep,

GRIPS

Specialized waffle lock on grip (M) Specialized Thick lock on grip (L/XL)

SADDLE

Specialized Format, hollow Cr-Mo rails, SL foam, M: 130mm L/XXL:143mm

SEATPOST

2014 butted alloy, single bolt setback, 30.9mm

BRAKES

FRONT BRAKE

Custom Avid Elixir CR SL, alloy backed semi-met pads, alloy Elixir CR lever w/ pad contact and reach adj, S/M: 185mm, L/XL: 203mm rotor

REAR BRAKE

Custom Avid Elixir CR SL, alloy backed semi-met pads, alloy Elixir CR lever w/ pad contact and reach adj, S/M: 160mm, L/XL: 185mm rotor

BRAKE LEVERS

Custom Avid Elixir CR SL Hydraulic, carbon lever blade, tool-less adj. reach and pad contact

ACCESSORIES

PEDALS

None

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	M	L	XXL	XL
Ground-Top	929mm	947mm	975mm	966mm
Bottom Bracket Height - Low Setting	338mm	338mm	338mm	338mm
Top Tube Length (Horizontal)	587mm	617mm	665mm	645mm
Head Tube Height	110mm	130mm	160mm	150mm
Head Tube Angle - Low Setting	69.5°	69.5°	69.5°	69.5°
Seat Tube Angle (Actual) - Low Setting	70.5°	70.5°	70.5°	70.5°
Seat Tube Angle (Effective) - Low Setting	74.5°	74.5°	74.5°	74.5°
Top Tube Length (Actual)	556mm	587mm	632mm	616mm
Seat Tube Length - Center to Top	445mm	483mm	584mm	533mm
Wheel Base	1124mm	1156mm	1205mm	1185mm
Standover Height	746mm	762mm	763mm	769mm
Stack	591mm	609mm	637mm	628mm
Reach	426mm	451mm	493mm	473mm
Chainstay Length	449mm	449mm	449mm	449mm
Crank Length	175mm	175mm	175mm	175mm
Handlebar Width	680mm	680mm	680mm	680mm
Stem Length	75mm	105mm	90mm	105mm
Seatpost Length	350mm	400mm	400mm	400mm
