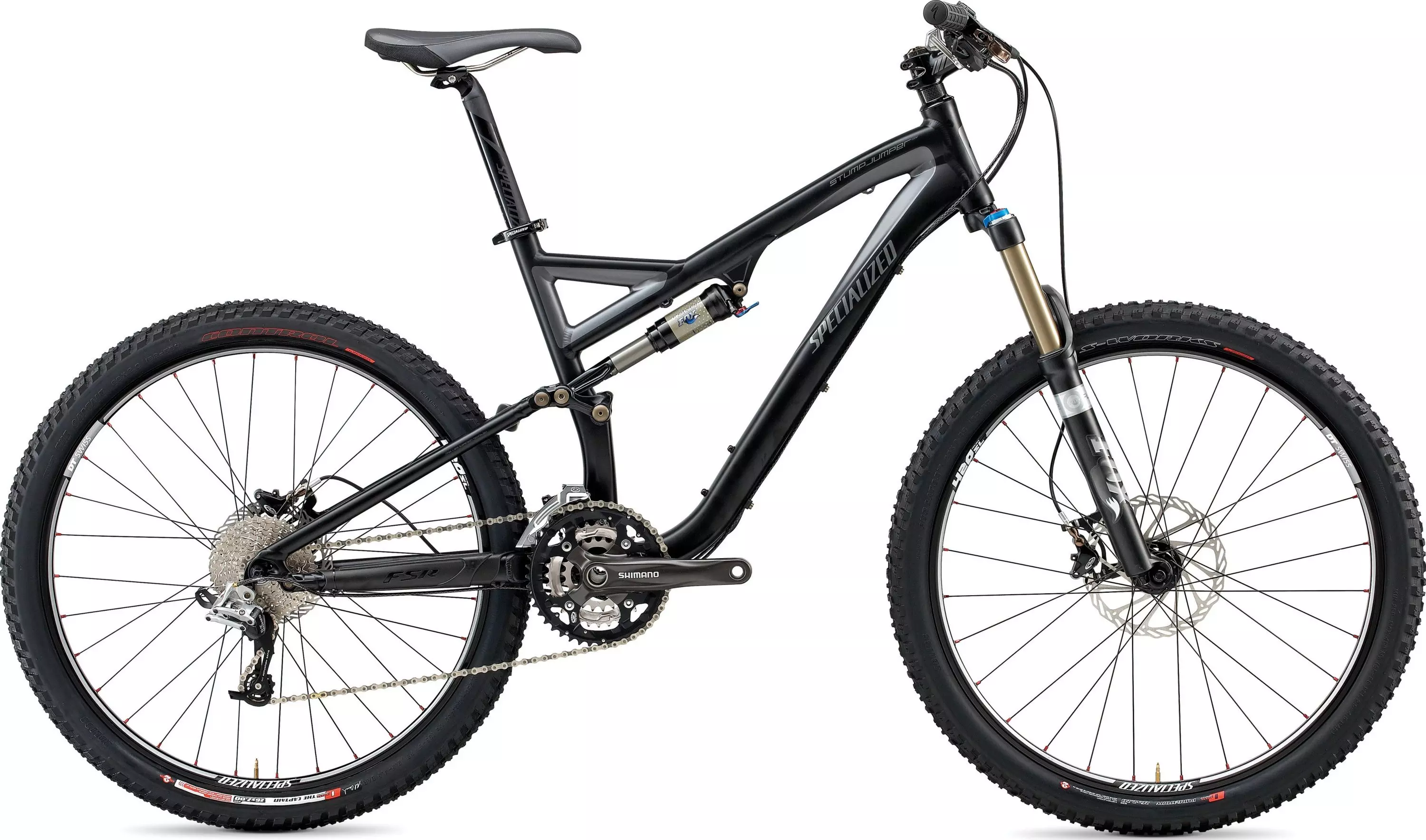

2010 Stumpjumper FSR Comp
4.3
3 Reviews
Make the most of any trail on the most versatile trail bike around. When Ned…
Product Details
Make the most of any trail on the most versatile trail bike around. When Ned Overend became a member of the Specialized family in 1989, he was signed on to lead Team Stumpjumper. "Riding for Specialized has been incredible because they've always made sure we have every technological advantage possible," says Ned, who spends much of his time developing new products like the AFR Shock Brain shock with Brain Fade found on the new Stumpjumper FSR. See the Stumpjumper FSR in action with the Stumpjumper Trail Crew. Read all about Total Suspension Integration. (Adobe PDF, 3MB) .
Custom Fox Triad rear shock with 3-position adjustment locks out for the climb, opens for the drop and ProPedal for efficient pedaling in between
DT Swiss X420SL 24mm-wide rims are sturdy and lightweight, strong enough to handle complex singletrack yet light enough to make the climb out effortless
Avid Elixir R SL hydraulic brakes/levers with tool-free reach adjust and long-lasting semi-metallic pads halt bombing runs with superb control and modulation
S-Works Purgatory 26x2.2" 2Bliss front tire is aggressive for varied terrain and The Captain Control 2.0" rear tire rolls fast with formidable side knob for bite when sledding through turns
Technical Specifications
FRAMESET
FRAME
Stumpjumper FSR M5 manipulated alloy frame, sealed cartridge bearing pivots, replaceable derailleur hanger, 140mm travel
HEADSET
Campy style cartridge bearings for integrated alloy HT
SEAT BINDER
7050 hard annodized alloy collar w/ QR, 34.9mm clamp ID, black
SUSPENSION
REAR SHOCK
Fox Triad, custom on-the-fly 3-position switch 1) lock out 2) Open 3) ProPedal pedal assisting damping, rebound adj., 7.875x1.9"", integrated cartridge bearing yoke mount
FORK
Fox Float 130 RL, 130mm travel, compression and rebound adj. w/ LO, alloy steerer
WHEELS
FRONT HUB
Hi Lo disc, CNC flange, sealed cartridge bearing, 9mm DT RWS, alloy QR, 28h
REAR HUB
Custom Shimano M525 SL, alloy QR, 32h
SPOKES
DT Swiss 1.8mm stainless
FRONT TIRE
S-Works Purgatory, 26x2.2"", 120 TPI, tubeless ready aramid bead, dual compound
REAR TIRE
The Captain Control, 26x2.0"", 60 TPI, tubeless ready aramid bead, dual compound
INNER TUBES
Ultralight presta valve
RIMS
Custom DT Swiss X420SL, 24mm w/ eyelets, 28/32h
DRIVETRAIN
FRONT DERAILLEUR
Shimano M660 SLX, DMD, top swing, dual pull
REAR DERAILLEUR
SRAM X-9, 9-speed, long cage
SHIFT LEVERS
SRAM X-7, aluminum trigger
CASSETTE
Shimano HG61, 9-speed, 11-34t
CHAIN
SRAM PC-971, 9-speed w/Power Link
CRANKSET
Custom Shimano FC-M542, S: 170mm, others: 175mm
BOTTOM BRACKET
Custom Shimano integrated
COCKPIT
SEATPOST
2014 butted alloy, single bolt setback, 30.9mm
STEM
3D forged alloy, adjustable rise, 31.8mm clamp
HANDLEBARS
Specialized XC low rise bar, butted 7050 alloy, 31.8mm, 660mm wide, 8 degree back sweep, 6 degree up
GRIPS
Specialized waffle lock on grip (S/M) Specialized Thick lock on grip (L/XL)
SADDLE
Specialized Format, hollow Cr-Mo rails, SL foam, S/M: 130mm L/XL:143mm
BRAKES
FRONT BRAKE
Custom Avid Elixir R SL, alloy backed semi-met pads, S/M: 185mm, L/XL: 200mm rotor
REAR BRAKE
Custom Avid Elixir R SL, alloy backed semi-met pads, S/M: 160mm, L/XL: 185mm rotor
BRAKE LEVERS
Custom Avid Elixir R SL Hydraulic, tool-less adj. reach
ACCESSORIES
PEDALS
None
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | XL | XXL | |
|---|---|---|---|---|---|
| Ground-Top | 900mm | 919mm | 929mm | 938mm | 938mm |
| Bottom Bracket Height - Low Setting | 335mm | 335mm | 335mm | 335mm | 335mm |
| Top Tube Length (Horizontal) | 556mm | 587mm | 617mm | 642mm | 665mm |
| Head Tube Height | 118mm | 138mm | 148mm | 158mm | 158mm |
| Head Tube Angle - Low Setting | 68.5° | 68.5° | 68.5° | 68.5° | 68.5° |
| Seat Tube Angle (Actual) - Low Setting | 70.5° | 70.5° | 70.5° | 70.5° | 70.5° |
| Seat Tube Angle (Effective) - Low Setting | 74.5° | 74.5° | 74.5° | 74.5° | 74.5° |
| Top Tube Length (Actual) | 523mm | 555mm | 583mm | 608mm | 627mm |
| Seat Tube Length - Center to Top | 406mm | 445mm | 483mm | 533mm | 584mm |
| Wheel Base | 1083mm | 1116mm | 1147mm | 1173mm | 1196mm |
| Standover Height | 741mm | 746mm | 753mm | 766mm | 770mm |
| Stack | 565mm | 584mm | 594mm | 603mm | 603mm |
| Reach | 398mm | 424mm | 452mm | 474mm | 497mm |
| Chainstay Length | 420mm | 420mm | 420mm | 420mm | 420mm |
| Crank Length | 170mm | 175mm | 175mm | 175mm | 175mm |
| Handlebar Width | 660mm | 660mm | 660mm | 660mm | 660mm |
| Stem Length | 60mm | 75mm | 90mm | 105mm | 105mm |
| Seatpost Length | 350mm | 350mm | 400mm | 400mm | 400mm |
