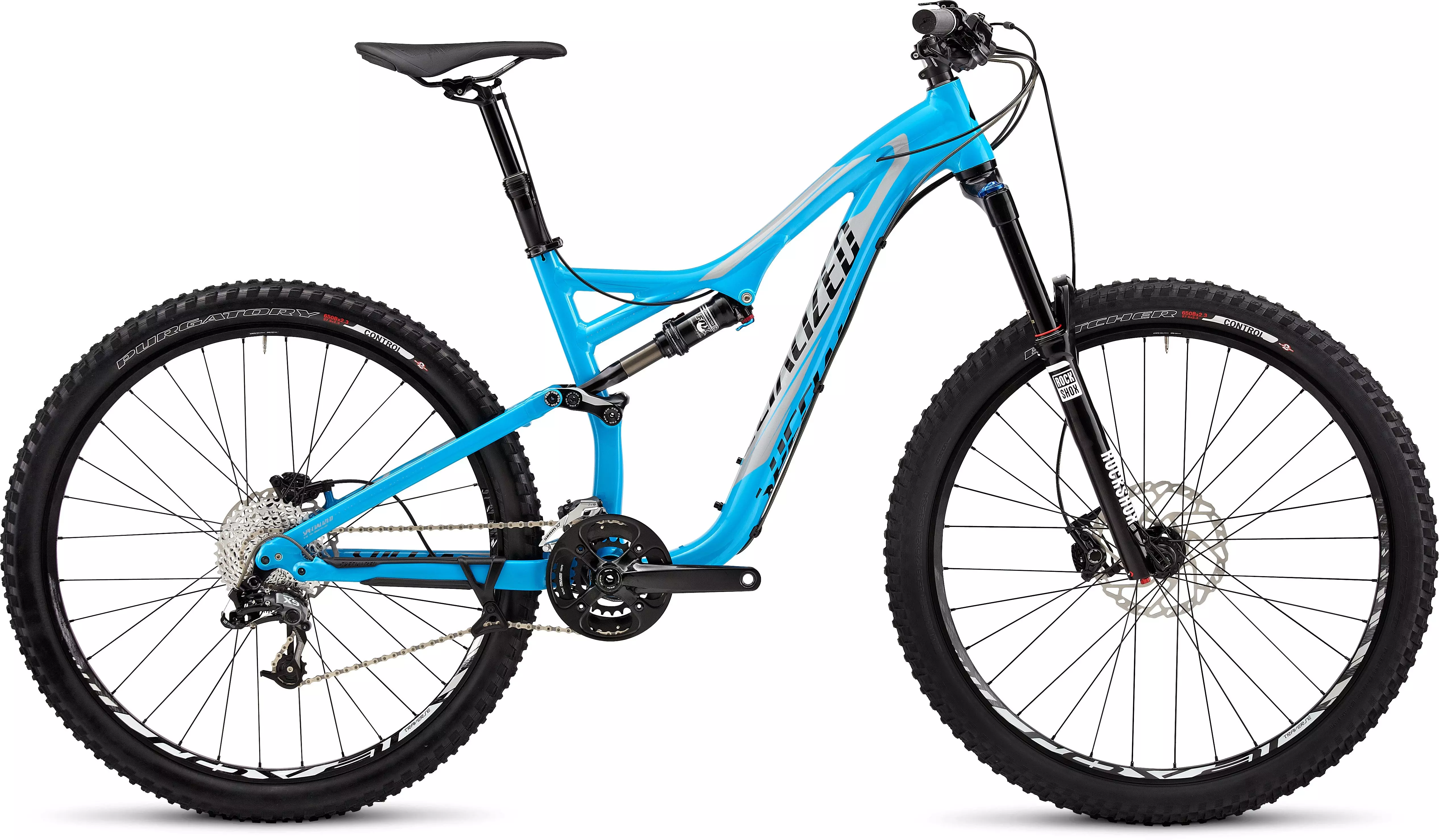

2015 Stumpjumper FSR Comp EVO 650b
4.7
3 Reviews
The M5 aluminum Stumpjumper FSR Comp EVO is purpose-built for the aggressive trail…
Product Details
The M5 aluminum Stumpjumper FSR Comp EVO is purpose-built for the aggressive trail rider. It separates itself from the "regular" Stumpjumpers with a slacker head angle and 150mm of front and rear travel. The Comp EVO features a custom FOX CTD Evolution rear shock with AUTOSAG, RockShox Revelation RC fork, and a 2.3" Specialized Butcher Control and Slaughter Control tire combination.
SRAM X9 Type 2, 10-speed rear derailleur for quiet, precise trail shifting
SRAM X7, 10-speed, trigger for precise shifting and reliability
Shimano Deore disc brakes for dialed modulation and stopping power
M5 alloy EVO 650b frame w/ 150mm of smooth FSR travel for charging technical singletrack
Custom FOX Float CTD Evolution shock w/ AUTOSAG, Climb, Trail, Descend tunes for total control
Roval 650b rims mated to Specialized Hi Lo hubs for increased stiffness and confident riding
Specialized Command Post BlackLite w/ remote adjusts saddle height on-the-fly
RockShox Revelation RC 150mm fork w/ 15mm thru-axle ideal for ripping technical descents
Specialized All-Mountain alloy bar is 750mm wide for stable handling on rough terrain
Specialized Butcher Control 2.3" tire features a DH-inspired tread for rough singletrack
Specialized Slaughter Control, 2Bliss Ready, 2.3" tire for fast-rolling performance with bite
Technical Specifications
FRAMESET
FRAME
M5 hydroformed tubing, EVO 650b geometry, tapered headtube, PF30 BB, ISCG ’05, Command Post BlackLite routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm travel
HEADSET
1-1/8 and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings
SEAT BINDER
Command Post, single bolt, 34.9mm
SUSPENSION
REAR SHOCK
Custom FOX Float CTD Evolution w/ AUTOSAG, Climb, Trail, Descend settings and rebound adj., 195x51mm
FORK
Custom RockShox Revelation RC 650b, tapered alloy steerer, 3P damper w/ 3-position compression, rebound adj., 15mm thru-axle, 150mm travel
WHEELS
RIMS
Roval 650b, alloy disc, 24mm wide, 32h
FRONT HUB
Specialized Hi Lo disc, sealed cartridge bearings, 15mm thru-axle, 32h
REAR HUB
Specialized Hi Lo disc, 4 sealed cartridge bearings, 12mm thru-axle, 32h
SPOKES
DT Swiss Industry, stainless
DRIVETRAIN
FRONT DERAILLEUR
SRAM X7, 10-speed, S3 direct mount for DMD, bottom pull
REAR DERAILLEUR
SRAM X9 Type 2, 10-speed, mid cage
SHIFT LEVERS
SRAM X7, 10-speed, w/ MatchMaker clamp
CASSETTE
SRAM PG 1030, 10-speed, 11-36
CHAIN
SRAM PC 1031, 10-speed, w/ PowerLink, nickel finish
CRANKSET
Custom SRAM S-1250, 7050 alloy arms, 10-speed Trail double, PF30 spindle, 36/22, 104/64mm BCD spider
CHAINRINGS
36/24
BOTTOM BRACKET
SRAM, PF30, OS press-in bearings, sealed cartridge
COCKPIT
STEM
Specialized XC, 3D forged alloy, 4-bolt, 6-degree rise
HANDLEBARS
Specialized All-Mountain, low-rise, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 31.8mm
GRIPS
Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, Others: XL
SADDLE
Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm
SEATPOST
Command Post BlackLite, alien head design, single bolt head, w/ remote adjust lever, 30.9mm, S: 100mm travel, Others: 125mm
BRAKES
FRONT BRAKE
Shimano Deore BR-M615, hydraulic disc, Ice Tech pads, S/M: 180mm rotor, Others: 200mm
REAR BRAKE
Shimano Deore BR-M615, hydraulic disc, Ice Tech pads, S/M: 160mm rotor, Others: 180mm
BRAKE LEVERS
Shimano Deore BL-M615, hydraulic, alloy lever
ACCESSORIES
PEDALS
Resin test ride, w/ toe clips, CEN std.
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Top Tube Length (Horizontal) | 568mm | 595mm | 620mm | 643mm |
| Seat Tube Angle (Effective) | 74° | 74° | 74° | 74° |
| Head Tube Height | 100mm | 110mm | 135mm | 155mm |
| Top Tube Length (Actual) | 530mm | 555mm | 579mm | 603mm |
| Seat Tube Angle (Actual) | 68.4° | 68.8° | 69.2° | 69.7° |
| Seat Tube Length - Center to Top | 396mm | 430mm | 468mm | 523mm |
| Bottom Bracket Height | 327mm | 327mm | 327mm | 327mm |
| Wheel Base | 1107mm | 1137mm | 1165mm | 1193mm |
| Standover Height | 738mm | 729mm | 738mm | 754mm |
| Stack | 602mm | 619mm | 642mm | 661mm |
| Reach | 401mm | 426mm | 445mm | 467mm |
| Head Tube Angle | 68° | 68° | 68° | 68° |
| Chainstay Length | 435mm | 435mm | 435mm | 435mm |
| Crank Length | 170mm | 175mm | 175mm | 175mm |
| Handlebar Width | 750mm | 750mm | 750mm | 750mm |
| Stem Length | 60mm | 60mm | 75mm | 75mm |
| Seatpost Length | 380mm | 430mm | 430mm | 430mm |
