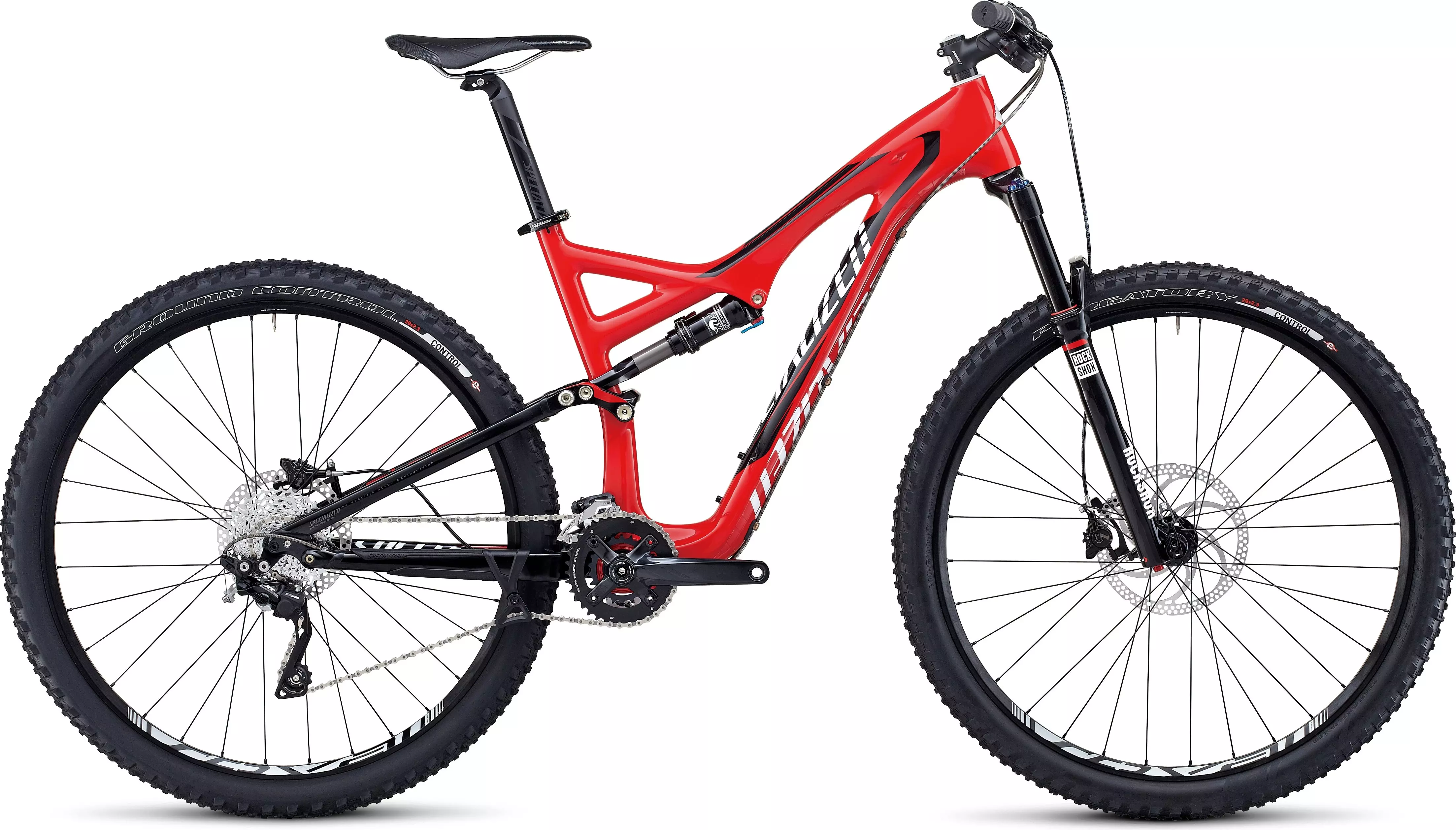

2014 Stumpjumper FSR Comp Carbon 29
0 Reviews
The FACT carbon Stumpjumper FSR Comp Carbon 29 has 130mm of plush FSR suspension,…
Product Details
The FACT carbon Stumpjumper FSR Comp Carbon 29 has 130mm of plush FSR suspension, a RockShox Revelation RC3 fork, custom Formula C1 hydraulic disc brakes, Fox Float CTD Evolution shock with AUTOSAG and a Roval 142+ wheelset.
Custom SRAM S-1250 10-speed Trail double-ring shifts fast while the PF30 spindle makes for an efficient and stiff crankset
Hot, new asymmetrical graphic on the FACT 9m carbon FSR frame with dedicated 29 geometry, 130mm of travel, full-cartridge bearing pivots, PF30 BB, and 142mm dropouts makes it the most versatile trail 29er out there
FOX Float CTD Evolution shock with ground-breaking proprietary Specialized AUTOSAG features 3 compression settings: Climb, Trail, and Descend, and rebound adjust
Roval 29 rims mated to Specialized Hi Lo hubs, 142mm rear hub spacing, and 12mm thru-axle increase wheel stiffness for more confident riding
RockShox Revelation RC3 130mm fork has a tapered steerer, 15mm thru-axle, 3-position damper: open, medium, and firm, rebound adjust, and lockout make for a lightweight trail bike capable of ripping technical descents
Custom Formula C1 brakes provide great braking power and modulation, while Specialized Purgatory and Ground Control tires maintain fast-rolling traction
Technical Specifications
FRAMESET
FRAME
FACT 9m carbon front triangle, 29"" geometry, FACT IS construction, M5 alloy rear triangle, tapered headtube, carbon PF30 BB, ISCG ’05, internal Command Post IR routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 130mm travel
SWAT
Bottle cage w/ SWAT Technology compatible (not included)
HEADSET
1-1/8 and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings
SEAT BINDER
Specialized 7050 hard anodized alloy, QR, 34.9mm
SUSPENSION
REAR SHOCK
Custom FOX Float CTD Evolution w/ AUTOSAG, Climb, Trail, Descend settings and reb adj., 195x48mm
FORK
Custom RockShox Revelation 29 RC3, damper, tapered alloy steerer, 3-position compression and reb adj., 15mm thru-axle, 130mm travel
WHEELS
RIMS
Roval 29, alloy disc, 21mm internal width, 32h
FRONT HUB
Specialized Hi Lo disc, sealed cartridge bearings, 15mm thru-axle, 32h
REAR HUB
Specialized Hi Lo disc, 4x-sealed cartridge bearings, 12mm thru-axle, 142mm spacing, 32h
SPOKES
DT Industry Stainless, 3X front/rear 2.0mm
FRONT TIRE
Specialized Purgatory Control, 2Bliss Ready, 29x2.3"", foldable aramid bead, dual-compound, 60TPI
REAR TIRE
Specialized Ground Control, 2Bliss Ready, 29x2.3"", foldable aramid bead, 60 TPI
DRIVETRAIN
FRONT DERAILLEUR
SRAM X7, 10-speed, S3 direct mount for DMD, bottom pull
REAR DERAILLEUR
Shimano XT Shadow Plus, 10-speed, SGS long cage
SHIFT LEVERS
Shimano SLX, 10-speed, trigger
CASSETTE
SRAM PG-1030, 10-speed, 11-36
CHAIN
SRAM PC 1031, 10-speed, PowerLink
CRANKSET
Custom SRAM S-1250, 10-speed Trail double, PF30 spindle, S: 170mm, Others: 175mm
CHAINRINGS
36/22, w/ alloy guard
BOTTOM BRACKET
SRAM PF30, OS press-in bearings, sealed cartridge
COCKPIT
SADDLE
Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm
SEATPOST
Specialized 2014 butted alloy, single bolt setback, 30.9mm, S/M: 350mm, Others: 400mm
STEM
Specialized Trail, 6061 alloy, 4-bolt, 6-degree rise, 31.8mm clamp
HANDLEBARS
Specialized XC Mini-Riser, 6000 butted alloy, 720mm wide, 10mm rise, 8-degree backsweep, 6-degree upsweep, 31.8mm
GRIPS
Specialized Sip Grip, light lock-on, half-waffle aramid-infused, S/M: regular, Others: XL thickness
BRAKES
FRONT BRAKE
Formula C1, alloy caliper, metallic pad, S/M: 180mm, L/XL: 200mm rotor
REAR BRAKE
Formula C1, alloy caliper, metallic pad, S/M: 160mm, L/XL: 180mm rotor
BRAKE LEVERS
Formula C1, hydraulic disc, tooled reach adj.
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Seat Tube Length, Center to Top | 396mm | 430mm | 468mm | 523mm |
| Top Tube Length, Actual | 576mm | 603mm | 632mm | 660mm |
| Bottom Bracket Drop | 34mm | 34mm | 34mm | 34mm |
| Bottom Bracket Height | 338mm | 338mm | 338mm | 338mm |
| Seat Tube Angle, Actual | 69° | 69.4° | 69.8° | 70.3° |
| Seat Tube Angle, Effective | 74.5° | 74.5° | 74.5° | 74.5° |
| Wheel Base | 1117mm | 1147mm | 1175mm | 1203mm |
| Standover Height | 750mm | 741mm | 750mm | 764mm |
| Stack | 605mm | 614mm | 638mm | 656mm |
| Reach | 399mm | 427mm | 445mm | 466mm |
| Head Tube Length | 90mm | 100mm | 125mm | 145mm |
| Head Tube Angle | 69° | 69° | 69° | 69° |
| Chainstay Length | 450mm | 450mm | 450mm | 450mm |
| Top Tube Length, Horizontal | 567mm | 596mm | 622mm | 648mm |
| Crank Length | 170mm | 175mm | 175mm | 175mm |
| Handlebar Width | 720mm | 720mm | 720mm | 720mm |
| Stem Length | 60mm | 75mm | 90mm | 90mm |
| Seatpost Length | 380mm | 425mm | 425mm | 425mm |
