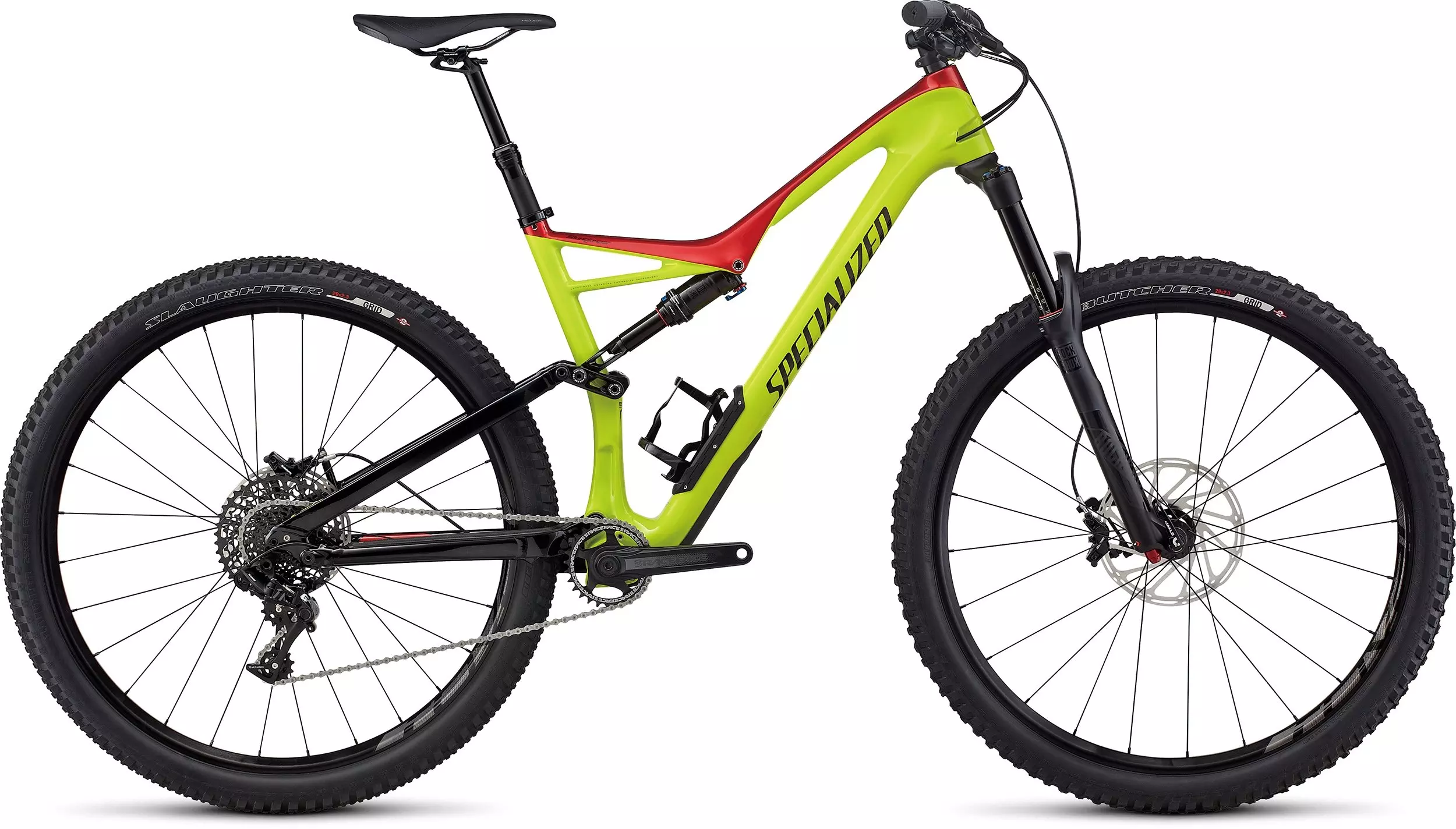

2017 Stumpjumper FSR Comp Carbon 29

0 Reviews

Riding trail requires a bike that can do it all with ease, take some hits, and be…

Product Details

Riding trail requires a bike that can do it all with ease, take some hits, and be ready to come back for more. And when it comes to this, nothing outperforms our new Stumpjumper FSR Comp Carbon 29. It features a durable set of SRAM components, hand-selected to ensure that you get the most performance over rugged terrain possible. At the frame, you'll find our FACT 9m carbon fiber Trail chassis with an M5 alloy rear end that creates a lightweight, strong, and stiff construction. The carbon molding process also allowed us to revolutionize how you carry your trail essentials with the all-new SWAT™ Door found at the down tube. This compartment will fit a tube, a tool, and pump without rattling or compromising the structural integrity of the frame. And when you factor in our proprietary Rx Trail Tune at the shock, plus an aggressive, trail-eating geometry that features ridiculously short chainstays, a roomy top tube, a low bottom bracket, and a slacked out front end, you have a bike that's going to eat up the trail and ask for seconds.

FACT 9m carbon fiber Trail Chassis with Stumpjumper FSR M5 alloy rear end blends stiffness with light weight to form the pinnacle of efficiency, while 135mm of travel, fully enclosed cable routing, and integrated SWAT™ Door create exceptional handling and zero-hassle storage.
RockShox Yari fork features a 15x110mm Maxle Ultimate thru-axle, a Solo Air™ spring, and 150mm of plush travel to take on big hits and bumpy terrain with supreme speed and efficiency.
Roval Traverse 2Bliss Ready wheels provide a strong, stable platform that's built to deliver heaps of responsiveness, speed, and supreme handling.

Technical Specifications

FRAMESET

FRAME

FACT 9m, carbon front chassis, M5 alloy rear end, Trail Geometry, SWAT™ Door integration, PF30 BB, fully enclosed internal cable routing, ManFu link, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 135mm of travel

SEAT BINDER

Alloy, 34.9mm

SUSPENSION

REAR SHOCK

RockShox Monarch RT, Rx Trail Tune, AUTOSAG, rebound and 2-position compression adjust, 197x48mm

FORK

RockShox Yari 29/27.5+, Solo Air, rebound & compression adjust, 15x110mm Maxle Ultimate thru-axle, 150mm travel

WHEELS

RIMS

Roval Traverse 29, hookless alloy, 29mm inner width, 24/28h, tubeless ready

FRONT HUB

Specialized disc, alloy, sealed cartridge bearings,15x110mm thru-axle, 24h

REAR HUB

Specialized disc, alloy, sealed cartridge bearings, 12x148mm thru-axle, 28h

SPOKES

DT Swiss Industry, stainless, 3x, 2.0""

FRONT TIRE

Butcher, GRID casing, 29x2.3"", 60TPI, Aramid folding bead, 2Bliss Ready

REAR TIRE

Slaughter, GRID casing, 29x2.3"", 60TPI, Aramid folding bead, 2Bliss Ready

INNER TUBES

29x1.75/2.4"", 60mm Presta valve

DRIVETRAIN

REAR DERAILLEUR

SRAM GX, long cage, 11-speed

SHIFT LEVERS

SRAM GX, 11-speed, trigger

CASSETTE

SRAM XG-1150, 11-speed, 10-42t

CHAIN

SRAM PC-1110, 11-speed w/PowerLink

CRANKSET

RaceFace Aeffect, 6000-series alloy, 24mm spindle, 52mm chainline, 28T

COCKPIT

STEM

Specialized Trail, 3D forged alloy, 4-bolt, 6-degree rise

HANDLEBARS

Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 27mm rise, 750mm width

GRIPS

Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness

SADDLE

Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm

SEATPOST

Command Post IRcc, 12 position micro-height adjustable, alien head design, bottom mount cable routing, remote SRL lever, 30.9mm, S: 100mm, M/L/XL: 125mm travel

BRAKES

FRONT BRAKE

SRAM Guide R, hydraulic disc, organic pads, Guide S4 4-piston caliper, 200/180mm rotor

REAR BRAKE

SRAM Guide R, hydraulic disc, organic pads, Guide S4 4-piston caliper, 180/160mm rotor

ACCESSORIES

PEDALS

Resin Test Ride w/toe clips

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	S	M	L	XL
Crank Length	170MM	175MM	175MM	175MM
Handlebar Width	750mm	750mm	750mm	750mm
Stem Length	45mm	60mm	60mm	60mm
Saddle Width	143mm	143mm	143mm	143mm
Seatpost Length	390mm	430mm	430mm	430mm
Seat-Tube Angle	74°	74°	74°	74°
Head-Tube Length	95mm	95mm	125mm	145mm
Head-Tube Angle	67°	67°	67°	67°
Chain-Stay Length	437mm	437mm	437mm	437mm
Front-Center	687mm	714mm	744mm	777mm
B-B Drop	33mm	33mm	33mm	33mm
Bike Stand-Over Height	754mm	761mm	770mm	777mm
Fork Length (full)	560mm	560mm	560mm	560mm
Top-Tube Length (horizontal)	563mm	590mm	616mm	648mm
Seat-Tube Length	396mm	430mm	468mm	523mm
B-B Height (29x2.3")	338mm	338mm	338mm	338mm
B-B Height (650x3.0")	331mm	331mm	331mm	331mm
B-B Height (650x2.8")	325mm	325mm	325mm	325mm
Stack	618mm	618mm	646mm	664mm
Reach	386mm	413mm	431mm	457mm
Trail	96.5mm	96.5mm	96.5mm	96.5mm
Fork Rake/Offset	51mm	51mm	51mm	51mm
Wheelbase	1122mm	1149mm	1179mm	1212mm
