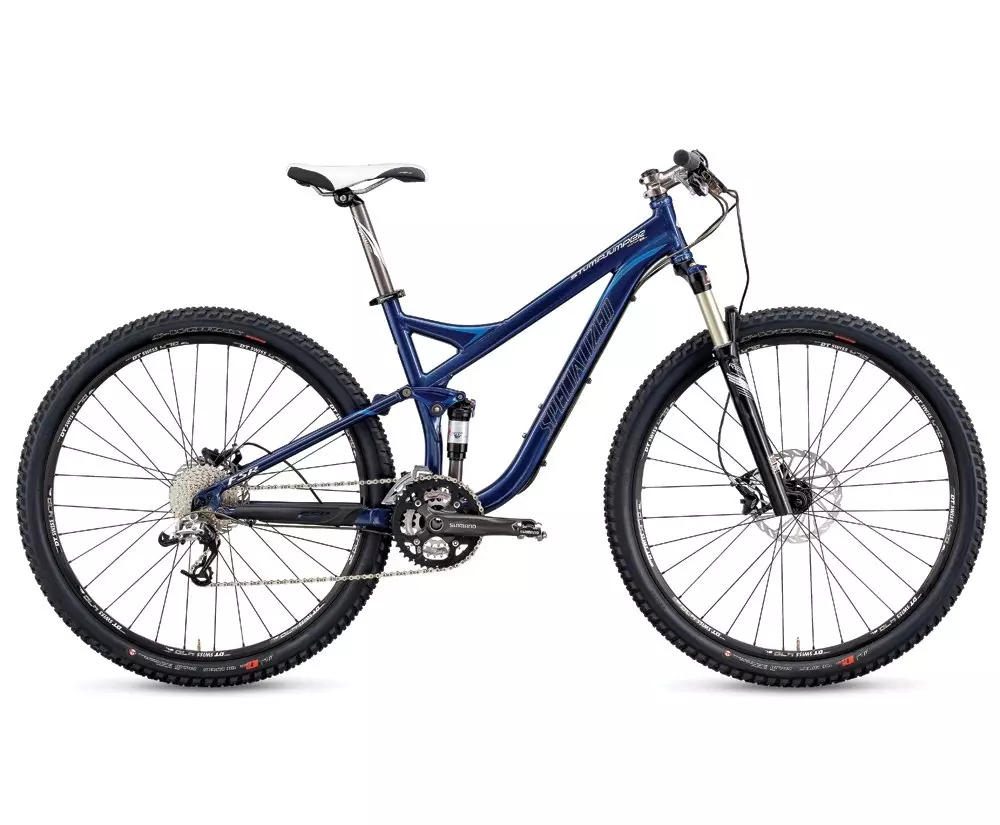

2009 Stumpjumper FSR Comp 29

0 Reviews

STILL GOING STRONG AFTER 25 YEARS, the Stumpjumper FSR is better known as the anything…

Product Details

STILL GOING STRONG AFTER 25 YEARS, the Stumpjumper FSR is better known as the anything and everything, 'make you an addict if you weren't one already' full suspension mountain bike with miles upon mile of trail-tuned flow.

Custom Avid Elixir hydraulic disc brakes offer excellent modulation thanks to organic pads, adjustable levers and size-specific rotors in a lightweight set up.
M5 fully manipulated alloy frame with ORE top/down tube for lightweight strength and efficiency and sealed cartridge-bearing pivots that rotate through 105mm of rear travel, no matter the conditions.
Specialized-exclusive DT Swiss 29" rims have a wide, stable 24mm cross-section and eyelets to improve long-term durability.
The Fox Triad rear shock is custom-tuned for the Stumpjumper to enable on-the-fly three-position damping with open, lockout and ProPedal settings, plus adjustable rebound.

Technical Specifications

FRAMESET

FRAME

Stumpjumper FSR M5 Manipulated Alloy frame w/ ORE TT/DT for 29"" wheel, sealed cartridge bearing pivots, DMD Direct Mount Der, replaceable derailleur hanger, disc only, 105mm travel

HEADSET

1-1/8"" Threadless, 10mm insertion alloy cups, sealed cartridge bearing

SEAT BINDER

7050 hard annodized alloy collar w/ QR, 34.9mm clamp ID, black

SUSPENSION

REAR SHOCK

Fox Triad, custom on-the-fly 3-position switch 1) lock out 2) Open 3) ProPedal pedal assisting damping, rebound adj., 7.25x1.5""

FORK

Reba SL 29er, 100mm, motion control damper, external rebound and internal floodgate adj. w/ LO, magnesium lowers, 32mm stancions

WHEELS

FRONT TIRE

S-Works The Captain, 29x2.2"", 120 TPI, Aramid bead, dual compound, tubeless ready

REAR TIRE

S-Works The Captain, 29x2.0"", 120 TPI, Aramid bead, dual compound, tubeless ready

INNER TUBES

Specialized Ultralight 29x2.0"", presta

RIMS

Custom DT Swiss X470, 29"", 24mm wide, sleeved w/eyelets, 32h

FRONT HUB

Specialized Hi Lo disc, CNC flange, sealed cartridge bearing, Oversized end caps, 9mm DT RWS, alloy QR, 28h

REAR HUB

Custom Shimano M525 SL, alloy QR, 32h

SPOKES

DT Swiss 1.8mm stainless, black, alloy nipples

DRIVETRAIN

FRONT DERAILLEUR

Shimano M660 SLX, DMD, top swing, dual pull

REAR DERAILLEUR

SRAM X-9, 9-speed, mid cage

SHIFT LEVERS

SRAM X-7, aluminum trigger, 9-speed

CASSETTE

Shimano HG61, 9-speed, 11-34t

CHAIN

SRAM PC-971, 9-speed w/Power Link

CRANKSET

Custom Shimano FC-M542, S: 170mm, others: 175mm

BOTTOM BRACKET

Custom Shimano FC-M542

COCKPIT

STEM

Specialized adjustable rise, 31.8mm clamp, 3D forged w/ CNC finish

HANDLEBARS

Specialized XC flat rise 31.8mm bar, 2014 butted alloy, 8 degree backsweep, 640mm wide

GRIPS

Specialized thin lock on grip (S/M) Specialized Thick lock on grip (L/XL/XXL)

SADDLE

Specialized Format, hollow Cr-Mo rails, SL foam, M: 130mm L/XL/XXL:143mm

SEATPOST

2014 butted alloy, single-bolt setback, 30.9x350/400mm

BRAKES

FRONT BRAKE

Custom Avid Elixir R SL, alloy backed organic pads, M: 185mm, L/XL/XXL: 203mm rotor

REAR BRAKE

Custom Avid Elixir R SL, alloy backed organic pads, S/M: 160mm, L/XL/XXL: 185mm rotor

BRAKE LEVERS

Custom Avid Elixir R SL Hydraulic, tool-less adj. reach

ACCESSORIES

PEDALS

None

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	M	L	XXL	XL
Bottom Bracket Height - Low Setting	328mm	328mm	328mm	328mm
Top Tube Length (Horizontal)	595mm	630mm	670mm	650mm
Head Tube Height	100mm	120mm	140mm	140mm
Head Tube Angle - Low Setting	69.5°	69.5°	69.5°	69.5°
Seat Tube Angle (Actual) - Low Setting	71°	71°	71°	71°
Seat Tube Angle (Effective) - Low Setting	74.5°	74.5°	74.5°	74.5°
Top Tube Length (Actual)	576mm	610mm	649mm	632mm
Seat Tube Length - Center to Top	445mm	483mm	584mm	533mm
Wheel Base	1129mm	1166mm	1208mm	1188mm
Standover Height	718mm	725mm	786mm	767mm
Chainstay Length	448mm	448mm	448mm	448mm
Crank Length	175mm	175mm	175mm	175mm
Handlebar Width	640mm	640mm	640mm	640mm
Stem Length	75mm	120mm	90mm	105mm
Seatpost Length	350mm	400mm	400mm	400mm
