2017 Stumpjumper FSR Comp 29
4.7
9 Reviews
Don't get us wrong—carbon fiber is awesome. But when it comes to maintaining piece…
Product Details
Don't get us wrong—carbon fiber is awesome. But when it comes to maintaining piece of mind while you're out getting rowdy on the trail, it's pretty damn hard to beat the confidence inspiring construction of an alloy frame like the Stumpjumper FSR Comp 29. It features an M5 alloy construction that's lightweight, durable, and plenty stiff and compliant, while a durable selection of components from SRAM that have been hand-selected to ensure that you get the most performance over rugged terrain possible. And when you factor in our proprietary Rx Trail Tune at the shock, plus an aggressive, trail-eating geometry that features absurdly short chainstays, a roomy top tube, a low bottom bracket, and a slacked out front end, you get a trail bike that you can be confident in, season after season.
M5 alloy Trail Chassis with Stumpjumper FSR rear end blends durability, stiffness, and light weight, while 135mm of travel Trail Geometry provide more than capable handling.
RockShox Revelation RL 29 fork features a 15mm Maxle Lite thru-axle and 150mm of plush travel to take on hits and bumpy terrain with more control and confidence.
Roval Traverse 29 wheels provide a strong, stable platform that's built to deliver heaps of responsiveness, speed, and supreme handling.
Technical Specifications
FRAMESET
FRAME
M5 alloy, Trail Geometry, PF30 BB, internal cable routing, ManFu link, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 135mm of travel
SEAT BINDER
Alloy, 34.9mm
SUSPENSION
REAR SHOCK
RockShox Monarch RT, Rx Trail Tune, AUTOSAG, rebound and 2-position compression adjust, 197x48mm
FORK
RockShox Revelation RL 29/27.5+, Solo Air spring, lockout and rebound adjust, 15x110mm Maxle Lite thru-axle, 51mm offset, 150mm travel
WHEELS
RIMS
Roval Traverse 29, hookless alloy, 29mm inner width, 24/28h, tubeless ready
FRONT HUB
Specialized disc, alloy, sealed cartridge bearings,15x110mm thru-axle, 24h
REAR HUB
Specialized disc, alloy, sealed cartridge bearings, 12x148mm thru-axle, 28h
SPOKES
DT Swiss Industry, stainless, 3x, 2.0""
FRONT TIRE
Butcher, GRID casing, 29x2.3"", 60TPI, Aramid folding bead, 2Bliss Ready
REAR TIRE
Slaughter, GRID casing, 29x2.3"", 60TPI, Aramid folding bead, 2Bliss Ready
INNER TUBES
29x1.75/2.4"", 60mm Presta valve
DRIVETRAIN
REAR DERAILLEUR
SRAM GX, long cage, 11-speed
SHIFT LEVERS
SRAM GX, 11-speed, trigger
CASSETTE
SRAM XG-1150, 11-speed, 10-42t
CHAIN
SRAM PC-1110, 11-speed w/PowerLink
CRANKSET
RaceFace Aeffect, 6000-series alloy, 24mm spindle, 52mm chainline, 28T
COCKPIT
STEM
Specialized Trail, 3D forged alloy, 4-bolt, 6-degree rise
HANDLEBARS
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 27mm rise, 750mm width
GRIPS
Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
SADDLE
Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm
SEATPOST
Command Post IRcc, 12 position micro-height adjustable, alien head design, bottom mount cable routing, remote SRL lever, 30.9mm, S: 100mm, M/L/XL: 125mm travel
BRAKES
FRONT BRAKE
SRAM Guide R, hydraulic disc, organic pads, Guide S4 4-piston caliper, 200/180mm rotor
REAR BRAKE
SRAM Guide R, hydraulic disc, organic pads, Guide S4 4-piston caliper, 180/160mm rotor
ACCESSORIES
PEDALS
Resin Test Ride w/toe clips
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

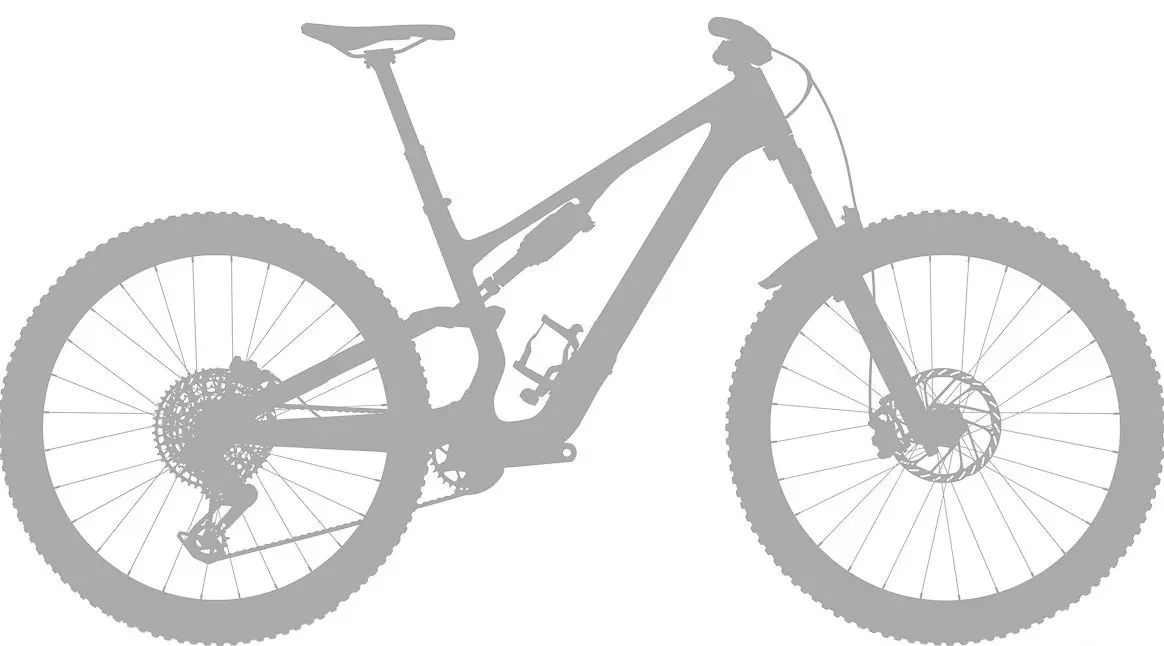

Geometry
| S | M | L | XL | XXL | |
|---|---|---|---|---|---|
| Crank Length | 170MM | 175MM | 175MM | 175MM | 175MM |
| Handlebar Width | 750mm | 750mm | 750mm | 750mm | 750mm |
| Stem Length | 45mm | 60mm | 60mm | 60mm | 60mm |
| Saddle Width | 143mm | 143mm | 143mm | 143mm | 143mm |
| Seatpost Length | 390mm | 430mm | 430mm | 430mm | 430mm |
| Seat-Tube Angle | 75° | 75° | 75° | 74° | 74° |
| Head-Tube Length | 95mm | 95mm | 125mm | 145mm | 170mm |
| Head-Tube Angle | 67.5° | 67.5° | 67.5° | 67.5° | 67.5° |
| Chain-Stay Length | 437mm | 437mm | 437mm | 437mm | 437mm |
| Front-Center | 680mm | 708mm | 738mm | 771mm | 797mm |
| B-B Drop | 36mm | 36mm | 36mm | 36mm | 36mm |
| Bike Stand-Over Height | 750mm | 757mm | 766mm | 776mm | 778mm |
| Fork Length (full) | 551mm | 551mm | 551mm | 551mm | 551mm |
| Top-Tube Length (horizontal) | 551mm | 582mm | 611mm | 647mm | 674mm |
| Seat-Tube Length | 396mm | 430mm | 468mm | 523mm | 564mm |
| B-B Height (29x2.3") | 338mm | 338mm | 338mm | 338mm | 338mm |
| B-B Height (650x3.0") | 331mm | 331mm | 331mm | 331mm | 331mm |
| B-B Height (650x2.8") | 325mm | 325mm | 325mm | 325mm | 325mm |
| Stack | 617mm | 617mm | 645mm | 663mm | 686mm |
| Reach | 389mm | 417mm | 435mm | 461mm | 477mm |
| Trail | 104mm | 104mm | 104mm | 104mm | 104mm |
| Fork Rake/Offset | 46mm | 46mm | 46mm | 46mm | 46mm |
| Wheelbase | 1115mm | 1143mm | 1172mm | 1206mm | 1232mm |
