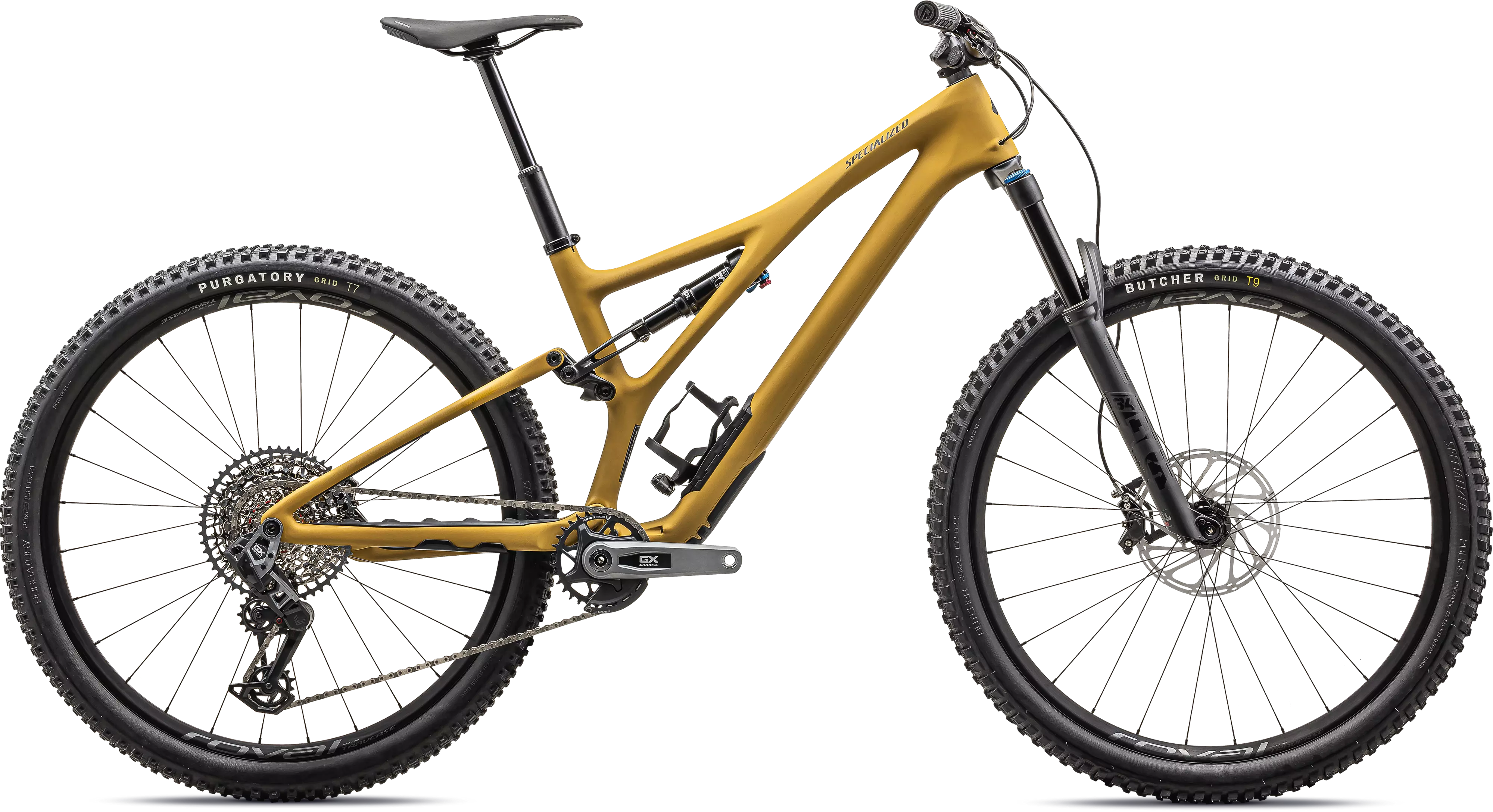

Stumpjumper Expert T-Type

4

1 Reviews

With the all-new Stumpjumper Expert, we've bottled up that "new bike day" feeling…

Delivery Icon

We deliver! Just say when and how.

How are carbon bikes made? Peter Denk talks Specialized Stumpjumper

Product Details

Add Icon

With the all-new Stumpjumper Expert, we've bottled up that "new bike day" feeling and put it into a radical new trail bike so agile, so lively, so in-tune with the trail, that it feels like an extension of your body. Levitate up the climbs. Decimate the descents. The Stumpjumper Expert is going to make you rethink how a trail bike should ride.

  • THE TRAIL BENCHMARK—When we set out to design the all-new Stumpjumper, we pursued some hefty goals. It had to excel on any kind of trail, for every style of rider. To achieve that, we went after serious weight reduction without sacrificing durability, a stiff, responsive chassis that still rides light and lively, geometry that improves everyone’s riding, and the best suspension kinematics we know how to design. Turns out, you can have your cake and eat it too with the new Stumpjumper.

  • THE SWEETEST 130MM OF TRAVEL YOU’LL EVER RIDE—We massaged the kinematics of the Stumpjumper suspension to bring out the very best all-round performance possible in a 130mm package. Countless hours of suspension lab development and field testing created a refined mid-travel ripper that eats big terrain like a gravity fed beast, handles like a dream everywhere, and climbs like it has a motor.

  • PROGRESSIVE GEOMETRY—The S-Sizing geometry of the new Stumpjumper hits the progressive sweet spot. It’s long, low and slack, with a short offset fork and a steeper seat tube angle. These numbers combine to make your ride more stable, more carvealicious, more comfortable climbing, more better everywhere. With FlipChip adjustability you’re able to further fine-tune your fit, ensuring that your new Stumpjumper performs flawlessly on whatever terrain you choose.

  • RIDER-FIRST ENGINEERED™—Rider-First Engineered™ frames use a size-specific approach to ride characteristics that ensures benchmark handling and flawless performance, regardless of frame or rider size. Whether you’re a jump-happy grom riding an S1, or a DH-fiend giant in need of the lengthy S6, you’ll experience the same ride traits – rail-sharp cornering and balanced front and rear stiffness – at the lightest-possible weight, And by light, we mean real light: 2,250 grams (S-Works, S-3 size, with rear shock).

  • SWAT™—We introduced the SWAT™ door on the Stumpjumper in 2016, adding room IN your frame for those “oh sh**t” necessities like pumps and spare tubes, and immediately rendering jersey pockets redundant.

Technical Specifications

Add Icon

Frameset

Frame

FACT 11m carbon chassis and rear-end, asymmetrical design, 29 Trail Geometry, SWAT™ Door integration, flip chip Head Tube/Bottom Bracket adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 130mm of travel

Seat Binder

Alloy, 38.6mm

Suspension

Rear Shock

FOX FLOAT DPS Performance Elite, Rx Trail Tune, EVOL Air sleeve, 3-position adjustment w/ Open Mode Adjustment, 190x45mm

Fork

FOX FLOAT 34 Performance Elite, GRIP2 damper, 15x110mm, 44mm offset, 140mm of travel

Brakes

Front Brake

SRAM Code Silver Stealth, 4-piston caliper, hydraulic disc, 200mm

Rear Brake

SRAM Code Silver Stealth, 4-piston caliper, hydraulic disc, 180mm

Drivetrain

Shift Levers

SRAM AXS POD Controller

Rear Derailleur

SRAM GX Eagle Transmission Derailleur

Cassette

SRAM GX Eagle Transmission Cassette, 12spd, 10-52t

Chain

SRAM GX Eagle Transmission Flattop Chain

Crankset

SRAM GX Eagle Crankset, Alloy, Integrated Guard, 55mm Chainline, S1:165mm, S2-S5: 170mm, S6: 175mm

Chainrings

32T

Bottom Bracket

SRAM DUB, BSA 73mm Wide, Threaded

Wheels & Tires

Rims

Roval Traverse 29 Alloy, 30mm inner width, hand-built, 2Bliss Ready

Front Hub

Roval, sealed cartridge bearings, 15x110mm spacing, 28h

Rear Hub

Roval DT Swiss 370, Ratchet LN, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h

Spokes

DT Swiss Competition Race

Front Tire

Butcher, GRID casing, GRIPTON® T9 compound, 29x2.3"

Rear Tire

Purgatory, GRID casing, GRIPTON® T7 compound, 29x2.3"

Inner Tubes

Standard, Presta valve

Cockpit

Stem

Alloy Trail Stem, 35mm bar bore

Handlebars

Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 30mm rise, 780mm, 35mm clamp

Grips

Deity Lockjaw

Saddle

Bridge Comp, Hollow Cr-mo rails, 155/143mm

SeatPost

OneUp, Dropper Post-V2, MMX lever, 34.9 (S1:120mm, S2/S3:150mm, S4: 180mm, S5/S6: 210mm)

Weight

Weight

13.37kg (29 lb, 7.6 oz)

Weight Size

S4

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
S1S2S3S4S5S6
Crank Length165mm170mm170mm170mm170mm175mm
Handlebar Width780mm780mm780mm780mm780mm780mm
Stem Length40mm40mm40mm40mm50mm50mm
Saddle Width155mm155mm143mm143mm143mm143mm
Seatpost Length120mm150mm150mm180mm210mm210mm
Stack (Low BB)614mm613mm622mm632mm641mm650mm
Stack (High BB)610mm609mm618mm627mm636mm646mm
Reach (Low BB)410mm430mm450mm475mm500mm530mm
Reach (High BB)415mm435mm455mm480mm505mm535mm
Headtube Length95mm100mm110mm120mm130mm140mm
Headtube Angle (Low BB)65°65°65°65°65°65°
Headtube Angle (High BB)65.5°65.5°65.5°65.5°65.5°65.5°
BB Height (Low BB)328mm333mm333mm333mm333mm333mm
BB Height (High BB)335mm340mm340mm340mm340mm340mm
BB Drop (Low BB)47mm42mm42mm42mm42mm42mm
BB Drop (High BB)40mm35mm35mm35mm35mm35mm
Trail (Low BB)126mm126mm126mm126mm126mm126mm
Trail (High BB)123mm123mm123mm123mm123mm123mm
Fork Length (full)550mm550mm550mm550mm550mm550mm
Fork Rake/Offset44mm44mm44mm44mm44mm44mm
Front Center724mm746mm770mm800mm829mm863mm
Chainstay Length432mm432mm432mm432mm442mm442mm
Wheelbase1152mm1175mm1200mm1228mm1268mm1302mm
Top-tube Length (horizontal)563mm583mm605mm632mm660mm692mm
Bike Standover Height730mm734mm744mm749mm757mm757mm
Seat Tube Length385mm385mm405mm425mm445mm465mm
Seat Tube Angle (Low BB)76°76°76°76°76°76°
Seat Tube Angle (High BB)76.5°76.5°76.5°76.5°76.5°76.5°
Max Seatpost Insertion220mm220mm240mm260mm280mm300mm
Min Seatpost Insertion80mm80mm80mm80mm80mm80mm
Geometry

Manual Downloads

Add Icon
Download Icon
Specialized Bicycle Owner's Manual (All Languages)
Download Icon
2022 Rider/Bike Weight Limits and Terrain Conditions
Download Icon
2021 STUMPJUMPER - USER MANUAL - CHINESE SIMPLIFIED
Download Icon
2021 STUMPJUMPER - USER MANUAL - CHINESE TRADITIONAL
Download Icon
2021 STUMPJUMPER - USER MANUAL - CROATIAN
Download Icon
2021 STUMPJUMPER - USER MANUAL - CZECH
Download Icon
2021 STUMPJUMPER - USER MANUAL - DANISH
Download Icon
2021 STUMPJUMPER - USER MANUAL - DUTCH
Download Icon
2021 STUMPJUMPER - USER MANUAL - ENGLISH
Download Icon
2021 STUMPJUMPER - USER MANUAL - FINNISH
Download Icon
2021 STUMPJUMPER - USER MANUAL - FRENCH
Download Icon
2021 STUMPJUMPER - USER MANUAL - GERMAN
Download Icon
2021 STUMPJUMPER - USER MANUAL - ITALIAN
Download Icon
2021 STUMPJUMPER - USER MANUAL - JAPANESE
Download Icon
2021 STUMPJUMPER - USER MANUAL - KOREAN
Download Icon
2021 STUMPJUMPER - USER MANUAL - NORWEGIAN
Download Icon
2021 STUMPJUMPER - USER MANUAL - POLISH
Download Icon
2021 STUMPJUMPER - USER MANUAL - PORTUGUESE BRAZILAN
Download Icon
2021 STUMPJUMPER - USER MANUAL - RUSSIAN
Download Icon
2021 STUMPJUMPER - USER MANUAL - SLOVAK
Download Icon
2021 STUMPJUMPER - USER MANUAL - SLOVENIAN
Download Icon
2021 STUMPJUMPER - USER MANUAL - SPANISH
Download Icon
2017 FSR Tool Kit User Manual
Download Icon
2022 ROVAL ROAD AND MOUNTAIN WHEELSETS - OWNER'S MANUAL - PORTUGUESE BRAZILIAN
Download Icon
2022 ROVAL ROAD AND MOUNTAIN WHEELSETS - OWNER'S MANUAL - CHINESE SIMPLIFIED
Download Icon
2022 ROVAL ROAD AND MOUNTAIN WHEELSETS - OWNER'S MANUAL - FRENCH
Download Icon
2022 ROVAL ROAD AND MOUNTAIN WHEELSETS - OWNER'S MANUAL - GERMAN
Download Icon
2022 ROVAL ROAD AND MOUNTAIN WHEELSETS - OWNER'S MANUAL - SPANISH
Download Icon
2022 ROVAL ROAD AND MOUNTAIN WHEELSETS - OWNER'S MANUAL - ENGLISH

Rider Reviews

4

1 Reviews



Excels in everything

Solid bike, excellent for the long rides, no FSR (carbon ) no problem, firm without beating you up. Great climber, fast in the technical, and quiet. Also excellent fit and finish. It’s the do everything bike. Swat is awesome for “stuff”. Remember get a bike for you and your riding style. “When you taste perfection you don’t ask for seconds.” I think I heard that from someone in the woods one time.
