Everybody loves carbon, and with this in mind, we took our budget-friendly, but no…
Color:
Satin Silver Tint Carbon/Black/Rocket Red Clean

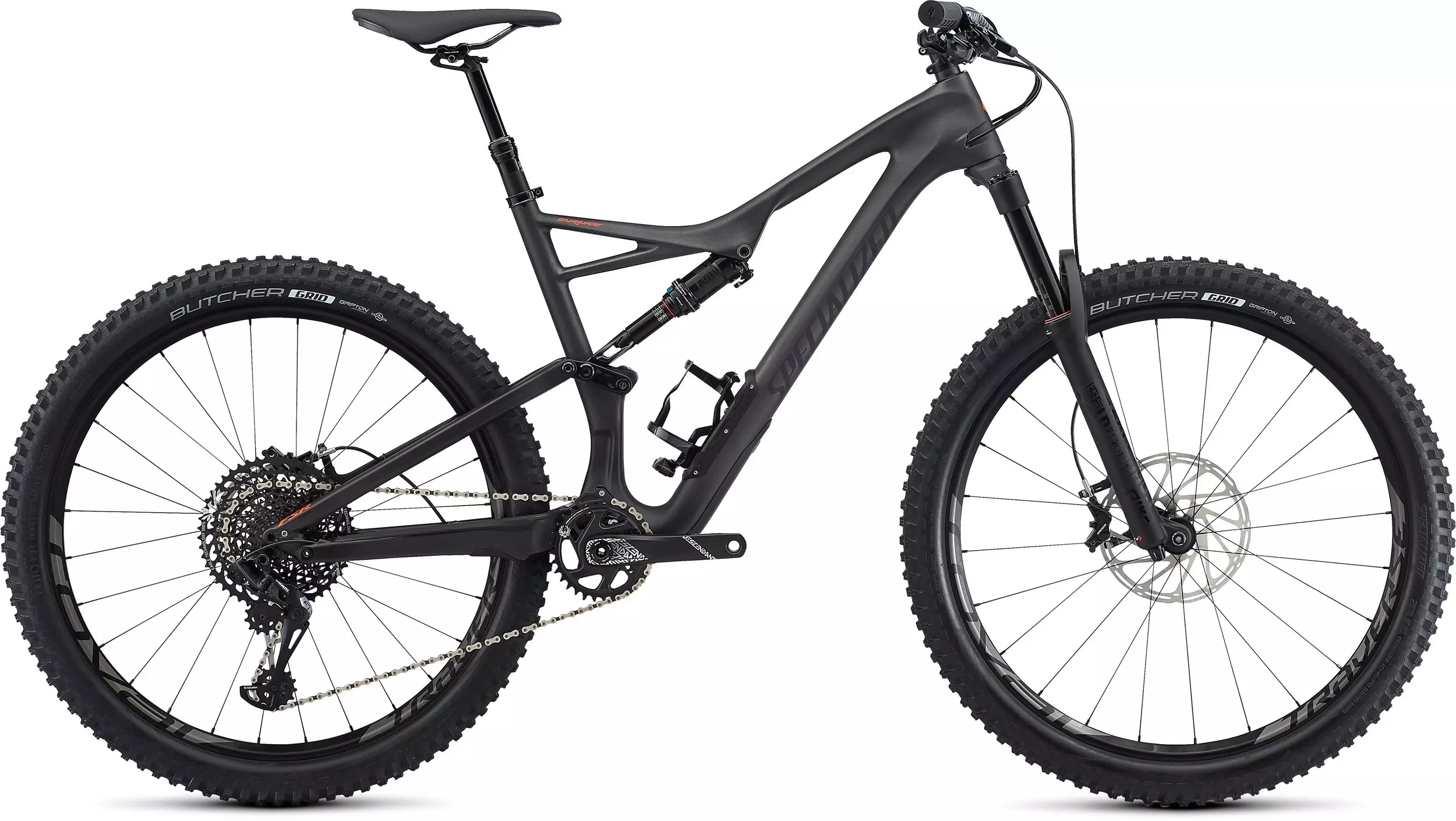

Everybody loves carbon, and with this in mind, we took our budget-friendly, but no compromises, build of our Stumpjumper Expert, and paired it with an all-carbon, 11m frame. Add in our Fattie Wheel/Tire System, with its drastic increase in traction, control, and flotation, and you have the ultimate trail bike, all while keeping some extra jingle-jangle in your pocket.
Starting at the carbon layup, it features our highest-end FACT 11m for an ultra-lightweight, strong, and stiff construction. The carbon molding process also allowed us to revolutionize how you carry your trail essentials with the all-new SWAT™ Door found at the down tube. This compartment will fit a tube, a tool, and pump without rattling or compromising the structural integrity of the frame. Further improving the ride, you'll also find an aggressive, trail-eating geometry that features ridiculously short chainstays, a roomy top tube, a low bottom bracket, a slacked out front end, and our proprietary Rx Trail Tune at the shock.
Then there's our 6Fattie Wheel/Tire System that takes 650b wheels and wraps them in 27.5x3.0" tires to provide a drastic, life-changing level of traction, control, and floatation. Impressively, 6Fattie pulls this off without sacrificing anything to climbing prowess. This system also allows you the opportunity to toggle between 29-inch wheels (not included) and 6Fattie wheels, allowing the ultimate in configuration options for the trail at hand. Further improving the ride, you'll also find an aggressive, trail-eating geometry that features ridiculously short chainstays, a roomy top tube, a low bottom bracket, a slacked out front end, and our proprietary Rx Trail Tune at the shock.
And when you factor in a build spec that has some of SRAM's best performing and durable components, you have a bike that will have you never looking back—unless it's to see your buddies eating your dust.
FACT 11m carbon fiber Trail Chassis and rear end blends stiffness with light weight to form the pinnacle of efficiency, while fully enclosed cable routing and an integrated SWAT™ Door create exceptional handling and zero-hassle storage.
RockShox Pike RC fork features a 15x110mm Maxle Stealth thru-axle and 150mm of plush travel to take on big hits and bumpy terrain with supreme speed and efficiency.
SRAM's 12-speed GX Eagle drivetrain, with a Truvativ Descendent crank, features an ultra-wide gear range that delivers climbing and descending efficiency in spades. On top of this, the one-by setup is notorious for being next to impossible to drop a chain with, plus it provides a significant weight savings in comparison to a standard two-by setup.
FRAME
FACT 11m, full carbon chassis and rear end, Trail Geometry, SWAT™ Door integration, PF30 BB, fully enclosed internal cable routing, ManFu link, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm of travel
SEAT BINDER
Alloy, 34.9mm
REAR SHOCK
RockShox Monarch RT3, Rx Trail Tune, AUTOSAG, rebound and 3-position compression adjust, 197x48mm
FORK
Pike RC, 27.5 boost, 46mm offset, solo air, maxle stealth, stock decal, diff black/gloss black decals, 150mm travel
RIMS
Roval Traverse 27.5, hookless alloy, 29mm inner width, 24/28h, tubeless ready
FRONT HUB
Roval Traverse, sealed cartridge bearings, 15mm thru axle, 110mm spacing, 24h
REAR HUB
Roval Traverse, DT Swiss internals, sealed cartridge bearings, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h
SPOKES
DT Swiss Revolution
FRONT TIRE
Butcher, GRID casing, Gripton compound, 2Bliss Ready, 27.5 x 2.6"
REAR TIRE
Butcher, GRID casing, Gripton compound, 2Bliss Ready, 27.5 x 2.6"
INNER TUBES
Standard, Presta valve
REAR DERAILLEUR
SRAM GX Eagle, 12-speed
SHIFT LEVERS
SRAM GX Eagle, trigger, 12-speed
CASSETTE
SRAM GX Eagle, 12-speed, 10-50t
CHAIN
SRAM GX Eagle, 12-speed w/ PowerLock®
CRANKSET
Truvativ Descendant, aluminum, Boost™ 148, 170mm crankarm, 30mm spindle
CHAINRINGS
Steel, 30T
BOTTOM BRACKET
PF30
STEM
Specialized Trail, 3D forged alloy, 4-bolt, 6-degree rise
HANDLEBARS
Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 27mm rise, 780mm, 31.8mm clamp
GRIPS
Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
SADDLE
Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm
SEATPOST
Command Post IRcc, 12-position micro-height adjustable, alien head design, bottom mount cable routing, remote SRL lever, 30.9mm, S: 100mm, M/L/XL: 125mm of travel
FRONT BRAKE
SRAM Guide R, hydraulic disc, organic pads, Guide S4 4-piston caliper, 200/180mm rotor
REAR BRAKE
SRAM Guide R, hydraulic disc, organic pads, Guide S4 4-piston caliper, 180/160mm rotor
PEDALS
Specialized Dirt
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
S | M | L | XL | |
---|---|---|---|---|
Crank Length | 170MM | 170MM | 170MM | 170MM |
Handlebar Width | 780mm | 780mm | 780mm | 780mm |
Stem Length | 45MM | 60MM | 60MM | 60MM |
Saddle Width | 143mm | 143mm | 143mm | 143mm |
Seatpost Length | 390mm | 430mm | 430mm | 430mm |
Stack | 590mm | 599mm | 608mm | 617mm |
Reach | 388mm | 414mm | 442mm | 464mm |
Head Tube Length | 105mm | 115mm | 125mm | 95mm |
Head Tube Angle | 67° | 67° | 67° | 67° |
BB Drop | 18mm | 18mm | 18mm | 18mm |
Trail | 104mm | 104mm | 104mm | 104mm |
Fork Length, Full | 542mm | 542mm | 542mm | 542mm |
Fork Rake/Offset | 46mm | 46mm | 46mm | 46mm |
Front Center | 677mm | 706mm | 738mm | 764mm |
Chainstay Length | 420mm | 420mm | 420mm | 420mm |
Wheelbase | 1096mm | 1126mm | 1158mm | 1184mm |
Top Tube Length, Horizontal | 553mm | 585mm | 618mm | 646mm |
Bike Standover Height | 742mm | 748mm | 762mm | 774mm |
Seat Tube Length | 396mm | 430mm | 468mm | 523mm |
Seat Tube Angle | 74° | 74° | 74° | 74° |
For safety warning please refer to the documentation in the Manual Downloads section of this page.
