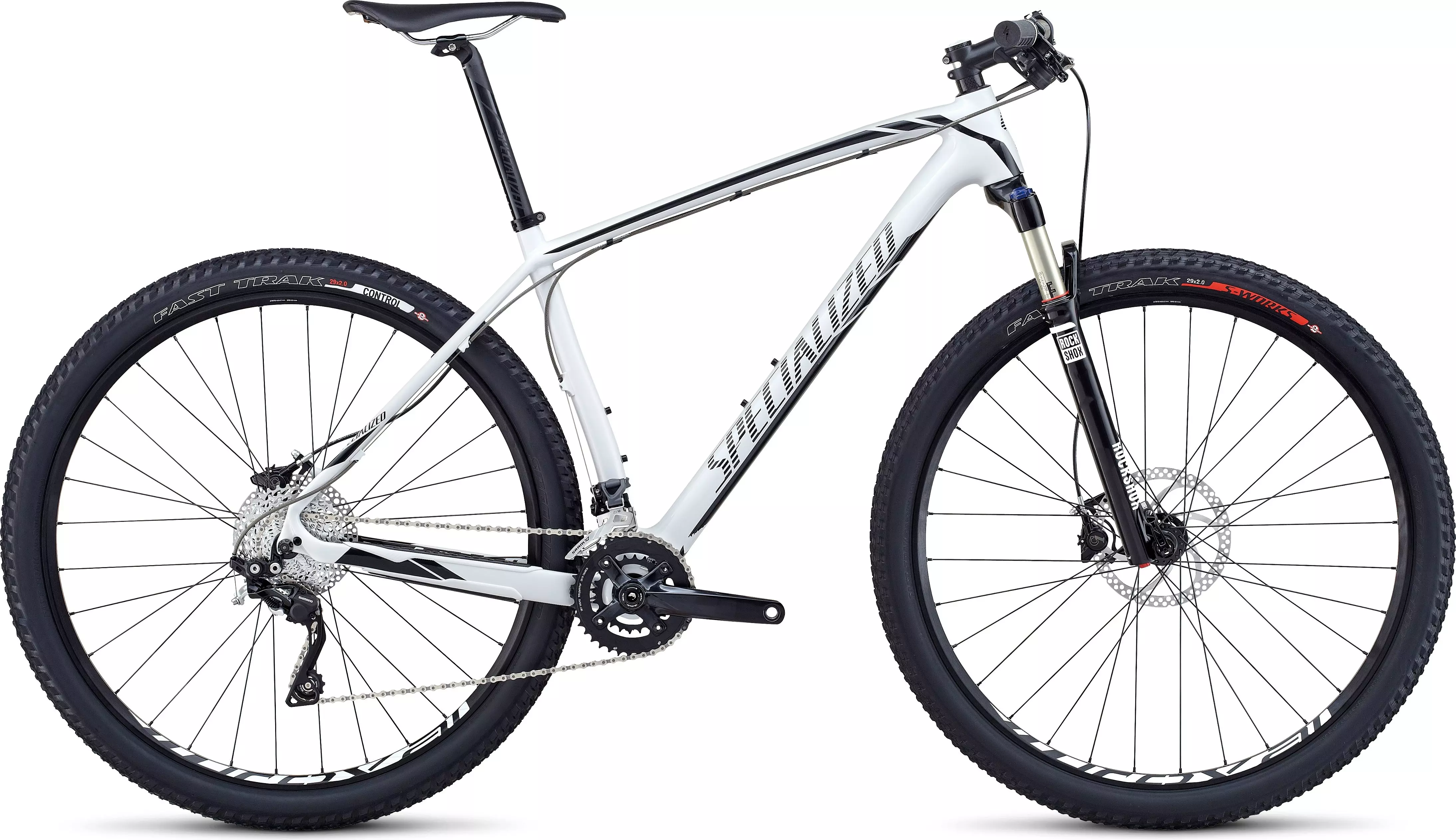

2014 Stumpjumper Comp Carbon 29

0 Reviews

With an 80mm-travel RockShox Reba RL 29 fork, 2x10 drivetrain and a carbon frame…

Product Details

With an 80mm-travel RockShox Reba RL 29 fork, 2x10 drivetrain and a carbon frame the Stumpjumper Comp Carbon 29 is a lightweight cross-country machine with podium finishes in sight.

Roval 29 rims, mated to Specialized Hi Lo hubs increase wheel stiffness for more confident riding
RockShox Reba RL 29 fork with 90mm travel, Solo Air spring and rebound adjust, and a 15mm thru-axle provides premium XC suspension performance w/Lockout and compression adjust
FACT IS 8m carbon HT frame with 29er geometry is engineered with a tapered head tube, hollow carbon dropouts, PF30 BB and PM 140 rear brake for a stiff, responsive and race-ready design
Custom SRAM S-1250 10-speed XC double crankset has 29er-specific gearing, large PF30 bearings, and alloy arms for smooth, efficient power transfer
Formula C1 hydraulic disc brakes provide consistent and reliable stopping power

Technical Specifications

FRAMESET

FRAME

FACT 8m carbon, 29"" geometry, FACT IS construction, tapered headtube, carbon PF30 BB, 135mm dropouts, replaceable alloy rear derailleur hanger

SWAT

Bottle cage w/ SWAT Technology compatible (not included)

HEADSET

1-1/8 and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings

SEAT BINDER

Specialized 7050 hard anodized alloy, single bolt, 32.6mm

SUSPENSION

FORK

RockShox Reba RL 29, Solo Air spring, alloy tapered steerer, lockout and reb adj., 15mm thru-axle, 15.5"": 80mm Others: 90mm travel

WHEELS

RIMS

Roval 29, alloy disc, 26mm wide, 32h

FRONT HUB

Specialized Hi Lo disc, sealed cartridge bearings, 15mm thru-axle, 32h

REAR HUB

Specialized Hi Lo disc, double-sealed cartridge bearings, QR, 32h

SPOKES

DT Industry Stainless, 3X front/rear 2.0

FRONT TIRE

S-Works Fast Trak, 2Bliss Ready, 29x2.0"", foldable aramid bead, 120 TPI

REAR TIRE

Specialized Fast Trak Control, 2Bliss Ready, 29x2.0"", foldable aramid bead, 60 TPI

DRIVETRAIN

FRONT DERAILLEUR

SRAM X7, 10-speed, 34.9mm clamp, top pull

REAR DERAILLEUR

Shimano XT Shadow Plus, 10-speed, SGS long cage

SHIFT LEVERS

Shimano SLX, 10-speed, trigger

CASSETTE

SRAM PG-1030, 10-speed, 11-36

CHAIN

SRAM PC 1031, 10-speed, PowerLink

CRANKSET

Custom SRAM S-1250, 7050 alloy arms, 10-speed XC double, PF30 spindle, S: 170mm, Others: 175mm

CHAINRINGS

38/24

BOTTOM BRACKET

SRAM PF30, OS press-in bearings, sealed cartridge

COCKPIT

SADDLE

Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm

SEATPOST

Specialized 2014 butted alloy, single bolt setback, 27.2mm, 15.5/17.5"" 350mm, Others: 400mm

STEM

Specialized XC, 3D forged alloy, 4-bolt, 6-degree rise, 31.8mm clamp

HANDLEBARS

Specialized XC, flat bar, 2014 butted alloy, 700mm wide, 8-degree backsweep, 31.8mm

GRIPS

Specialized Sip Grip, light lock-on, half-waffle aramid-infused, 15.5""/17.5"": regular, 19""/21"": XL thickness

BRAKES

FRONT BRAKE

Formula C1, alloy caliper, metallic pad, 15.5""/17.5"": 160mm, 19""/21"": 180mm rotor

REAR BRAKE

Formula C1, alloy caliper, metallic pad, 160mm rotor

BRAKE LEVERS

Formula C1, hydraulic disc, tooled reach adj.

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	15.5	17.5	19	21
Ground-Top	897mm	916mm	930mm	945mm
Top Tube Length (Horizontal)	570mm	592mm	615mm	640mm
Seat Tube Angle (Effective)	73.5°	73.5°	73.5°	73.5°
Head Tube Height	90mm	100mm	115mm	130mm
Top Tube Length (Actual)	558mm	570mm	590mm	614mm
Seat Tube Length - Center to Top	394mm	445mm	483mm	533mm
Bottom Bracket Drop	63.5mm	63.5mm	63.5mm	63.5mm
Bottom Bracket Height	304mm	304mm	304mm	304mm
Wheel Base	1049mm	1072mm	1106mm	1132mm
Standover Height	760mm	810mm	830mm	870mm
Stack	594mm	612mm	627mm	641mm
Reach	394mm	410.5mm	430mm	450mm
Head Tube Angle	71.5°	71.5°	71.5°	71.5°
Chainstay Length	435mm	435mm	435mm	435mm
Crank Length	170mm	175mm	175mm	175mm
Handlebar Width	700mm	700mm	700mm	700mm
Stem Length	75mm	90mm	105mm	105mm
