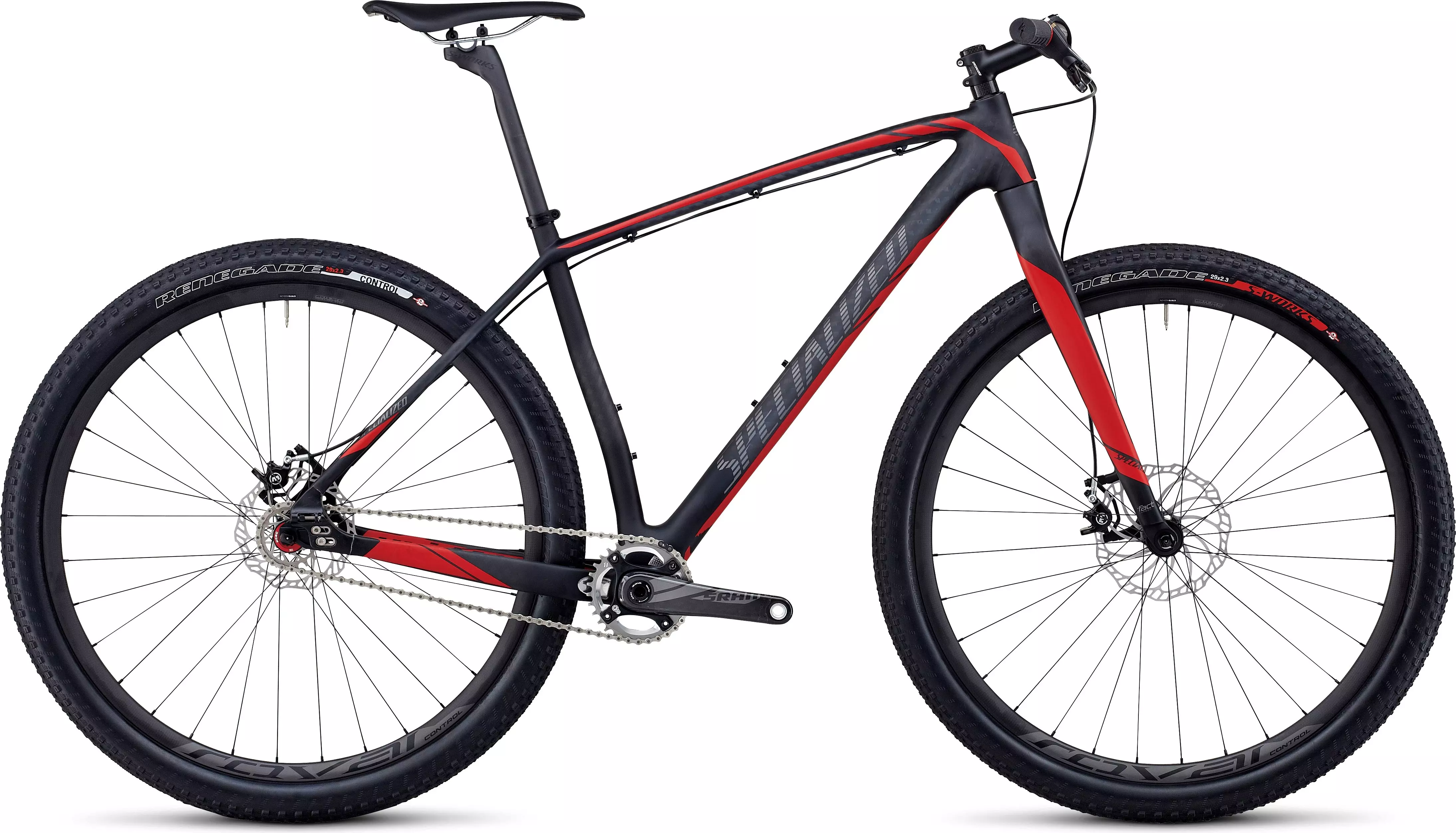

2014 Stumpjumper Carbon 29 Singlespeed
5
1 Reviews
The Stumpjumper HT Carbon SS features a FACT carbon frame and Chisel rigid carbon…
Product Details
The Stumpjumper HT Carbon SS features a FACT carbon frame and Chisel rigid carbon fork. The SRAM XX1-style single speed ring means no dropped chains on this pure XC machine.
FACT IS 8m carbon HT singlespeed frame with 29er geometry is engineered with a tapered head tube, horizontal sliding dropouts, PF30 BB, and PM 140 rear brake for a stiff, responsive and race-ready design
The mega-light Chisel carbon rigid fork has a monocoque carbon structure, tapered carbon steerer, alloy dropouts, PM brake mount for rigid purists
Custom SRAM S-2200 carbon XC crankset setup for singlespeed with an XX1-style ring means no dropped chains
Roval Control Carbon 29 142+ hookless carbon wheelset with durable DT Swiss internals and stainless DT Swiss spokes brings carbon wheels to a whole new realm of fun
Technical Specifications
FRAMESET
FRAME
FACT 8m carbon, 29"" geometry, FACT IS construction, tapered headtube, carbon PF30 BB, PM 140 rear brake, sliding dropouts
SWAT
Bottle cage w/ SWAT Technology compatible (not included)
HEADSET
1-1/8 and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings
SEAT BINDER
Specialized 7050 hard anodized alloy, single bolt, 32.6mm
SUSPENSION
FORK
Specialized Chisel, suspension corrected carbon rigid fork, monocoque carbon structure, tapered carbon steerer, alloy dropouts, PM brake mount, OS28 end caps
WHEELS
SPOKES
DT Swiss Super Comp, 2.0/1.65/1.8 stainless
FRONT TIRE
S-Works Renegade, 29x2.3"", foldable aramid bead, dual-compound, 120TPI
REAR TIRE
Specialized Renegade Control, 2Bliss Ready, 29x2.3"", foldable aramid bead, 60 TPI
RIMS
Roval Control Carbon 29, carbon disc, hookless bead, 27mm wide, 32h
FRONT HUB
Roval Control Carbon 29, QR, OS28 endcaps, 32h
REAR HUB
Roval Control Carbon 29, DT Swiss Star Ratchet, 135mm, QR, 32h
DRIVETRAIN
CASSETTE
20T SS Cog w/spacer kit
CHAIN
SRAM PC 1051, 10-speed, PowerLink
CRANKSET
Custom SRAM carbon S-2200, 32T XX1 style single ring, PF30 spindle, removable spider, 15.5"": 170mm, Others: 175mm
BOTTOM BRACKET
SRAM PF30, OS press-in bearings, sealed cartridge
COCKPIT
STEM
Specialized XC, 3D forged alloy, 4-bolt, 6-degree rise, 31.8mm clamp
HANDLEBARS
S-Works XC, flat bar, carbon, 700mm wide, 8-degree backsweep, 31.8mm
GRIPS
Specialized Sip Grip, light lock-on, half-waffle aramid-infused, 15.5""/17.5"": regular, 19""/21"": XL thickness
SADDLE
Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm
SEATPOST
Specialized carbon, 2-bolt, 27.2mm, 15.5""/17.5"": 350mm, Others: 400mm
BRAKES
FRONT BRAKE
Magura MTS, Hi Friction pad, alloy master cylinder, alloy lever blade, alloy caliper, Storm SL rotor, 15.5""/17.5"": 160mm rotor, 19""/21"": 180mm rotor
REAR BRAKE
Magura MTS, Hi Friction pad, alloy master cylinder, alloy lever blade, alloy caliper, Storm SL rotor, 160mm rotor
BRAKE LEVERS
Magura MTS, alloy master cylinder, alloy lever blade, hollow lever pivot, reach adj.
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 15.5 | 17.5 | 19 | 21 | |
|---|---|---|---|---|
| Ground-Top | 897mm | 916mm | 930mm | 945mm |
| Top Tube Length (Horizontal) | 570mm | 592mm | 615mm | 640mm |
| Seat Tube Angle (Effective) | 73.5° | 73.5° | 73.5° | 73.5° |
| Head Tube Height | 90mm | 100mm | 115mm | 130mm |
| Top Tube Length (Actual) | 558mm | 570mm | 590mm | 614mm |
| Seat Tube Length - Center to Top | 394mm | 445mm | 483mm | 533mm |
| Bottom Bracket Drop | 63.5mm | 63.5mm | 63.5mm | 63.5mm |
| Bottom Bracket Height | 304mm | 304mm | 304mm | 304mm |
| Wheel Base | 1049mm | 1072mm | 1106mm | 1132mm |
| Standover Height | 760mm | 810mm | 830mm | 870mm |
| Stack | 594mm | 612mm | 627mm | 641mm |
| Reach | 394mm | 410.5mm | 430mm | 450mm |
| Head Tube Angle | 71.5° | 71.5° | 71.5° | 71.5° |
| Chainstay Length | 435mm | 435mm | 435mm | 435mm |
| Crank Length | 170mm | 175mm | 175mm | 175mm |
| Handlebar Width | 700mm | 700mm | 700mm | 700mm |
| Stem Length | 75mm | 90mm | 105mm | 105mm |
