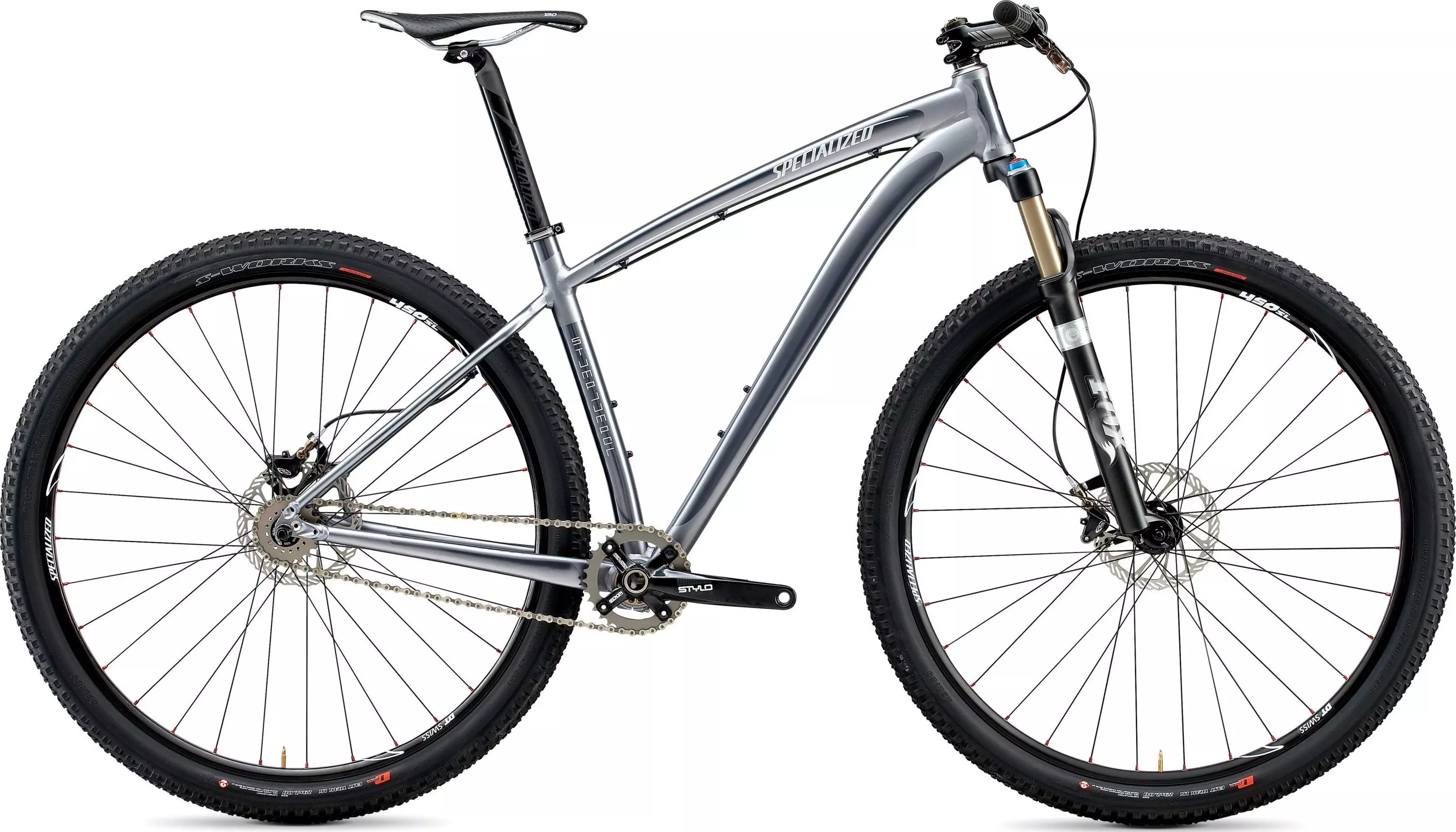

2010 Stumpjumper 29 SS

0 Reviews

With enough years of experience under its belt to merit a podium finish every time,…

Color:

Charcoal Ano

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Product Details

With enough years of experience under its belt to merit a podium finish every time, the Stumpjumper Hardtail is second only to its S-Works sibling when it comes to cross-country speed. Like the riders who hammer it, the Stumpjumper HT is lean, strong and exceedingly efficient, with an incredibly lightweight, high performance frame and spec combination. Now available in dedicated singlespeed and multi-speed models, with a full range of 26" and 29" versions.

Fox F29RL 90mm air-sprung fork with rebound/compression adjust, lockout and v-brake bosses is everything you need for this true to the trails 29er
Sweet looking singlespeed Stumpjumper HT 29er frame with curved top tube and eccentric bottom bracket is also sweet riding due to its M5 manipulated alloy construction and race-optimized 29" geometry
9mm thru-axle front hub with hi/lo flanges and 24/28mm end caps for increased tracking strength and multi-fork compatibility, along with an efficient DT Swiss 10mm thru-axle singlespeed rear hub with cassette spacers

Technical Specifications

FRAMESET

FRAME

M5 manipulated alloy frame, 29"" geometry, curved TT, ECBB-light eccentric bottom bracket, disc only, vertical dropouts

HEADSET

Campy style cartridge bearings for integrated alloy HT

SEAT BINDER

7050 hard annodized alloy collar w/bolt, 34.9mm clamp ID

SUSPENSION

FORK

Fox F29RL, 90mm, compression and rebound adj. w/ LO, 1 1/8"" alloy steerer

WHEELS

FRONT TIRE

S-Works Fast Trak LK, 29x2.0"", 120 TPI, tubeless ready aramid bead, dual compound

REAR TIRE

S-Works Fast Trak LK, 29x2.0"", 120 TPI, tubeless ready aramid bead, dual compound

INNER TUBES

Ultralight presta valve

RIMS

DT Swiss X450SL, 29"" rim, 24mm w/ eyelets, 32h

FRONT HUB

Specialized Hi Lo disc, CNC flange, sealed cartridge bearing, 9mm DT RWS, alloy QR, 28h

REAR HUB

Custom DT Swiss 240S, single speed w/ 10mm RWS thru axle

SPOKES

DT Swiss 1.8mm stainless

DRIVETRAIN

CASSETTE

Single speed specific, wide-based, heat-treated Cr-Mo, 20t

CHAIN

SRAM PC-971, 9-speed w/Power Link

CRANKSET

Stylo SS, S:175mm, others:180mm, 32T

CHAINRINGS

32T

COCKPIT

STEM

3D forged alloy, adjustable rise, 31.8mm clamp

HANDLEBARS

Specialized XC flat, 2014 butted alloy, 680mm wide, 8 degree backsweep,

GRIPS

Specialized waffle lock on grip (15.5) Specialized Thick lock on grip (others)

SADDLE

Specialized Phenom, hollow Cr-Mo rails, thin foam, S/M: 130mm, L/XL: 143mm

SEATPOST

2014 butted alloy, single bolt setback, 30.9mm

BRAKES

FRONT BRAKE

Custom Avid Elixir R SL, alloy backed organic pads, 160mm rotor

REAR BRAKE

Custom Avid Elixir R SL, alloy backed organic pads, 160mm rotor

BRAKE LEVERS

Custom Avid Elixir R SL Hydraulic, tool-less adj. reach

ACCESSORIES

PEDALS

None

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	15.5	17.5	19	21	23
Ground-Top	908mm	928mm	938mm	947mm	966mm
Bottom Bracket Height - Low Setting	301mm	301mm	301mm	301mm	301mm
Top Tube Length (Horizontal)	570mm	590mm	615mm	640mm	660mm
Head Tube Height	100mm	110mm	120mm	130mm	150mm
Head Tube Angle - Low Setting	71.5°	71.5°	71.5°	71.5°	71.5°
Seat Tube Angle (Actual) - Low Setting	73°	72°	72°	72°	72°
Seat Tube Angle (Effective) - Low Setting	74.5°	73.5°	73.5°	73.5°	73.5°
Top Tube Length (Actual)	559mm	564mm	586mm	610mm	633mm
Seat Tube Length - Center to Top	396mm	448mm	486mm	536mm	587mm
Wheel Base	1064mm	1067mm	1093mm	1118mm	1138mm
Standover Height	724mm	799mm	829mm	863mm	900mm
Stack	607mm	627mm	637mm	646mm	665mm
Reach	403mm	407mm	429mm	451mm	465mm
Chainstay Length	430mm	430mm	430mm	430mm	430mm
Crank Length	175mm	180mm	180mm	180mm	180mm
Handlebar Width	680mm	680mm	680mm	680mm	680mm
Stem Length	75mm	90mm	105mm	105mm	105mm
Seatpost Length	350mm	350mm	400mm	400mm	400mm
