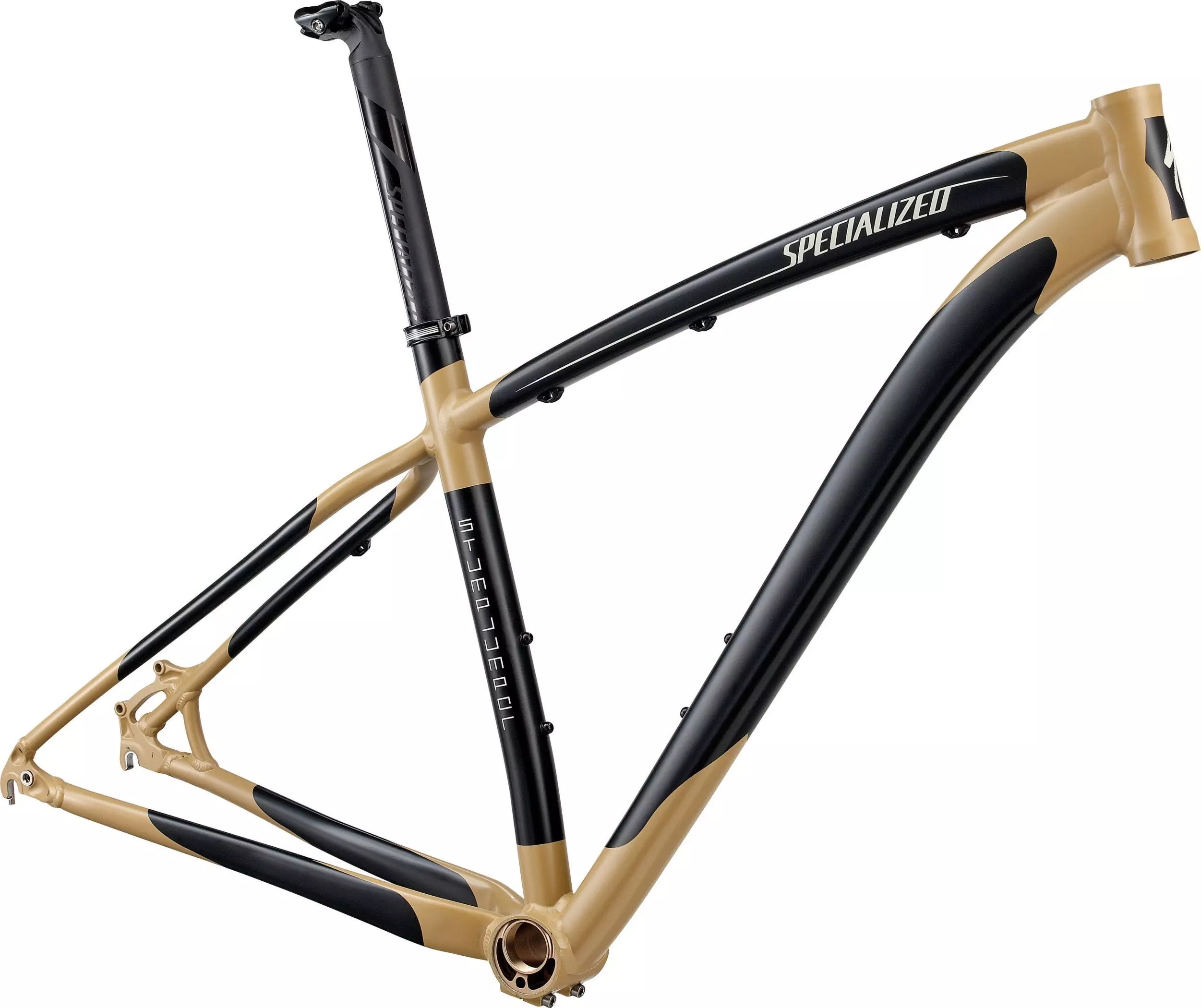

2010 Stumpjumper 29 SS Frame

0 Reviews

With enough years of experience under its belt to merit a podium finish every time,…

Product Details

With enough years of experience under its belt to merit a podium finish every time, the Stumpjumper Hardtail is second only to its S-Works sibling when it comes to cross-country speed. Like the riders who hammer it, the Stumpjumper HT is lean, strong and exceedingly efficient, with an incredibly lightweight, high performance frame and spec combination. Now available in dedicated singlespeed and multi-speed models, with a full range of 26" and 29" versions.

Technical Specifications

FRAMESET

FRAME

M5 manipulated alloy frame, 29"" geometry, curved TT, ECBB-light eccentric bottom bracket, disc only, vertical dropouts

HEADSET

Campy style cartridge bearings for integrated alloy HT

SEAT BINDER

7050 hard annodized alloy collar w/bolt, 34.9mm clamp ID

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	15.5	17.5	19	21	23
Ground-Top	908mm	928mm	938mm	947mm	966mm
Bottom Bracket Height - Low Setting	301mm	301mm	301mm	301mm	301mm
Top Tube Length (Horizontal)	570mm	590mm	615mm	640mm	660mm
Head Tube Height	100mm	110mm	120mm	130mm	150mm
Head Tube Angle - Low Setting	71.5°	71.5°	71.5°	71.5°	71.5°
Seat Tube Angle (Actual) - Low Setting	73°	72°	72°	72°	72°
Seat Tube Angle (Effective) - Low Setting	74.5°	73.5°	73.5°	73.5°	73.5°
Top Tube Length (Actual)	559mm	564mm	586mm	610mm	633mm
Seat Tube Length - Center to Top	396mm	448mm	486mm	536mm	587mm
Wheel Base	1064mm	1067mm	1093mm	1118mm	1138mm
Standover Height	724mm	799mm	829mm	863mm	900mm
Stack	607mm	627mm	637mm	646mm	665mm
Reach	403mm	407mm	429mm	451mm	465mm
Chainstay Length	430mm	430mm	430mm	430mm	430mm
Crank Length	175mm	180mm	180mm	180mm	180mm
Handlebar Width	680mm	680mm	680mm	680mm	680mm
Stem Length	75mm	90mm	105mm	105mm	105mm
Seatpost Length	350mm	350mm	400mm	400mm	400mm
