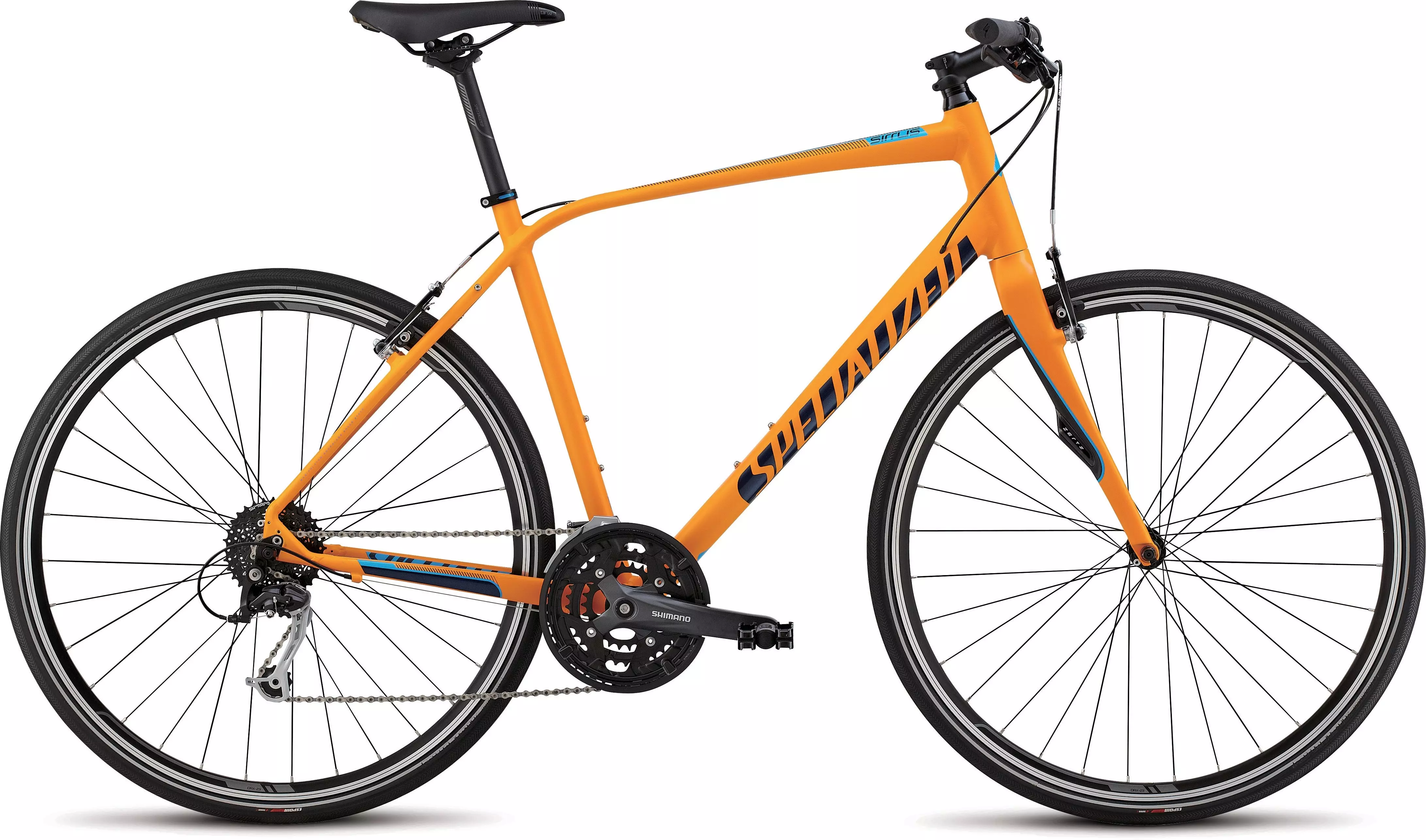

2015 Sirrus Elite
0 Reviews
The Sirrus Elite with Fitness Geometry provides flat bar handling so you can ride…
Product Details
The Sirrus Elite with Fitness Geometry provides flat bar handling so you can ride faster on longer rides, yet be stable and quick in town. The E5 Premium Aluminum fork with Zertz dials in front end handling, while soaking up road shock.
New E5 aluminum frame w/ Fitness Geometry built for speed and versatility
FACT carbon fork w/ Zertz provides lightweight and smooth handling
Specialized Espoir Sport Reflect, 700x30c tires for performance and visibility
Specialized Body Geometry Targa, lock-on grips w/ integrated bar end for no-slip performance
Die-cast alloy V-brake for no-hassle braking performance
Shimano Alivio, 9-speed derailleur for worry-free shifting
Body Geometry Targa Sport saddle w/ steel rails for all conditions comfort
Compatible with Specialized Plug + Play Fender Set
Technical Specifications
FRAMESET
FRAME
Specialized E5 Premium Aluminum, fully manipulated butted tubing w/ smooth welds, internal cable routing, tapered/integrated headset, fender/rack eyelets
FORK
Specialized FACT carbon w/ Zertz, alloy steerer/crown
HEADSET
1-1/8"" sealed Cr-Mo bearings integrated w/ headset, 15mm alloy cone spacer
SEAT BINDER
Alloy, 31.8mm
WHEELS
FRONT HUB
Double-sealed, QR, 32h
REAR HUB
Double-sealed, QR, 32h
SPOKES
Stainless, 14g, w/ brass nipple
FRONT TIRE
Specialized Espoir Sport Reflect, 60TPI, wire bead, Double BlackBelt protection, 700x30c
REAR TIRE
Specialized Espoir Sport Reflect, 60TPI, wire bead, Double BlackBelt protection, 700x30c
INNER TUBES
Standard, presta valve
RIMS
700c, alloy double-wall, CNC sidewalls, 32h
DRIVETRAIN
SHIFT LEVERS
Shimano Acera Rapidfire Plus, 2x9, w/ optical display
FRONT DERAILLEUR
Shimano Acera, top swing, dual-pull
REAR DERAILLEUR
Shimano Alivio, 9-speed, top mount
CASSETTE
Shimano, 9-speed, 11-32
CRANKSET
Shimano Acera, 9-speed, 48/36/26, w/ chainguard
BOTTOM BRACKET
Shimano
CHAIN
KMC X9, 9-speed, reusable Missing Link
COCKPIT
HANDLEBARS
Specialized flat, 6061 double butted alloy, 10-degree backsweep, 4-degree upsweep, 31.8mm
STEM
Specialized 3D forged alloy, 4-bolt, 6-degree rise
TAPE
Specialized Body Geometry Targa, lock-on, closed end
SADDLE
Body Geometry Targa Sport, steel rails, 155mm
SEATPOST
Alloy, 2-bolt, micro-adjust, 12.5mm offset, 27.2mm, anti-corrosion hardware
BRAKES
FRONT BRAKE
Alloy V-brake, linear pull
REAR BRAKE
Alloy V-brake, linear pull
BRAKE LEVERS
Die-cast alloy
ACCESSORIES
PEDALS
Sirrus, 1.5mm Varus angle, nylon body, symmetric alloy cage, low profile bearing system, toe clip capable
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Top Tube Length (Horizontal) | 555mm | 570mm | 580mm | 600mm | 620mm |
| Rake | 51mm | 51mm | 51mm | 51mm | 51mm |
| Seat Tube Length, Center to Top | 395mm | 440mm | 485mm | 530mm | 570mm |
| Bottom Bracket Drop | 70mm | 70mm | 70mm | 70mm | 70mm |
| Bottom Bracket Height | 272.5mm | 272.5mm | 272.5mm | 272.5mm | 272.5mm |
| Wheel Base | 1050mm | 1058mm | 1066mm | 1076mm | 1097mm |
| Standover Height | 706mm | 745mm | 780mm | 814mm | 847mm |
| Stack | 552mm | 572mm | 589mm | 614mm | 648mm |
| Reach | 392mm | 398mm | 406mm | 412mm | 422mm |
| Head Tube Length | 130mm | 150mm | 165mm | 190mm | 225mm |
| Head Tube Angle | 70.5° | 71° | 71.5° | 72° | 72° |
| Trail | 66mm | 63mm | 60mm | 57mm | 57mm |
| Front Center | 562.2mm | 570.7mm | 579.2mm | 589mm | 609.7mm |
| Chainstay Length | 439mm | 439mm | 439mm | 439mm | 439mm |
| Seat Tube Angle | 73.5° | 73.25° | 73.5° | 73° | 73° |
| Crank Length | 170mm | 170mm | 175mm | 175mm | 175mm |
| Handlebar Width | 580mm | 580mm | 600mm | 600mm | 620mm |
| Stem Length | 80mm | 90mm | 100mm | 100mm | 110mm |
| Seatpost Length | 300mm | 300mm | 350mm | 350mm | 350mm |
