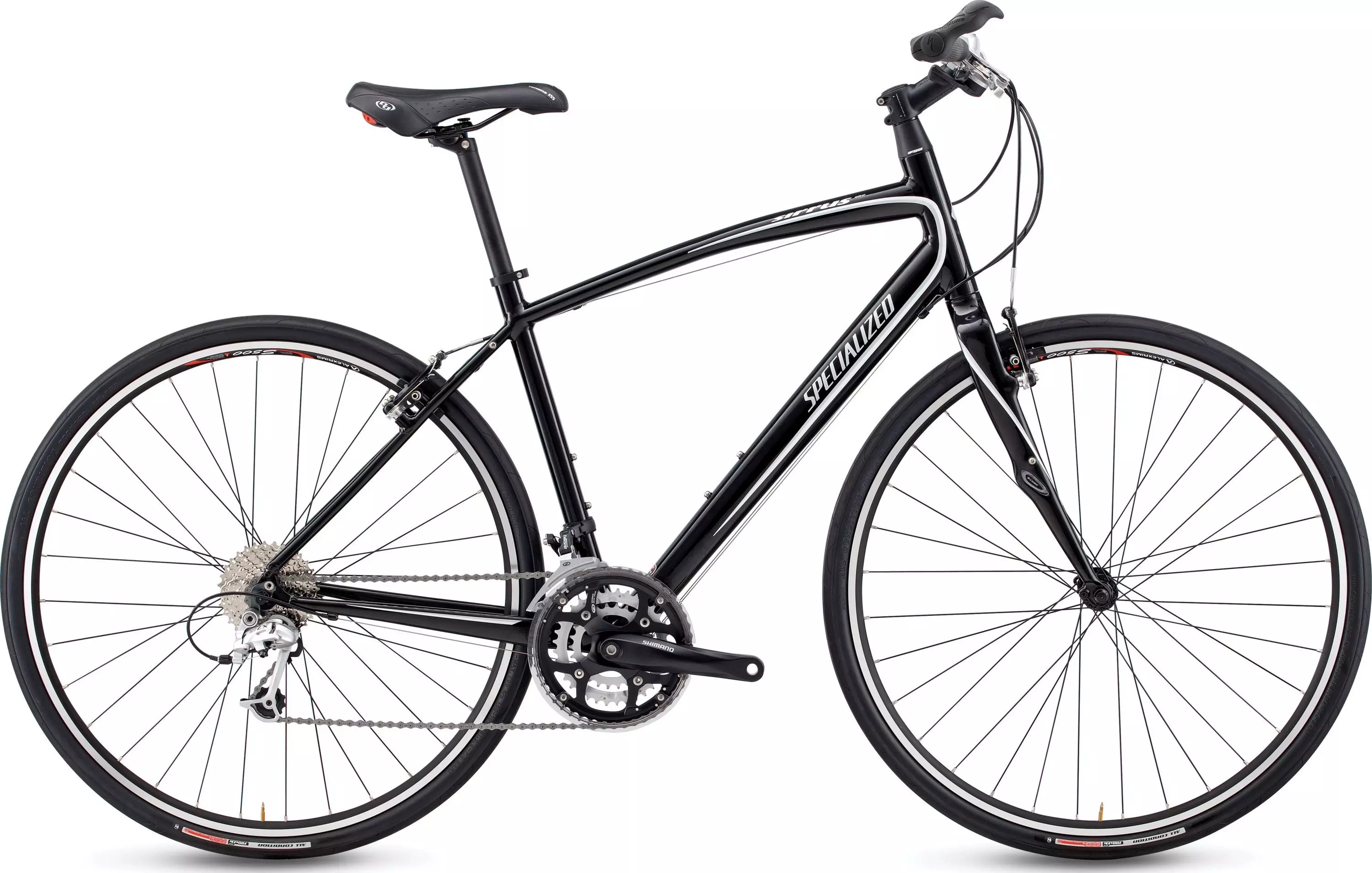

2010 Sirrus Elite
0 Reviews
Leaps and bounds beyond your everyday "fitness" rig, this flat-bar road bike combines…
Product Details
Leaps and bounds beyond your everyday "fitness" rig, this flat-bar road bike combines the easy speed, low weight and high comfort of our Endurance Road bikes with the enhanced ergonomics of Body Geometry components.
Adjustable 4-position stem with 31.8mm bar clamp for strength and versatile positioning
Body Geometry triple-density gel grips alleviate hand pain and tingling fingers for all-day riding comfort
FACT carbon/alloy fork--with rack eyelets for packing options--provides maximum strength at minimal weight
Body Geometry Sonoma saddle provides cushioning where it counts, with enough comfort for long-distance rides
Lightweight A1 Premium Aluminum frame with hourglass speedstays provides perfect balance of performance and comfort for fitness/commute rides
Technical Specifications
FRAMESET
FRAME
Specialized Sirrus A1 Premium aluminum, fully manipulated tubing, compact design, hourglass speedstays, integrated headset
FORK
Sirrus carbon legs & crown, alloy steerer
HEADSET
Cage bearings integrated HS. w/ 20mm of spacers w/ top cap
SEAT BINDER
Alloy, 31.8mm
WHEELS
REAR HUB
Forged alloy, double-sealed, cassette, QR, 32h
SPOKES
Stainless 14g
FRONT TIRE
Specialized All Condition Sport, 700x32c, wire bead, 60TPI, w/ Flak Jacket protection
REAR TIRE
Specialized All Condition Sport, 700x32c, wire bead, 60TPI, w/ Flak Jacket protection
INNER TUBES
Standard presta valve
RIMS
Alex S500, aluminum, sleeve joint, CNC machined sidewalls
FRONT HUB
Forged alloy, sealed, QR, 32h
DRIVETRAIN
FRONT DERAILLEUR
Shimano Deore
REAR DERAILLEUR
Shimano Deore LX
SHIFT LEVERS
Shimano LX Rapidfire
CASSETTE
Shimano HG-50, 9-speed, 12-25t
CHAIN
HG-73
CRANKSET
Shimano FC-R443
CHAINRINGS
48 x 38 x 28T
BOTTOM BRACKET
Octalink
COCKPIT
STEM
Specialized Elite-Set, 3D forged alloy, 4-position adjustable, 4-bolt 31.8mm clamp
HANDLEBARS
Specialized Sirrus Elite, 6061 aluminum, small riser, 31.8mm
TAPE
Body Geometry Comfort Grips open-end with plug, alloy barend
SADDLE
Body Geometry Sonoma, 155mm width
SEATPOST
Alloy, two-bolt clamp, 27.2mm
BRAKES
FRONT BRAKE
Forged 6061 aluminum Mini V-Brake, 85mm linear pull, w/ cartridge pads
REAR BRAKE
Forged 6061 aluminum Mini V-Brake, 85mm linear pull, w/ cartridge pads
BRAKE LEVERS
Forged alloy
ACCESSORIES
PEDALS
Silver cage/black body, w/ black toe clips and strap
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Seat-Tube Angle | 76° | 75° | 74° | 73.5° | 73° |
| Head-Tube Length | 135mm | 155mm | 185mm | 215mm | 250mm |
| Seat-Post Length | 300mm | 350mm | 350mm | 350mm | 350mm |
| Head-Tube Angle | 70° | 71.25° | 71.5° | 72° | 72.5° |
| Chain-Stay Length | 440mm | 435mm | 435mm | 435mm | 435mm |
| Top-Tube Length, Horizontal | 530mm | 545mm | 560mm | 580mm | 600mm |
| Front-Center | 614mm | 613mm | 619mm | 630mm | 641mm |
| Handle-Bar Width | 620mm | 620mm | 620mm | 620mm | 620mm |
| Stand-Over Height | 727mm | 763mm | 796mm | 824mm | 860mm |
| Seat-Tube Length, B-B Center to Top | 400mm | 445mm | 480mm | 515mm | 565mm |
| Fork Rake | 51mm | 51mm | 51mm | 51mm | 51mm |
| B-B Drop | 76mm | 74mm | 70mm | 70mm | 70mm |
| Trail | 73mm | 65mm | 63mm | 60mm | 57mm |
| Wheelbase | 1042mm | 1038mm | 1045mm | 1056mm | 1066mm |
| Crank Length | 170mm | 170mm | 175mm | 175mm | 175mm |
| Stem Length | 90mm | 100mm | 100mm | 110mm | 120mm |
