2015 Sirrus Comp Carbon Disc
0 Reviews
With a new FACT 9r carbon frame and light, efficient Shimano drivetrain, the Sirrus…
Product Details

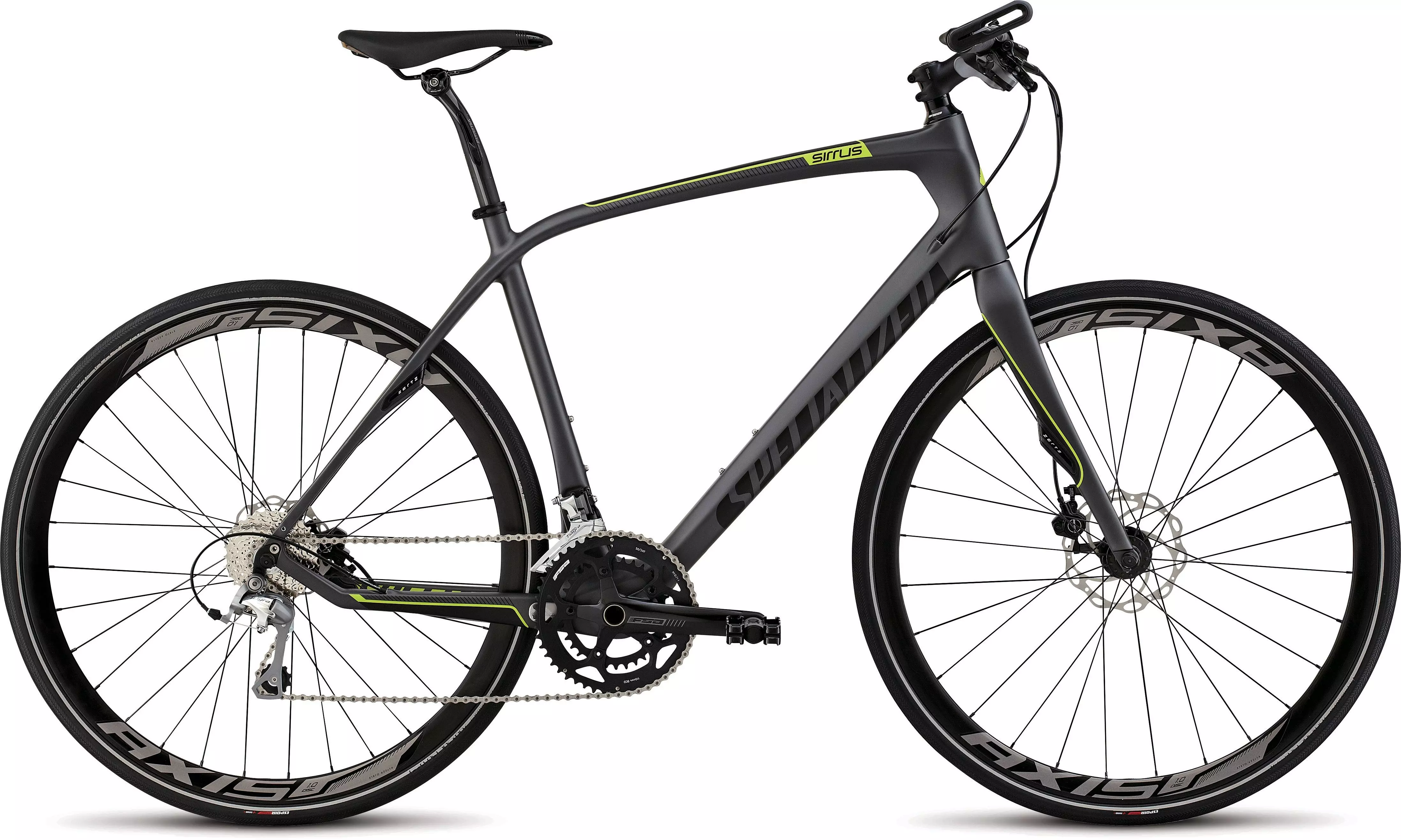

With a new FACT 9r carbon frame and light, efficient Shimano drivetrain, the Sirrus Comp Carbon Disc is up for any challenge and will do it as fast you want, with the added benefit of flat bar convenience for getting around in urban environments, and dependable disc brakes for maximum stopping power.
Lightweight FACT 9r carbon frame w/ Fitness Geometry and Zertz for speed and comfort
FACT carbon full monocoque fork w/ Zertz for a lightweight and forgiving ride
Specialized Espoir Sport Reflect, 700x30c tires for performance and visibility
Specialized Body Geometry Targa, lock-on grips w/ integrated bar end for no-slip performance
Tektro Gemini, hydraulic disc brakes for maximum stopping power
Shimano Tiagra, 10-speed derailleur for plenty of gearing options
Body Geometry Targa Comp w/ hollow Cr-Mo rails for comfort and performance
Compatible with Specialized Plug + Play Fender Set
Technical Specifications
FRAMESET
FRAME
Specialized Sirrus FACT 9r carbon, Fitness Geometry, Zertz, 1-1/8"" headtube
FORK
Specialized FACT carbon w/ Zertz, full monocoque
HEADSET
1-1/8"", Campy style, w/ 15mm alloy cone spacer
SEAT BINDER
Alloy, 31.6mm
WHEELS
FRONT WHEEL
AXIS 1.0 Disc
REAR WHEEL
AXIS 1.0 Disc
FRONT TIRE
Specialized Espoir Sport Reflect, 60TPI, wire bead, Double BlackBelt protection, 700x30c
REAR TIRE
Specialized Espoir Sport Reflect, 60TPI, wire bead, Double BlackBelt protection, 700x30c
DRIVETRAIN
SHIFT LEVERS
Shimano Tiagra, 10-speed
FRONT DERAILLEUR
Shimano Tiagra
REAR DERAILLEUR
Shimano Tiagra, 10-speed, long cage
CASSETTE
Shimano Tiagra, 10-speed, 12-30
CRANKSET
FSA Gossamer, forged alloy, 50/34
CHAIN
KMC X10, 10-speed, reusable Missing Link
COCKPIT
HANDLEBARS
Specialized flat, 6061 double butted alloy, 10-degree backsweep, 4-degree upsweep, 31.8mm
STEM
Specialized Comp Multi, 3D forged alloy, 4-bolt, 12-degree rise
TAPE
Specialized Body Geometry Targa, lock-on w/ integrated bar end
SADDLE
Body Geometry Targa Comp, hollow Cr-Mo rails, 155mm
SEATPOST
Specialized Pro Pave, FACT carbon, 27.2mm
BRAKES
FRONT BRAKE
Tektro Gemini, hydraulic disc, resin pads
REAR BRAKE
Tektro Gemini, hydraulic disc, resin pads
ACCESSORIES
PEDALS
Sirrus, 1.5mm Varus angle, nylon body, symmetric alloy cage, low profile bearing system, toe clip capable
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Seat-Tube Angle | 73.25° | 73.5° | 73° | 73° |
| Head-Tube Length | 150mm | 165mm | 190mm | 225mm |
| Seat-Post Length | 300mm | 350mm | 350mm | 350mm |
| Head-Tube Angle | 71° | 71.5° | 72° | 72° |
| Chain-Stay Length | 435mm | 435mm | 435mm | 435mm |
| Top-Tube Length, Horizontal | 570mm | 580mm | 600mm | 620mm |
| Front-Center | 627mm | 635mm | 645mm | 666mm |
| Handle-Bar Width | 580mm | 600mm | 600mm | 620mm |
| Stand-Over Height | 752mm | 785mm | 822mm | 861mm |
| Seat-Tube Length, B-B Center to Top | 440mm | 485mm | 530mm | 570mm |
| Fork Rake | 51mm | 51mm | 51mm | 51mm |
| B-B Drop | 70mm | 70mm | 70mm | 70mm |
| Stack | 574mm | 591mm | 616mm | 650mm |
| Reach | 395mm | 403mm | 410mm | 420mm |
| Trail | 63mm | 60mm | 57mm | 57mm |
| Wheelbase | 1051mm | 1060mm | 1070mm | 1091mm |
| Crank Length | 170mm | 173mm | 173mm | 175mm |
| Stem Length | 90mm | 90mm | 105mm | 105mm |
