We believe that at the heart of every rider is an adventurer, ready to seek out new…

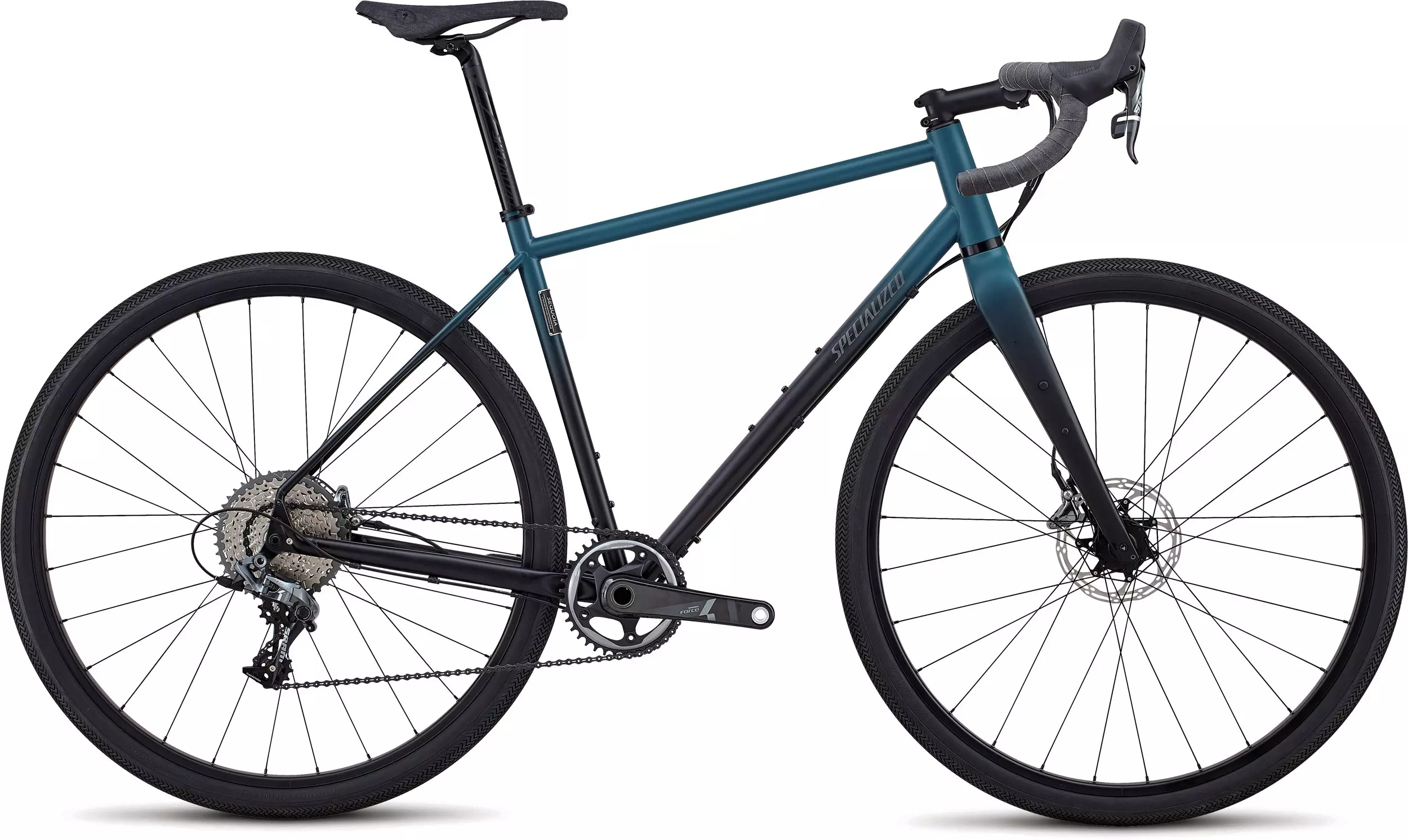

We believe that at the heart of every rider is an adventurer, ready to seek out new roads, regardless of whether they're paved or not. And for this reason, we created a bike that's built to handle anything. The Sequoia Expert eliminates the need to choose from a dedicated touring rig or a road bike, instead combining the two in a single, genre-shattering bike.
The Sequoia's path to adventure starts at the frame, which we constructed from a mix of Premium Cr-Mo tubing and stainless steel. This material is coveted for its strength, respectable weight, and tuned ride quality. And we took this a step further by selecting tubes that are specific to each frame size, further ensuring that every frame rides exactly as we intended.
Of course, this is only a piece of the equation, with the next being its dedicated Adventure Geometry. This geometry is unique in that it skews the line between a traditional road bike and a dedicated touring rig. You'll find an ample wheelbase and low bottom bracket for control, but the chainstays and tube angles ensure that you'll be able to travel efficiently and quickly, regardless of whether or not your rig is loaded.
Digging into the details, the frame is outfitted with an ample number of mounts for water, racks, and fenders. And for the build, we included a carbon fork and reliable parts, like a SRAM Force 1 groupset, powerful hydraulic disc brakes, and hand-built Cruzero wheels that are cased in wide, 2Bliss Ready tires.
The Sequoia is built from our Premium Cr-Mo, size-specific tubing. This ensures that every frame is strong, light, and capable, while every frame size rides exactly as we intended. This philosophy is furthered with our Adventure Geometry that provides ample confidence over rough and smooth terrain, alike. And lastly, we equipped this frame with fender & rack mounts to make sure you'll be well equipped whenever adventure strikes.
A beefy FACT carbon fiber fork is sure to take the sting out of harsh roads. And when you're deep into said roads, you'll be thankful for the extra water bottle mount found on its fork leg.
Hand-built Adventure Gear Cruzero wheels are cased in 700x42mm 2Bliss Ready tires to be tough, strong, and fast rolling. It's the ideal wheelset for anyone looking to skip town at speed.
FRAME
Heat-treated custom-butted Premium Cr-Mo & stainless steel size- specific tubing, internal light cable routing, Adventure Geometry, flat disc mount, fender/rack mounts, stainless steel drive-side chainstay
FORK
Specialized FACT carbon, tapered, internal light cable routing, flat mount disc, water bottle/rack/fender mounts
SEAT BINDER
Specialized, alloy, 29.8mm
RIMS
700C disc, 15mm rim depth, 25mm internal width, w/ valve cover, 32h
FRONT HUB
Cruzero front hub, anodized
REAR HUB
Cruzero rear hub, anodized
SPOKES
DT Swiss w/ Self-locking threads, 2.0/1.8/2.0
FRONT TIRE
Specialized Adventure Gear Sawtooth, 2Bliss Ready, 700x42mm
REAR TIRE
Specialized Adventure Gear Sawtooth, 2Bliss Ready, 700x42mm
INNER TUBES
Standard, Presta valve
SHIFT LEVERS
SRAM Force hydraulic
REAR DERAILLEUR
SRAM Force 1, Type 2.1, long cage, 11-speed
CASSETTE
Shimano XT, 11-speed, 11-42t
CRANKSET
SRAM Force 1, 165mm crankarm, X-Sync chaingring
CHAINRINGS
38T
BOTTOM BRACKET
SRAM GXP, 68mm, no spacer
CHAIN
KMC X11SL, 11-speed w/ Missing Link™
HANDLEBARS
Specialized Adventure Gear Hover
STEM
Specialized Pro SL, alloy, 4-bolt
TAPE
Anza canvas tape
SADDLE
Anza, hollow Cr-Mo rails, aluminum bumper
SEATPOST
Specialized, alloy, single bolt, 21mm offset, 30.9mm
REAR BRAKE
SRAM Force 1, hydraulic disc, 160mm rotor
FRONT BRAKE
SRAM Force 1, hydraulic disc, 160mm rotor
PEDALS
Nylon, 105x78x28mm, loose balls w/ reflectors
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
50 | 52 | 54 | 56 | 58 | 61 | |
---|---|---|---|---|---|---|
Crank Length | 165mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
Handlebar Width | 400mm | 420mm | 440mm | 440mm | 460mm | 460mm |
Stem Length | 80mm | 90mm | 90mm | 100mm | 100mm | 110mm |
Saddle Width | 143mm | 143mm | 143mm | 143mm | 143mm | 143mm |
Seatpost Length | 350mm | 400mm | 400mm | 400mm | 400mm | 400mm |
Stack | 525mm | 546mm | 566mm | 584mm | 604mm | 625mm |
Reach | 372.2mm | 380.8mm | 387.8mm | 396.9mm | 405.9mm | 412mm |
Head Tube Length | 110mm | 130mm | 150mm | 170mm | 190mm | 90mm |
Head Tube Angle | 70° | 70.5° | 71.5° | 71.5° | 72° | 72.5° |
BB Height | 289mm | 289mm | 292.5mm | 292mm | 294mm | 294mm |
BB Drop | 65mm | 65mm | 66.5mm | 67mm | 70mm | 70mm |
Trail | 61mm | 64mm | 67mm | 67mm | 74mm | 77mm |
Fork Length, Full | 400mm | 400mm | 400mm | 400mm | 400mm | 400mm |
Fork Rake/Offset | 50mm | 50mm | 50mm | 50mm | 50mm | 50mm |
Front Center | 595mm | 606mm | 611mm | 626mm | 637mm | 644mm |
Chainstay Length | 434.9mm | 434.9mm | 435.1mm | 435.2mm | 435.7mm | 435.7mm |
Wheelbase | 1021mm | 1032mm | 1037mm | 1053mm | 1064mm | 1071mm |
Top Tube Length, Horizontal | 508mm | 522mm | 550mm | 570mm | 587mm | 603mm |
Bike Standover Height | 736mm | 750mm | 772mm | 791mm | 812mm | 832mm |
Seat Tube Length | 440mm | 460mm | 480mm | 500mm | 520mm | 540mm |
Seat Tube Angle | 73° | 73.3° | 73.5° | 74° | 75.5° | 75.5° |
For safety warning please refer to the documentation in the Manual Downloads section of this page.
