If you've ever felt torn between a "traditional" road bike and a dedicated touring…

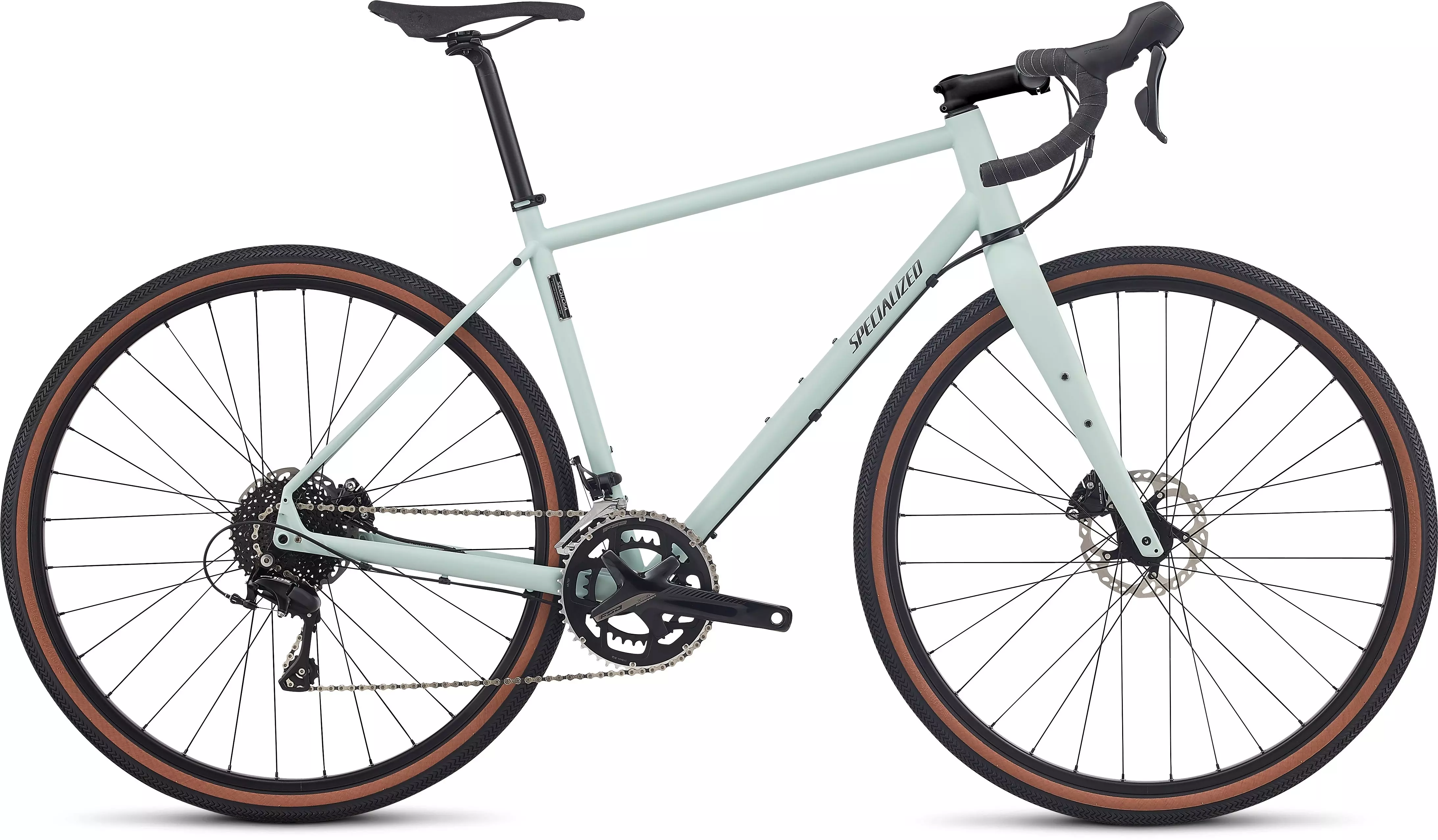

If you've ever felt torn between a "traditional" road bike and a dedicated touring rig, you're not alone. Now, though, the Sequoia Elite gives you both by combining the two into one genre-bending bike. It has everything you need to hit the road and never look back.
The Sequoia's path to adventure starts at the frame, which we constructed from Premium Cr-Mo tubing. This material is coveted for its strength, respectable weight, and tuned ride quality. And we took this a step further by selecting tubes that are specific to each frame size, further ensuring that every frame rides exactly as we intended.
Of course, this is only a piece of the equation, with the next being its dedicated Adventure Geometry. This geometry is unique in that it skews the line between a traditional road bike and a dedicated touring rig. You'll find an ample wheelbase and low bottom bracket for control, but the chainstays and tube angles ensure that you'll be able to travel efficiently and quickly, regardless of whether or not your rig is loaded.
Digging into the details, the frame is outfitted with an ample number of mounts for water, racks, and fenders. And for the build, we included a carbon fork and reliable parts, like a mix of Shimano 105 and RS505 shift levers, powerful hydraulic disc brakes, and hand-built Hayfield wheels that are cased in wide, 2Bliss Ready tires.
The Sequoia is built from our Premium Cr-Mo, size-specific tubing. This ensures that every frame is strong, light, and capable, while every frame size rides exactly as we intended. This philosophy is furthered with our Adventure Geometry that provides ample confidence over rough and smooth terrain, alike. And lastly, we equipped this frame with fender & rack mounts to make sure you'll be well equipped whenever adventure strikes.
A beefy FACT carbon fiber fork is sure to take the sting out of harsh roads. And when you're deep into said roads, you'll be thankful for the extra water bottle mount found on its fork leg.
The Sawtooth is THE adventure tire of choice, developed to handle any road surface and to be tough enough to withstand the rigors of exploration. The tread offers sharp angles and edges to hook onto any surface, while the Endurant casing reinforces the sidewall for added protection and high carrying loads.
FRAME
Premium Cr-Mo size-specific tubing, internal light cable routing, Adventure Geometry, flat disc mount, fender/rack mounts
FORK
Specialized FACT carbon, tapered, internal light cable routing, flat mount disc, water bottle/rack/fender mounts
SEAT BINDER
Specialized, alloy, 29.8mm
RIMS
700C disc, 15mm rim depth, 25mm internal width, w/ valve cover, 32h
FRONT HUB
Front Hub, anodized
REAR HUB
Hayfield rear hub, anodized
SPOKES
Stainless, 14g
FRONT TIRE
Specialized Adventure Gear Sawtooth, 2Bliss Ready, 700x42mm
REAR TIRE
Specialized Adventure Gear Sawtooth, 2Bliss Ready, 700x42mm
INNER TUBES
Standard, Presta valve
SHIFT LEVERS
Shimano RS505, flat mount
FRONT DERAILLEUR
Shimano 105, clamp-on
REAR DERAILLEUR
Shimano 105, GS cage, 11-speed
CASSETTE
Sunrace, 11-speed, 11-36t
CRANKSET
FSA Gossamer Pro
CHAINRINGS
48/32T
BOTTOM BRACKET
68mm, BSA
CHAIN
KMC X11, 11-speed w/ Missing Link™
HANDLEBARS
Specialized Adventure Gear Hover
STEM
Specialized, 3D forged alloy, 4-bolt, 7-degree rise
TAPE
Anza canvas tape
SADDLE
Anza, hollow Cr-Mo rails, aluminum bumper
SEATPOST
Alloy, 2-bolt, 25mm offset, 27.2mm
REAR BRAKE
Shimano RS505, hydraulic disc
FRONT BRAKE
Shimano RS505, hydraulic disc
PEDALS
Nylon
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
50 | 52 | 54 | 56 | 58 | 61 | |
---|---|---|---|---|---|---|
Crank Length | 165mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
Handlebar Width | 400mm | 420mm | 440mm | 440mm | 460mm | 460mm |
Stem Length | 80mm | 90mm | 90mm | 100mm | 100mm | 110mm |
Saddle Width | 143mm | 143mm | 143mm | 143mm | 143mm | 143mm |
Seatpost Length | 350mm | 400mm | 400mm | 400mm | 400mm | 400mm |
Stack | 525mm | 546mm | 566mm | 584mm | 604mm | 625mm |
Reach | 372.2mm | 380.8mm | 387.8mm | 396.9mm | 405.9mm | 412mm |
Head Tube Length | 110mm | 130mm | 150mm | 170mm | 190mm | 90mm |
Head Tube Angle | 70° | 70.5° | 71.5° | 71.5° | 72° | 72.5° |
BB Height | 289mm | 289mm | 292.5mm | 292mm | 294mm | 294mm |
BB Drop | 65mm | 65mm | 66.5mm | 67mm | 70mm | 70mm |
Trail | 61mm | 64mm | 67mm | 67mm | 74mm | 77mm |
Fork Length, Full | 400mm | 400mm | 400mm | 400mm | 400mm | 400mm |
Fork Rake/Offset | 50mm | 50mm | 50mm | 50mm | 50mm | 50mm |
Front Center | 595mm | 606mm | 611mm | 626mm | 637mm | 644mm |
Chainstay Length | 434.9mm | 434.9mm | 435.1mm | 435.2mm | 435.7mm | 435.7mm |
Wheelbase | 1021mm | 1032mm | 1037mm | 1053mm | 1064mm | 1071mm |
Top Tube Length, Horizontal | 508mm | 522mm | 550mm | 570mm | 587mm | 603mm |
Bike Standover Height | 736mm | 750mm | 772mm | 791mm | 812mm | 832mm |
Seat Tube Length | 440mm | 460mm | 480mm | 500mm | 520mm | 540mm |
Seat Tube Angle | 73° | 73.3° | 73.5° | 74° | 75.5° | 75.5° |
