2014 Safire
0 Reviews
The aluminum Safire FSR Comp features 120mm of FSR suspension, a custom Fox Float…
Product Details

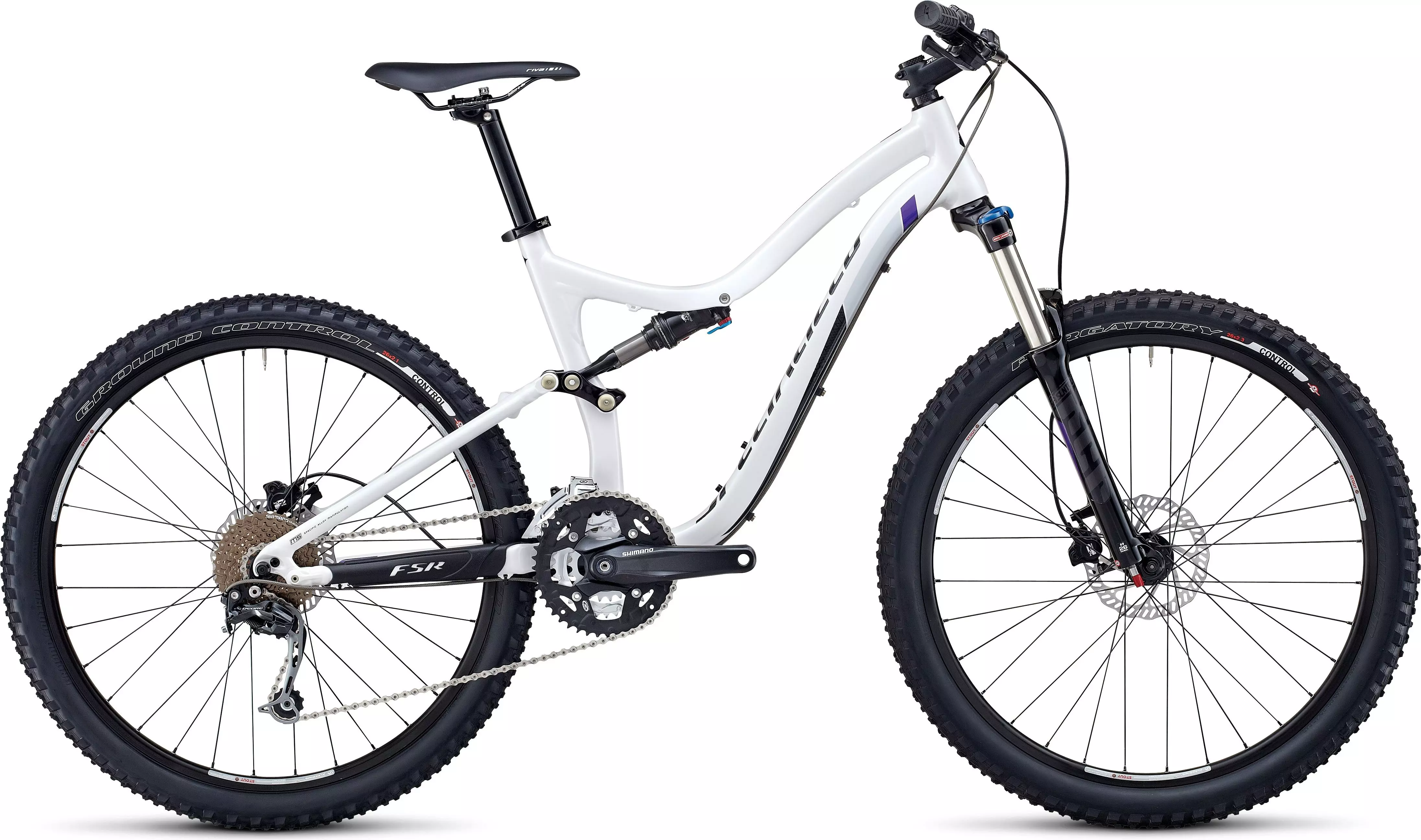

The aluminum Safire FSR Comp features 120mm of FSR suspension, a custom Fox Float CTD Evolution rear shock with AUTOSAG, Suntour XTR 26 coil-spring fork, and Tektro Draco 2 hydraulic disc brakes for an ultra-capable women's trail bike.
M5 manipulated alloy, 120mm-travel frame with Women's XC Trail Geometry and tubesets, tapered headtube, sealed cartridge bearing pivots, and direct derailleur mount makes for one tough and lightweight trail machine
FOX Float CTD Evolution shock with AUTOSAG and custom tune features ProPedal, plus 3 compression settings: Climb, Trail and Descend
Responsive Suntour XCR 26 coil spring fork with 120mm of travel uses externally adjustable rebound and lockout for fine-tuned bump performance
Shimano Alivio crankset and Deore Shadow rear derailleur provide efficient and reliable performance
Tektro Draco 2 hydraulic disc brakes and short-reach levers with Light Wave rotors create increased control and superior stopping power for more confident descents
Body Geometry Riva Comp Women's saddle features generous padding for all-day performance and comfort
Technical Specifications
FRAMESET
FRAME
Safire M5 hydroformed tubing, Women's XC Trail Geometry and tubesets, tapered headtube, DMD, Command Post routing, sealed cartridge bearing pivots, replaceable derailleur hanger, 120mm travel
HEADSET
1-1/8 and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings
SEAT BINDER
Specialized 7050 alloy, QR, 34.9mm
SUSPENSION
REAR SHOCK
Custom FOX Float CTD Evolution w/ AUTOSAG for Safire, Climb, Trail, Descend settings and reb adj., 165x38mm
FORK
SR Suntour XCR 26, custom spring weights, lockout, reb adj., 120mm travel
WHEELS
RIMS
Custom disc, alloy double-wall, pin joint, w/ eyelets, 24mm, 32h
FRONT HUB
Specialized Hi Lo disc, loose ball, machined disc, QR, 32h
REAR HUB
Specialized Hi Lo disc, double-sealed cartridge bearings, QR, 32h
SPOKES
Stainless, 15g
FRONT TIRE
Specialized Purgatory Control, 2Bliss Ready, 26x2.3"", aramid bead, 60 TPI
REAR TIRE
Ground Control, 2Bliss Ready, 26x2.1"", wire bead, 60 TPI
INNER TUBES
Ultralight presta valve
DRIVETRAIN
FRONT DERAILLEUR
Shimano SLX M660, E-type for DMD, top-swing, bottom-pull
REAR DERAILLEUR
Shimano Deore Shadow M592, 9-speed, SGS cage
SHIFT LEVERS
Shimano Alivio, 9-speed, trigger
CASSETTE
Shimano HG-20, 9-speed, 11-34
CHAIN
KMC X9, nickel plate, reusable Missing Link
CRANKSET
Shimano Alivio, Octalink spline, S/M: 170mm, L: 175mm
CHAINRINGS
44/32/22
BOTTOM BRACKET
Shimano BB-ES25, Octalink spline, cartridge bearings, 73mm shell
COCKPIT
SADDLE
Specialized Women's Body Geometry Riva Comp, hollow Cr-Mo rails, 155mm
SEATPOST
Specialized 6061 alloy, 2-bolt, micro-adjust, 30.9mm, 350mm
STEM
Specialized XC Trail, 6061 alloy, 4-bolt, 8-degree rise, 31.8mm clamp
HANDLEBARS
Specialized XC, low-rise bar, 6061 butted alloy, 680mm wide, 8-degree backsweep, 6-degree upsweep, 31.8mm
GRIPS
Specialized Sip Grip, non-locking
BRAKES
FRONT BRAKE
Tektro Draco 2, alloy-backed ceramic pads, Light Wave 160mm rotor
REAR BRAKE
Tektro Draco 2, alloy-backed ceramic pads, Light Wave 160mm rotor
BRAKE LEVERS
Tektro Draco 2, hydraulic lever, women's shorter reach
ACCESSORIES
PEDALS
Alloy platform, 9/16""
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | |
|---|---|---|---|
| Ground-Top | 885mm | 904mm | 913mm |
| Bottom Bracket Height - Low Setting | 338mm | 338mm | 338mm |
| Top Tube Length (Horizontal) | 540mm | 565mm | 600mm |
| Head Tube Height | 110mm | 130mm | 140mm |
| Head Tube Angle - Low Setting | 68.5° | 68.5° | 68.5° |
| Seat Tube Angle (Actual) - Low Setting | 70.5° | 70.5° | 70.5° |
| Seat Tube Angle (Effective) - Low Setting | 74.5° | 74.5° | 74.5° |
| Top Tube Length (Actual) | 505mm | 527mm | 559mm |
| Seat Tube Length - Center to Top | 394mm | 431mm | 470mm |
| Wheel Base | 1066mm | 1093mm | 1129mm |
| Standover Height | 688mm | 689mm | 695mm |
| Stack | 547mm | 566mm | 575mm |
| Reach | 388mm | 408mm | 440mm |
| Chainstay Length | 420mm | 420mm | 420mm |
| Crank Length | 165mm | 170mm | 175mm |
| Handlebar Width | 680mm | 680mm | 680mm |
| Stem Length | 60mm | 75mm | 75mm |
| Seatpost Length | 350mm | 350mm | 350mm |
