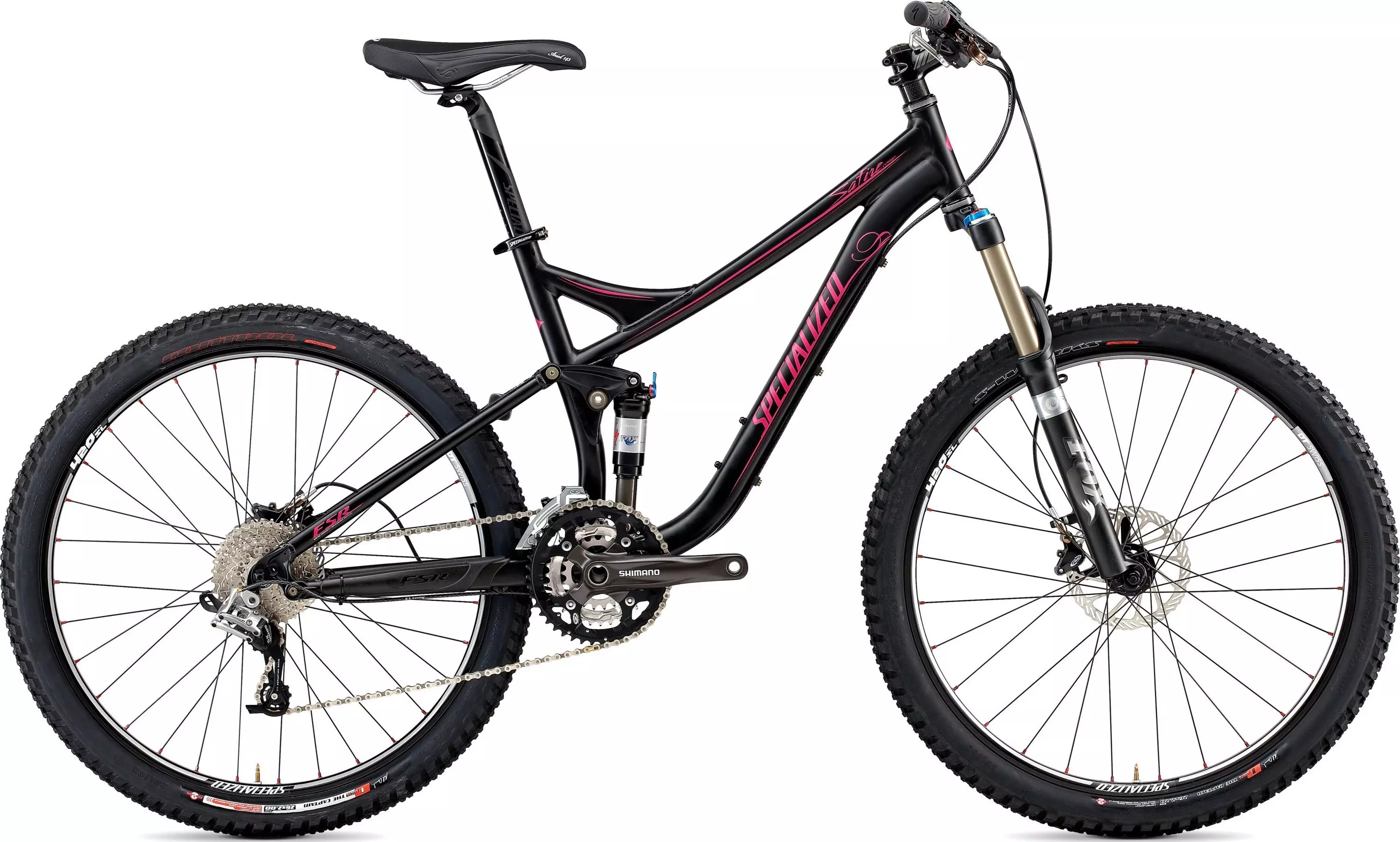

2010 Safire Comp
0 Reviews
If you aren't already obsessed with trail riding, the Safire will inspire you to…
Product Details
If you aren't already obsessed with trail riding, the Safire will inspire you to keep coming back for more. With an intuitive FlowControl Brain damper, FSR suspension and an ultra low standover frame that's balanced for climbing and descending, it's easily the most versatile women's XC Trail bike on the market and the most fun you'll have on the trail.
Custom Shimano crankset promises high quality and a comfortable gear ratio
Quality DT Swiss sleeved rims deliver the durability needed for varying terrain
130mm-travel Fox F130 RL alloy fork with compression/rebound adjust and lockout for fine-tuned front end
Avid Elixir R SL hydraulic disc brakes with alloy backed pads for durable, balanced and controlled stopping power
Fox Triad rear shock with on-the-fly 3-position damping enables lockout, efficient ProPedal and fully open settings for customized bump performance
Specialized Ariel women's saddle with hollow Cr-Mo rails features lightweight foam cushioning and a Body Geometry ergonomic cutout for pressure relief
S-Works The Captain front tire with Aramid bead and The Captain Control rear tire combine for versatile XC performance approved by XC legend Ned Overend
FSR M5 manipulated alloy frame with women's-specific ORE down/top tubes, sealed cartridge bearing pivots and DMD derailleur mount makes this one tough and lightweight trail trophy
Technical Specifications
FRAMESET
FRAME
Safire FSR M5 manipulated alloy frame w/ women's ORE TT/DT, sealed cartridge bearing pivots, DMD front, replaceable derailleur hanger, disc only, 120mm travel
HEADSET
1-1/8"" Threadless, 10mm insertion alloy cups, sealed cartridge bearing
SEAT BINDER
7050 hard annodized alloy collar w/ QR, 34.9mm clamp ID, black
SUSPENSION
REAR SHOCK
Fox Triad, custom on-the-fly 3-position switch 1) lock out 2) Open 3) ProPedal pedal assisting damping, rebound adj., 7.25x1.75""
FORK
Fox F130 RL, 130mm travel, compression and rebound adj. w/ LO, alloy steerer
WHEELS
RIMS
Custom DT Swiss X420SL, 24mm w/ eyelets, 28/32h
FRONT HUB
Hi Lo disc, CNC flange, sealed cartridge bearing, 9mm DT RWS, alloy QR, 28h
REAR HUB
Custom Shimano M525 SL, alloy QR, 32h
SPOKES
DT Swiss 1.8mm stainless
FRONT TIRE
S-Works The Captain, 26x2.2"", 120 TPI, tubeless ready aramid bead, dual compound
REAR TIRE
The Captain Control, 26x2.0"", 60 TPI, tubeless ready Aramid bead, dual compound
INNER TUBES
Ultralight presta valve
DRIVETRAIN
FRONT DERAILLEUR
Shimano M660 SLX, DMD, top swing, dual pull
REAR DERAILLEUR
SRAM X-9, 9-speed, mid cage
SHIFT LEVERS
SRAM X-7, aluminum trigger
CASSETTE
Shimano HG61, 9-speed, 11-34t
CHAIN
SRAM PC-971, 9-speed w/Power Link
CRANKSET
Custom Shimano FC-M542, S/M: 170mm, L: 175mm
CHAINRINGS
44A x 32A x 22S, 4-bolt, 104/64mm
BOTTOM BRACKET
Custom Shimano integrated
COCKPIT
SEATPOST
2014 butted alloy, single bolt setback, 30.9mm
STEM
3D forged alloy, adjustable rise, 31.8mm clamp
HANDLEBARS
Specialized XC low rise bar, butted 7050 alloy, 31.8mm, 640mm wide, 8 degree back sweep, 6 degree up
GRIPS
Specialized waffle lock on grip
SADDLE
Specialized women's Ariel, hollow Cr-Mo rails, 143mm
BRAKES
FRONT BRAKE
Custom Avid Elixir SL, alloy backed semi-met organic pads, 160mm rotor
REAR BRAKE
Custom Avid Elixir SL, alloy backed semi-met organic pads,S/M: 140mm, L: 160mm rotor
BRAKE LEVERS
Custom Avid Elixir SL Hydraulic, tool-less adj. reach
ACCESSORIES
PEDALS
None
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | |
|---|---|---|---|
| Ground-Top | 897mm | 916mm | 925mm |
| Bottom Bracket Height - Low Setting | 335mm | 335mm | 335mm |
| Top Tube Length (Horizontal) | 542mm | 565mm | 605mm |
| Head Tube Height | 100mm | 120mm | 130mm |
| Head Tube Angle - Low Setting | 68.5° | 68.5° | 68.5° |
| Seat Tube Angle (Actual) - Low Setting | 71° | 71° | 71° |
| Seat Tube Angle (Effective) - Low Setting | 74.5° | 74.5° | 74.5° |
| Top Tube Length (Actual) | 524mm | 547mm | 583mm |
| Seat Tube Length - Center to Top | 394mm | 431mm | 470mm |
| Wheel Base | 1068mm | 1093mm | 1134mm |
| Standover Height | 690mm | 696mm | 717mm |
| Stack | 562mm | 581mm | 590mm |
| Reach | 386mm | 404mm | 441mm |
| Chainstay Length | 420mm | 420mm | 420mm |
| Crank Length | 170mm | 170mm | 175mm |
| Handlebar Width | 640mm | 640mm | 640mm |
| Stem Length | 60mm | 75mm | 75mm |
| Seatpost Length | 350mm | 350mm | 350mm |
