2020 S-Works Turbo Levo SL Founder's Edition

$16,525

5

10 Reviews

Limited to just 250 bikes worldwide, the S-Works Turbo Levo SL Founder's Edition…

Product Details

Add Icon

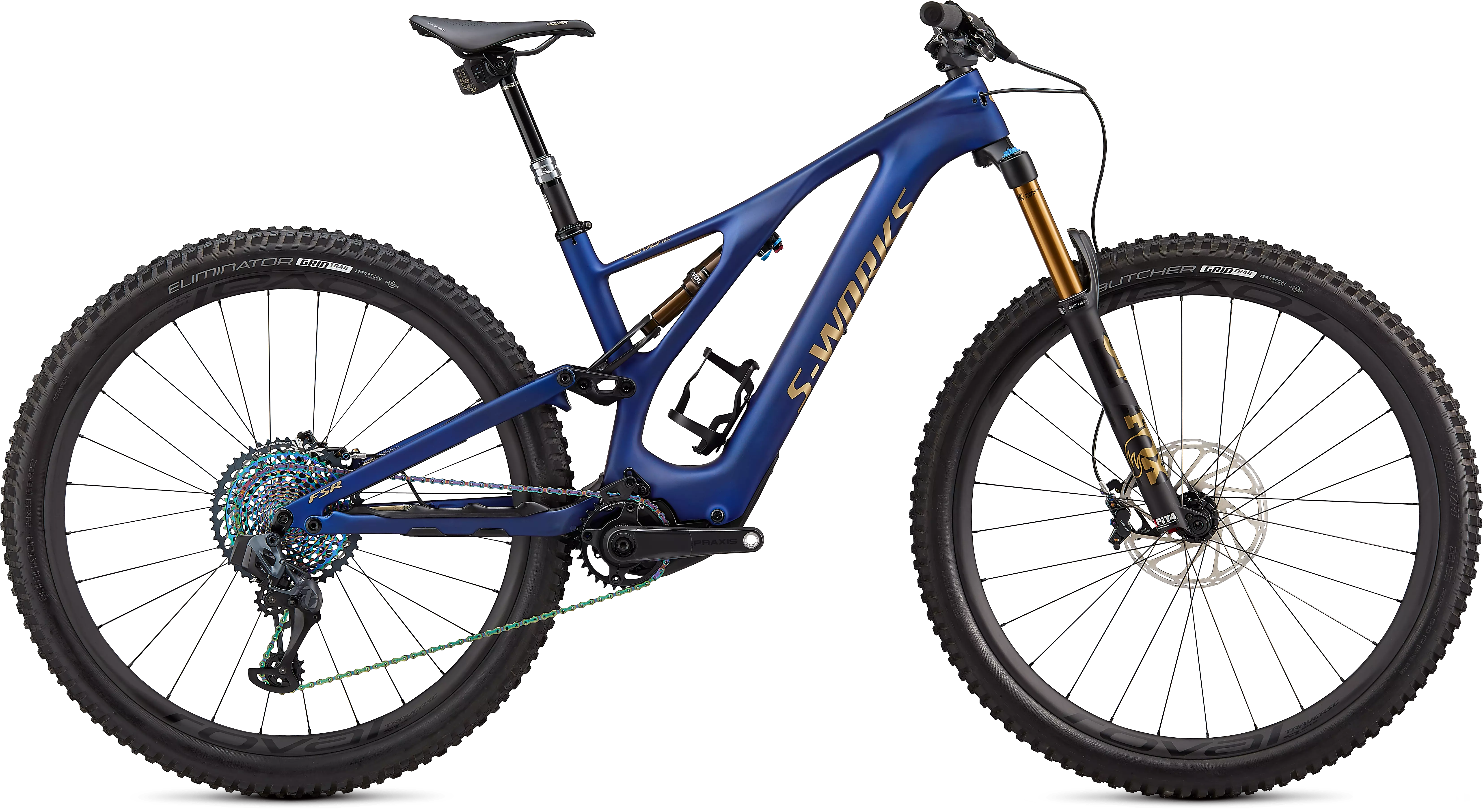

Limited to just 250 bikes worldwide, the S-Works Turbo Levo SL Founder's Edition pulls out all the stops. Each individually-numbered Founder's Edition will come with a very special build where it's all in the details—gold foil graphics laid over our Spectraflair paint in satin finish, a custom Power saddle with a matching gold "S" graphic, matching gold FOX fork and rear shock graphics, SRAM AXS wireless drivetrain with "rainbow" colored cassette, chain, and brake hardware, as well as two Range Extenders for the ultimate Power to Ride More Trails. The S-Works Turbo Levo SL Founder's Edition is sure to be an instant classic.

  • The Turbo Levo SL looks like a Stumpjumper and, out on the trail, feels like one too. That’s no mistake. We aimed to build a Stumpjumper with a bit more boost to it and that’s exactly what you get—a Sidearm chassis with just the right amount of front-to-rear stiffness and 150mm of smooth, custom-tuned FOX front and rear suspension. To top it all off, we constructed this Turbo Levo SL chassis entirely from our light-yet-strong FACT 11m carbon.

  • The Turbo Levo SL looks like a Stumpjumper and, out on the trail, feels like one too. That’s no mistake. We aimed to build a Stumpjumper with a bit more boost to it and that’s exactly what you get—a Sidearm chassis with just the right amount of front-to-rear stiffness and 150mm of smooth, custom-tuned FOX front and rear suspension. To top it all off, we constructed this Turbo Levo SL chassis entirely from our light-yet-strong FACT 11m carbon.

  • The lightweight SL 1.1 motor doubles your effort with as much as 240 watts of silent and powerful assistance to your pedals. The motor’s responsive torque curve delivers power perfectly in-tune with your normal riding cadence and leaves no resistance when you’re riding without power assistance.

  • The lightweight SL 1.1 motor doubles your effort with as much as 240 watts of silent and powerful assistance to your pedals. The motor’s responsive torque curve delivers power perfectly in-tune with your normal riding cadence and leaves no resistance when you’re riding without power assistance.

  • Worried about running out of power? No problem. The Turbo Levo SL eats up big miles and long days. And if you’re looking for even more miles, the included range extender boosts your range by another 50 percent. On top of all that, our Mission Control App can handle battery management automatically, ensuring your battery will last as long as you need it to.

  • Worried about running out of power? No problem. The Turbo Levo SL eats up big miles and long days. And if you’re looking for even more miles, the included range extender boosts your range by another 50 percent. On top of all that, our Mission Control App can handle battery management automatically, ensuring your battery will last as long as you need it to.

  • Assist up to 20 mph / 32 km/h

  • Assist up to 20 mph / 32 km/h

Technical Specifications

Add Icon

E-Bike

Motor

Specialized SL 1.1, custom lightweight motor

UI/Remote

Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®, w/Handlebar remote

Battery

Specialized SL1-320, fully integrated, 320Wh

Charger

Custom charger, 48V System w/ SL system charger plug

Wiring Harness

Custom Specialized wiring harness w/ chargeport

Frameset

Frame

FACT 11m full carbon, 29 Trail Geometry, Integrated down tube battery, enclosed internal cable, Command Post routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel

Seat Binder

Specialized Ti-bolt-type, alloy, 38.6mm

Suspension

Rear Shock

FOX FLOAT DPS Factory, Kashima coating, 3-position adjustment, 52.5x210mm, Rx Trail Tune

Fork

FOX Factory 34 FLOAT 29, Kashima Coating, FIT4 damper, 51mm offset, 3-position adjustment, 15x110mm, tapered alloy steerer, 150mm of travel

Cockpit

Saddle

Power, Hollow Ti-Rail, Carbon Base, 155/143mm

SeatPost

RockShox Reverb AXS, 30.9mm, S: 125, M:150, L/XL: 170mm

Stem

Syntace MegaForce 2, 6-degree, 31.8mm clamp

Grips

Specialized Trail Grips

Handlebars

Specialized Trail, FACT Carbon, 6-degree upsweep, 8-degree backsweep, 27mm rise, 780mm, 31.8mm

Brakes

Front Brake

SRAM G2 ULTIMATE, 4-piston caliper, hydraulic disc, 200mm, rainbow

Rear Brake

SRAM G2 ULTIMATE, 4-piston caliper, hydraulic disc, 180mm, rainbow

Drivetrain

Shift Levers

SRAM AXS Eagle Controller

Cassette

SRAM XG-1299 Eagle, 10-50t

Rear Derailleur

SRAM XX1 Eagle AXS

Chain

SRAM XX1 Eagle

Crankset

Praxis Carbon/M30 Spindle Interface

Chainrings

SRAM X-Sync Eagle, 94 BCD, 30T

Wheels & Tires

Rims

Roval Traverse SL 29, hookless carbon, 30mm inner width, 2Bliss Ready, hand-built, 28h

Front Hub

Roval Traverse SL, sealed cartridge bearings, 15mm thru-axle, 110mm spacing

Rear Hub

Roval Traverse SL, DT Swiss Star Ratchet, 54t engagement, SRAM XD driver body, 12mm thru-axle, 148mm spacing

Front Tire

Butcher, GRID TRAIL casing, GRIPTON® compound, 29x2.3"

Spokes

DT Competition Race

Rear Tire

Eliminator, GRID TRAIL casing, GRIPTON® compound, 2Bliss Ready, 29x2.3"

Inner Tubes

Standard, Presta valve

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
SMLXL
Crank Length165mm165mm170mm170mm
Handlebar Width780mm780mm780mm780mm
Stem Length40mm40mm50mm50mm
Saddle Width155mm143mm143mm143mm
Seatpost Length125mm150mm170mm170mm
Stack606mm606mm633mm647mm
Reach415mm435mm455mm480mm
Head-Tube Length95mm95mm125mm140mm
Head-Tube Angle66°66°66°66°
B-B Height348mm348mm348mm348mm
B-B Drop27mm27mm27mm27mm
Trail111mm111mm111mm111mm
Fork Length (full)560mm560mm560mm560mm
Fork Rake/Offset51mm51mm51mm51mm
Front-Center729mm749mm781mm812mm
Chain-Stay Length437mm437mm437mm437mm
Wheelbase1165mm1185mm1217mm1248mm
Top-Tube Length (horizontal)574mm597mm629mm663mm
Bike Stand-Over Height787mm790mm807mm814mm
Seat-Tube Length390mm410mm455mm505mm
Seat-Tube Angle75.3°75°74.6°74.2°
