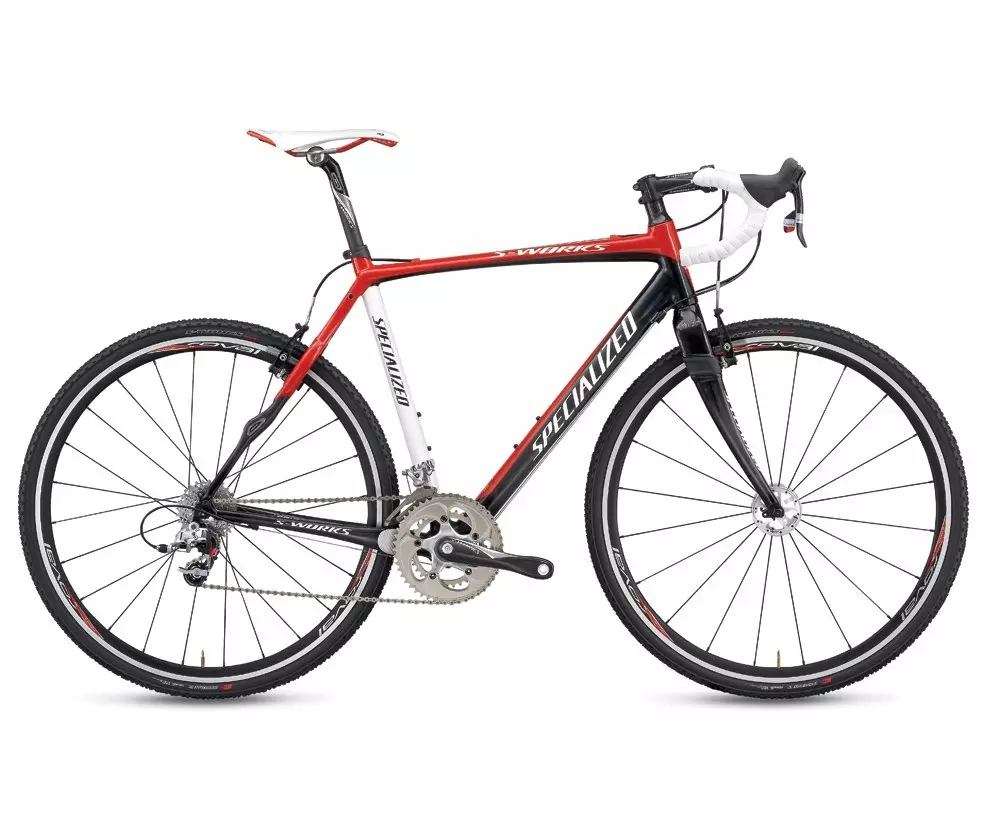

2009 S-Works Tricross Carbon
0 Reviews
POINT THE TRICROSS down anything from a gravel strewn fireroad to a pothole packed…
Product Details
POINT THE TRICROSS down anything from a gravel strewn fireroad to a pothole packed bike path or maybe even a chunk of smooth singletrack, and you'll realize that its numbness-killing chassis, predictable geometry and robust wheelset will help you redefine what's possible on two (skinny) tires.
The S-Works TriCross features our premium Az-1 construction, with the added strength and stiffness of our oversized BB shell and Zertz inserts to mute vibrations.
The S-Works Tricross carbon monocoque fork uses Speed Zertz to quell vibrations.
The S-Works Pro-Set stem uses a carbon-wrapped top cap and front cap with Ti front bolts.
The S-Works oversized carbon handlebar features a short-reach drop to keep your hands right where you want them.
Our S-Works FACT carbon crankset is light and strong, its integrated oversized design makes for high-efficiency power transfer.
The Roval Pavé SL wheelset comes ready to rock, with an E5 alloy mid-profile aero rim, cold-forged alloy 5-spoke high flange hubs, and DT aero spokes.
Technical Specifications
FRAMESET
FRAME
S-Works FACT 10m carbon, Az1 construction, semi-compact Tricross design, Zertz inserts, OS BB, rack and fender fittings
FORK
S-Works FACT carbon, monocoque construction, full carbon legs, crown and steerer w/ Speed Zertz, rack and fender fittings
HEADSET
S-Works Campy style, 1-1/8"" integrated threadless, sealed cartridge ceramic bearings w/ stainless steel races, 20mm carbon cone w/ one 10mm and two 5mm carbon spacers
SEAT BINDER
S-Works CNC alloy w/ brake stop, 32.6mm
WHEELS
FRONT TIRE
S-Works Houffalize CX, 700x32c, dual-compound tread, aramid bead, 127TPI
REAR TIRE
S-Works Houffalize CX, 700x32c, dual-compound tread, aramid bead, 127TPI
INNER TUBES
Specialized standard presta tube
RIMS
Roval Pavé SL, E5 alloy mid-profile, machined brake surface
FRONT HUB
Roval Pave SL, 20 hole, cold forged alloy five-spoke high flange, adjustable alloy axles, Roval QR
REAR HUB
Roval Pave SL, 24h, cold forged alloy five-spoke high flange, adjustable alloy axles, Roval QR
SPOKES
DT aero butted
DRIVETRAIN
FRONT DERAILLEUR
SRAM Red, 34.9mm clamp, bottom pull
REAR DERAILLEUR
SRAM Red
SHIFT LEVERS
SRAM Red Double Tap
CASSETTE
SRAM OG 1090, 10-speed 11-28t
CHAIN
SRAM 1090R, 10-speed
CRANKSET
S-Works FACT carbon, integrated oversize design
CHAINRINGS
48 x 34t
BOTTOM BRACKET
S-Works oversize integrated
COCKPIT
STEM
S-Works Pro-Set, 3D forged, carbon/alloy face plate w/ Ti bolts, carbon top cap, 4-position adjustable
HANDLEBARS
S-Works SL, FACT carbon handlebar, short-reach drop, 31.8mm
TAPE
Body Geometry Bar Phat, cork ribbon w/ neoprene padding
SADDLE
Body Geometry Phenom SL, super light foam, carbon reinforced base, hollow Ti rails, microfiber cover
SEATPOST
S-Works SL, FACT carbon w/ Zertz insert, 27.2mm
BRAKES
FRONT BRAKE
Tektro high profile linear spring cantilever, alloy, cartridge pads
REAR BRAKE
Tektro low profile linear spring cantilever, alloy, cartridge pads
BRAKE LEVERS
SRAM Red Double Tap, 10-speed
ACCESSORIES
PEDALS
Silver cage, black body, w/ toe clip and strap
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Seat-Tube Angle | 75.5° | 74.5° | 73.5° | 73° | 72.5° | 72° |
| Head-Tube Length | 110mm | 125mm | 140mm | 155mm | 170mm | 195mm |
| Seat-Post Length | 0mm | 0mm | 0mm | 0mm | 0mm | 0mm |
| Head-Tube Angle | 70° | 70.75° | 71.5° | 72° | 72.5° | 73° |
| Chain-Stay Length | 440mm | 440mm | 440mm | 440mm | 440mm | 440mm |
| Top-Tube Length, Horizontal | 515mm | 530mm | 545mm | 560mm | 575mm | 595mm |
| Front-Center | 596mm | 597mm | 597mm | 601mm | 607mm | 616mm |
| Stand-Over Height | 748mm | 770mm | 788mm | 805mm | 823mm | 849mm |
| Seat-Tube Length, B-B Center to Top | 490mm | 520mm | 540mm | 560mm | 580mm | 610mm |
| Fork Rake | 49mm | 49mm | 49mm | 47mm | 47mm | 47mm |
| B-B Drop | 71mm | 71mm | 69mm | 69mm | 67mm | 67mm |
| Trail | 75mm | 70mm | 65mm | 64mm | 61mm | 58mm |
| Wheelbase | 1026mm | 1027mm | 1028mm | 1032mm | 1038mm | 1047mm |
