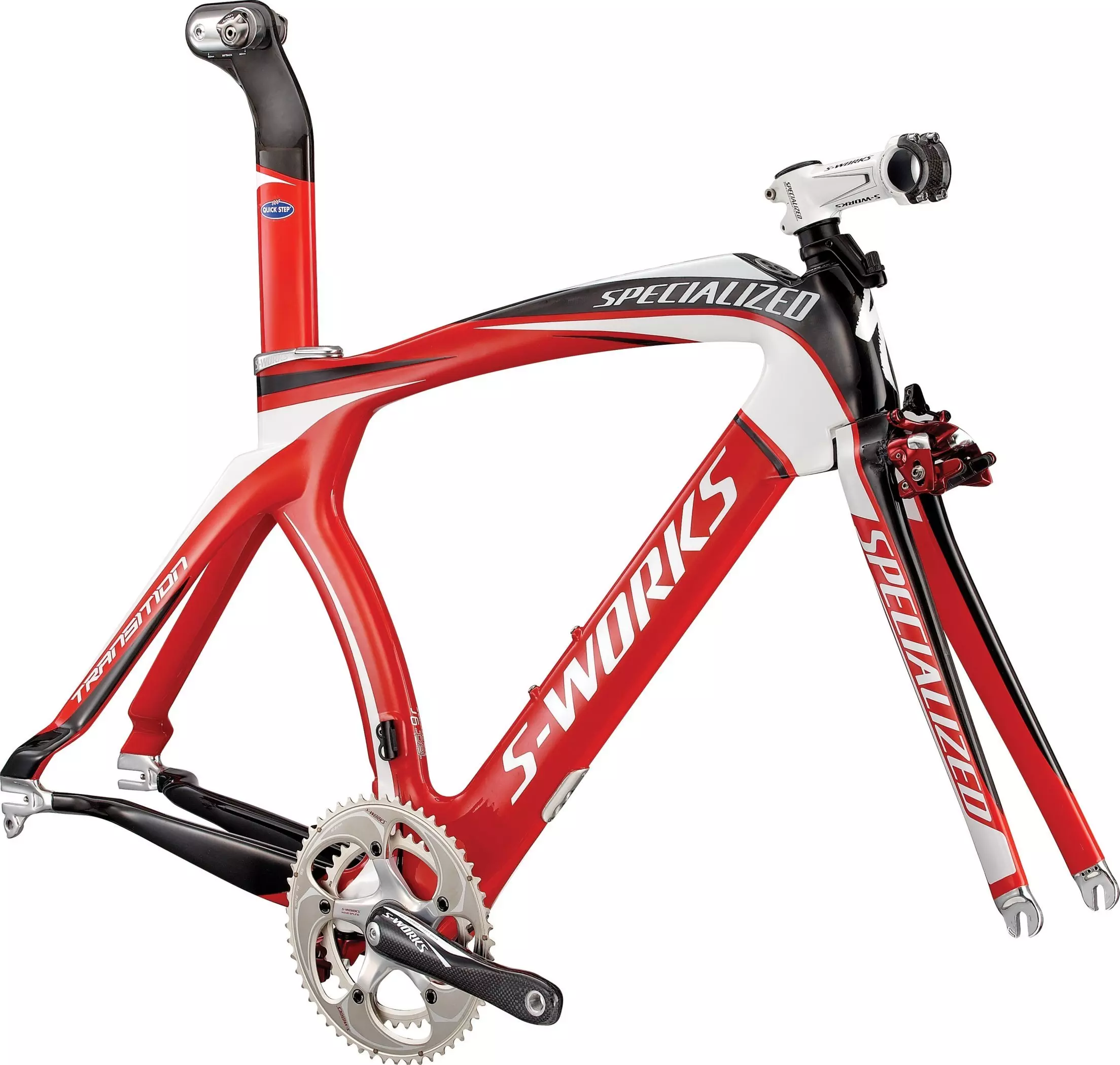

2010 S-Works Transition Module

0 Reviews

The bike that carried Saxo Bank's Fabian Cancellara to a prologue win at this year's…

Color:

Red/White/Carbon

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Product Details

The bike that carried Saxo Bank's Fabian Cancellara to a prologue win at this year's Tour of California is none other than the wind tunnel engineered Transition®. The competitive leader in aerodynamics and stiffness, the Transition gets its Autobahn speed from proprietary features like an incredibly slippery Specialized FACT carbon chassis (aluminum version also available), FACT integrated crankset, completely integrated brakes and a two-position Transition carbon seatpost.

Specialized integrated aero brakes use a center-pull front brake and hidden rear brake to reduce drag
S-Works Transition FACT 9r carbon triple monocoque frame with uni-weave features an oversized BB for maximum pedaling efficiency and kudos from riders like Fabian Cancellara
Aerodynamic FACT carbon monocoque fork with uni-weave integrates seamlessly with the full carbon frame for enhanced aerodynamics
S-Works oversized BB FACT carbon crankset combines high strength and light weight for unparalleled efficiency and power transfer
S-Works Transition carbon seastpost features 3 setback options and reversible head assembly for maximum micro-adjustment

Technical Specifications

FRAMESET

FRAME

S-Works Transition FACT 9r N'Aero tube shaping, triple monocoque construction, compact aero geometry, vertical seat adjustment, OS BB

FORK

Transition FACT N'Aero carbon, monocoque construction, 1"" steerer

HEADSET

1"" Ahead set, 30mm carbon spacers (2x10mm, 2x5mm), no top cap

SEAT BINDER

Transition Seat Clamp

DRIVETRAIN

CRANKSET

S-Works Crankset 53x39

CHAINRINGS

53 x 39T

BOTTOM BRACKET

Ceramic bearings

COCKPIT

STEM

S-Works 3D forged with carbon-wrap top and front cap

SEATPOST

S-Works Transition Aero Carbon

BRAKES

FRONT BRAKE

S-Works Aero Brake

REAR BRAKE

S-Works Aero Brake

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	XS	SM	MD	LG	XL	XXL
Head-Tube Length	90mm	100mm	110mm	120mm	135mm	150mm
BB to top of Head-Tube, Horizontal (Reach)	365mm	380mm	395mm	405mm	421mm	450mm
Seat-Post Length	450mm	450mm	450mm	450mm	450mm	450mm
Head-Tube Angle	69.5°	71.5°	72°	72°	72.5°	72.5°
Chain-Stay Length	395mm	395mm	395mm	395mm	395mm	395mm
Front-Center	577mm	575mm	589mm	602mm	621mm	652mm
Handle-Bar Width	400mm	400mm	400mm	420mm	420mm	420mm
Stand-Over Height	719mm	761mm	763mm	768mm	793mm	807mm
Seat-Tube Length, B-B Center to Top	445mm	445mm	445mm	445mm	475mm	495mm
Fork Rake	49mm	43mm	43mm	43mm	43mm	43mm
BB to top of Head-Tube, Vertical (Stack)	487mm	505mm	516mm	526mm	542mm	554mm
B-B Drop	72mm	72mm	72mm	72mm	72mm	72mm
Trail	74mm	68mm	65mm	65mm	61mm	61mm
Wheelbase	961mm	961mm	975mm	988mm	1007mm	1036mm
Crank Length	170mm	170mm	172.5mm	172.5mm	175mm	177.5mm
Stem Length	75mm	90mm	100mm	110mm	120mm	120mm
