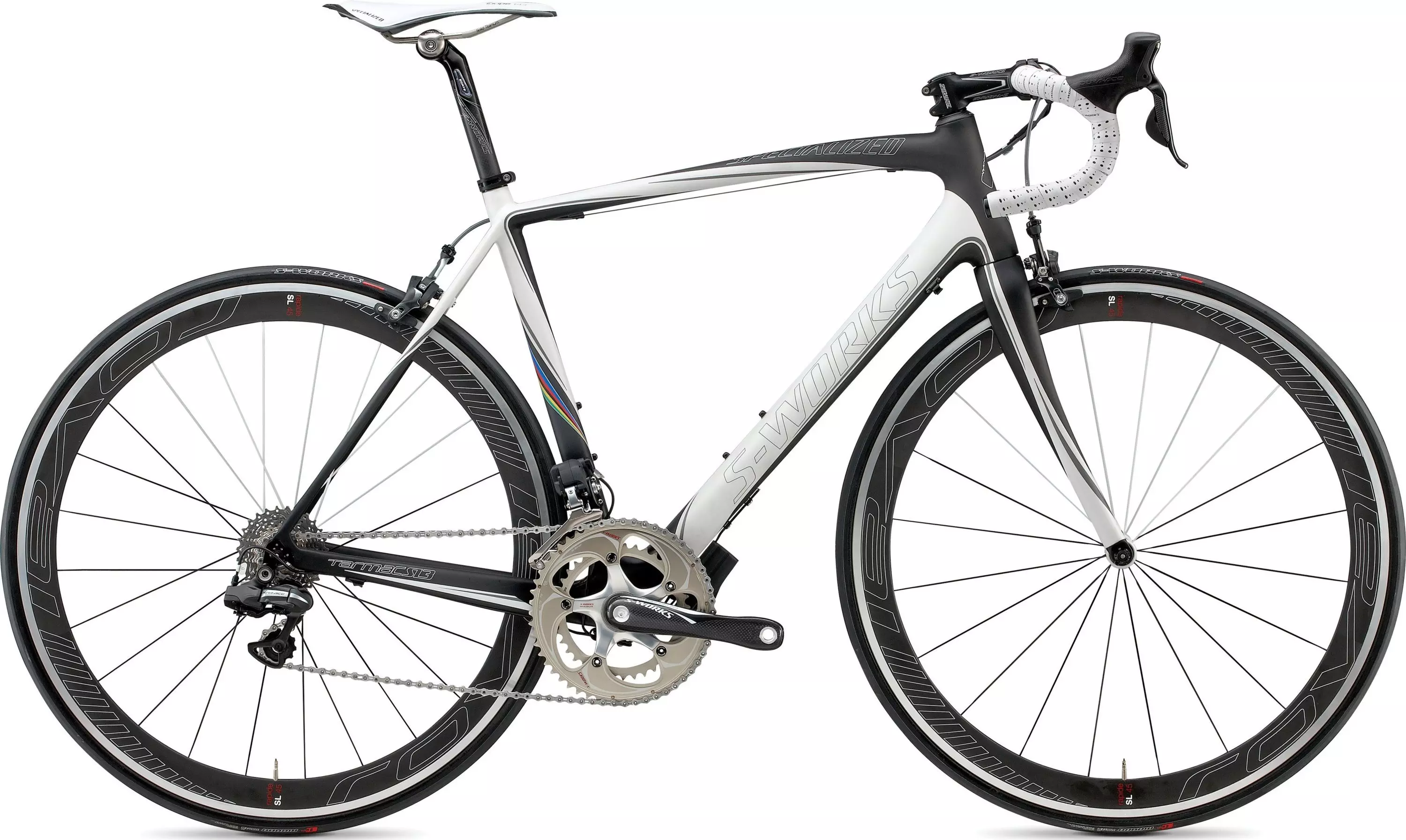

2010 S-Works Tarmac SL3 Di2

0 Reviews

Leading our pros to victory at races like Liège-Bastogne-Liège, Tour of Flanders,…

Product Details

Add Icon

Leading our pros to victory at races like Liège-Bastogne-Liège, Tour of Flanders, and countless others, the Tarmac® proves itself to be the best handling, most high-performance bike on the road. Thanks to the integration of critical components, an extremely rigid FACT carbon frame, and proprietary Body Geometry extras, we can proudly say that nothing is lighter and stiffer.

  • 3D-forged alloy stem with carbon caps and titanium hardware for pure performance

  • Stiff and adjustable S-Works FACT carbon Pave seatpost uses a Zertz insert to minimize road vibrations for greater comfort

  • S-Works oversized BB FACT carbon crankset combines high strength and light weight for unparalleled efficiency and power transfer

  • New Body Geometry Toupe Carbon saddle with hollow titanium rails is tuned for racing stiffness and universal seatpost compatibility

  • S-Works SL classic-bend carbon handlebars offer more versatile hand positioning in an optimized blend of durability and light weight

  • New ultralight Roval Rapide SL 45 wheelset with carbon/alloy hybrid rims for low aerodynamic drag with the durability of an alloy brake track

  • FACT full carbon monocoque fork with uni-weave finish integrates with the frame using an oversized race to deliver enhanced steering precision

  • Specialized puts its championship-winning blend of speed and light weight in the new FACT IS S-Works Tarmac SL3 11r carbon frame with incredibly stiff oversized BB and 1.5" lower headset bearing

Technical Specifications

Add Icon

FRAMESET

FRAME

S-Works Tarmac SL3 FACT 11r, FACT IS construction, compact race design, 1.5"" lower HS bearing, OS carbon BB shell

FORK

S-Works Tarmac SL3 FACT carbon, Uni-weave, monocoque construction, OS race for 1.5"" bearing, full carbon legs, crown and steerer

HEADSET

Aheadset Stainless Race Steel Balls w/ top cap w/ 20mm of spacers

SEAT BINDER

S-Works alloy, 32.6mm clamp

WHEELS

FRONT TIRE

S-Works Mondo Open Tubular, 700x23c, 290TPI

REAR TIRE

S-Works Mondo Open Tubular, 700x23c, 290TPI

INNER TUBES

Super Light Turbo, presta valve

FRONT WHEEL

Roval Rapide SL 45

REAR WHEEL

Roval Rapide SL 45

DRIVETRAIN

FRONT DERAILLEUR

Shimano Dura-Ace Di2

REAR DERAILLEUR

Shimano Dura-Ace Di2

SHIFT LEVERS

Shimano Dura-Ace Di2

CASSETTE

Shimano Dura Ace, 10-speed, 12-27t

CHAIN

Shimano Dura-Ace

CRANKSET

S-Works Crankset 53x39

CHAINRINGS

53 x 39T

BOTTOM BRACKET

Ceramic bearings

COCKPIT

STEM

S-Works 3D forged with carbon-wrap top and front cap

HANDLEBARS

S-Works SL Carbon, classic bend

TAPE

Specialized S-Works wrap

SADDLE

Body Geometry Toupe Carbon 143 w/ Hollow Ti rails

SEATPOST

S-Works FACT carbon w/ Zertz insert, 27.2mm

BRAKES

FRONT BRAKE

Shimano Dura-Ace

REAR BRAKE

Shimano Dura-Ace

BRAKE LEVERS

Shimano Dura-Ace Di2

ACCESSORIES

PEDALS

Silver cage/black body, w/ black toe clips and strap

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
495254565861
Seat-Tube Angle75.5°74°73.5°73.25°73°72.5°
Head-Tube Length100mm120mm145mm170mm205mm230mm
Seat-Post Length300mm350mm350mm350mm350mm350mm
Head-Tube Angle72.25°73°73°73.5°73.5°74°
Chain-Stay Length405mm405mm405mm405mm407mm410mm
Top-Tube Length, Horizontal518mm537mm548mm565mm582mm600mm
Front-Center576mm576mm583mm591mm605mm613mm
Handle-Bar Width400mm420mm420mm420mm440mm440mm
Stand-Over Height730mm755mm777mm800mm828mm857mm
Seat-Tube Length, B-B Center to Top460mm490mm510mm530mm550mm580mm
Fork Rake45mm45mm45mm43mm43mm43mm
B-B Drop71.5mm71.5mm69mm69mm67.5mm67.5mm
Trail62mm57mm57mm56mm56mm53mm
Wheelbase941mm961mm973mm988mm1008mm1030mm
Crank Length170mm170mm172.5mm172.5mm175mm175mm
Stem Length75mm90mm100mm100mm110mm120mm
