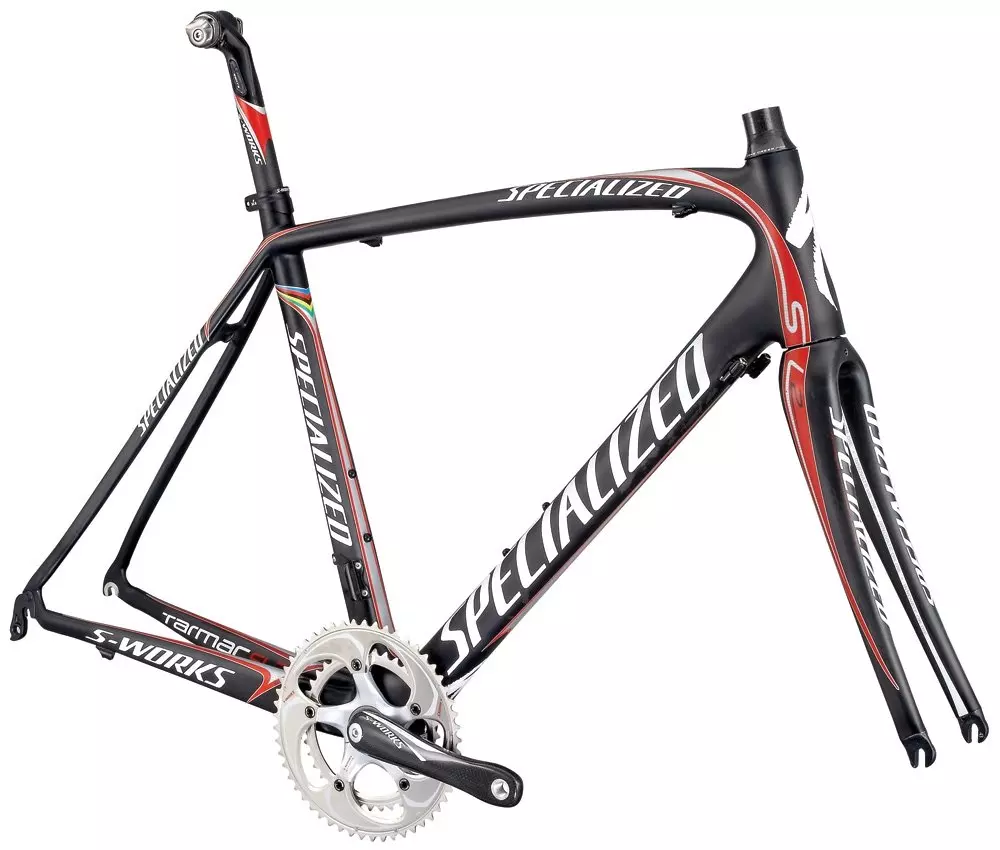

2009 S-Works Tarmac SL2 Team Module

0 Reviews

FROM THE SPRING CLASSICS to the Grand tours, the Tarmac has proven itself to be the…

Product Details

Add Icon

FROM THE SPRING CLASSICS to the Grand tours, the Tarmac has proven itself to be the professional rider's bike of choice. A world championship and a Tour de France green jersey lend proof to our claim that no frame is lighter and stiffer.

  • The S-Works FACT carbon crankset provides incredible pedaling efficiency, and mates perfectly with the oversized BB of the S-Works Tarmac SL2 frame.

  • The S-Works FACT carbon monocoque fork has an oversized race for incredible strength and precision.

  • The S-Works Mindset headset comes with ceramic cartridge bearings for the smoothest action imaginable.

  • The S-Works SL FACT carbon seatpost features an integrated Zertz insert for a seatpost that’s light and stiff, but forgiving.

  • The S-Works Tarmac SL2 features our top-of-the-line, superlight and strong 11r carbon, with our FACT IS construction and an oversized bottom bracket for a super-efficient frame that simply exudes speed.

Technical Specifications

Add Icon

FRAMESET

FRAME

S-Works FACT 11r carbon, FACT IS construction, team geometry, compact race design, 1.5"" lower HS bearing, OS BB

FORK

S-Works FACT carbon, monocoque construction, OS race for 1.5"" bearing, full carbon legs, crown and steerer

HEADSET

S-Works Campy style, 1-1/8"" to 1.5"" lower bearing, integrated threadless, sealed cartridge ceramic bearings w/ stainless steel races, 8mm carbon cone w/ one 10mm and two 5mm carbon spacers

SEAT BINDER

S-Works CNC alloy, 32.6mm

DRIVETRAIN

CRANKSET

S-Works FACT carbon, integrated oversize design

CHAINRINGS

53 x 39t

BOTTOM BRACKET

S-Works oversize integrated

COCKPIT

SEATPOST

S-Works SL, FACT carbon w/ Zertz insert, 27.2mm

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
495254565861
Ground-Top71.5mm71.5mm69mm69mm67.5mm67.5mm
Seat-Tube Angle57°62°57°56°53°56°
Head-Tube Angle576°576°583°591°605°612°
Chain-Stay Length45mm45mm45mm43mm43mm43mm
Top-Tube Length, Horizontal74mm75.5mm73.5mm73.25mm72.5mm73mm
Front-Center100mm120mm145mm170mm205mm230mm
Handle-Bar Width0mm0mm0mm0mm0mm0mm
Seat-Tube Length, B-B Center to Top405mm405mm405mm405mm407mm410mm
Fork Rake970mm970mm978mm986mm1003mm1013mm
B-B Drop72.25mm73mm73mm73.5mm73.5mm74mm
Stack460mm490mm510mm530mm550mm580mm
Reach518mm537mm548mm565mm582mm600mm
Trail730mm755mm777mm800mm828mm857mm
Geometry
