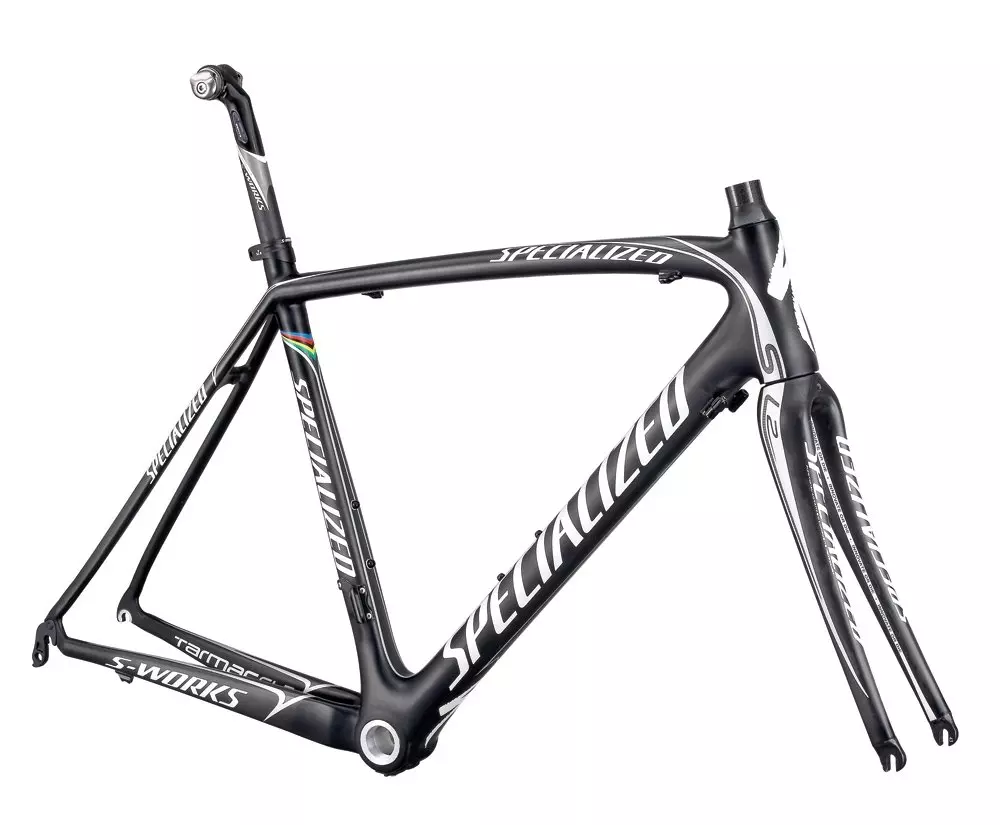

2009 S-Works Tarmac SL2 Frameset

0 Reviews

FROM THE SPRING CLASSICS to the Grand Tours, the Tarmac has proven itself to be the…

Color:

Gloss Carbon/Silver

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Product Details

FROM THE SPRING CLASSICS to the Grand Tours, the Tarmac has proven itself to be the professional rider's bike of choice. A world championship and a Tour de France green jersey lend proof to our claim that no frame is lighter andstiffer.

The S-Works Tarmac SL2 (with standard geometry) features our top-of-the-line, superlight and strong 11r carbon, with our FACT IS construction for a super-efficient frame that simply exudes speed.
The S-Works FACT carbon monocoque fork has an oversized race for incredible strength and precision.
The S-Works Mindset headset comes with ceramic cartridge bearings for the smoothest action imaginable.
The S-Works SL FACT carbon seatpost features an integrated Zertz insert for a seatpost that’s light and stiff, but forgiving.

Technical Specifications

FRAMESET

FRAME

S-Works FACT 11r carbon, FACT IS construction, compact race design, 1.5"" lower HS bearing, threaded BB

FORK

S-Works FACT carbon, monocoque construction, OS race for 1.5"" bearing, full carbon legs, crown and steerer

HEADSET

S-Works Campy style, 1-1/8"" to 1.5"" lower bearing, integrated threadless, sealed cartridge ceramic bearings w/ stainless steel races, 8mm carbon cone w/ one 10mm and two 5mm carbon spacers

SEAT BINDER

S-Works CNC alloy, 32.6mm

COCKPIT

SEATPOST

S-Works SL, FACT carbon w/ Zertz insert, 27.2mm

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	49	52	54	56	58	61
Ground-Top	71.5mm	71.5mm	69mm	69mm	67.5mm	67.5mm
Seat-Tube Angle	57°	62°	57°	56°	53°	56°
Head-Tube Angle	576°	576°	583°	591°	605°	612°
Chain-Stay Length	45mm	45mm	45mm	43mm	43mm	43mm
Top-Tube Length, Horizontal	74mm	75.5mm	73.5mm	73.25mm	72.5mm	73mm
Front-Center	100mm	120mm	145mm	170mm	205mm	230mm
Handle-Bar Width	0mm	0mm	0mm	0mm	0mm	0mm
Seat-Tube Length, B-B Center to Top	405mm	405mm	405mm	405mm	407mm	410mm
Fork Rake	970mm	970mm	978mm	986mm	1003mm	1013mm
B-B Drop	72.25mm	73mm	73mm	73.5mm	73.5mm	74mm
Stack	460mm	490mm	510mm	530mm	550mm	580mm
Reach	518mm	537mm	548mm	565mm	582mm	600mm
Trail	730mm	755mm	777mm	800mm	828mm	857mm
