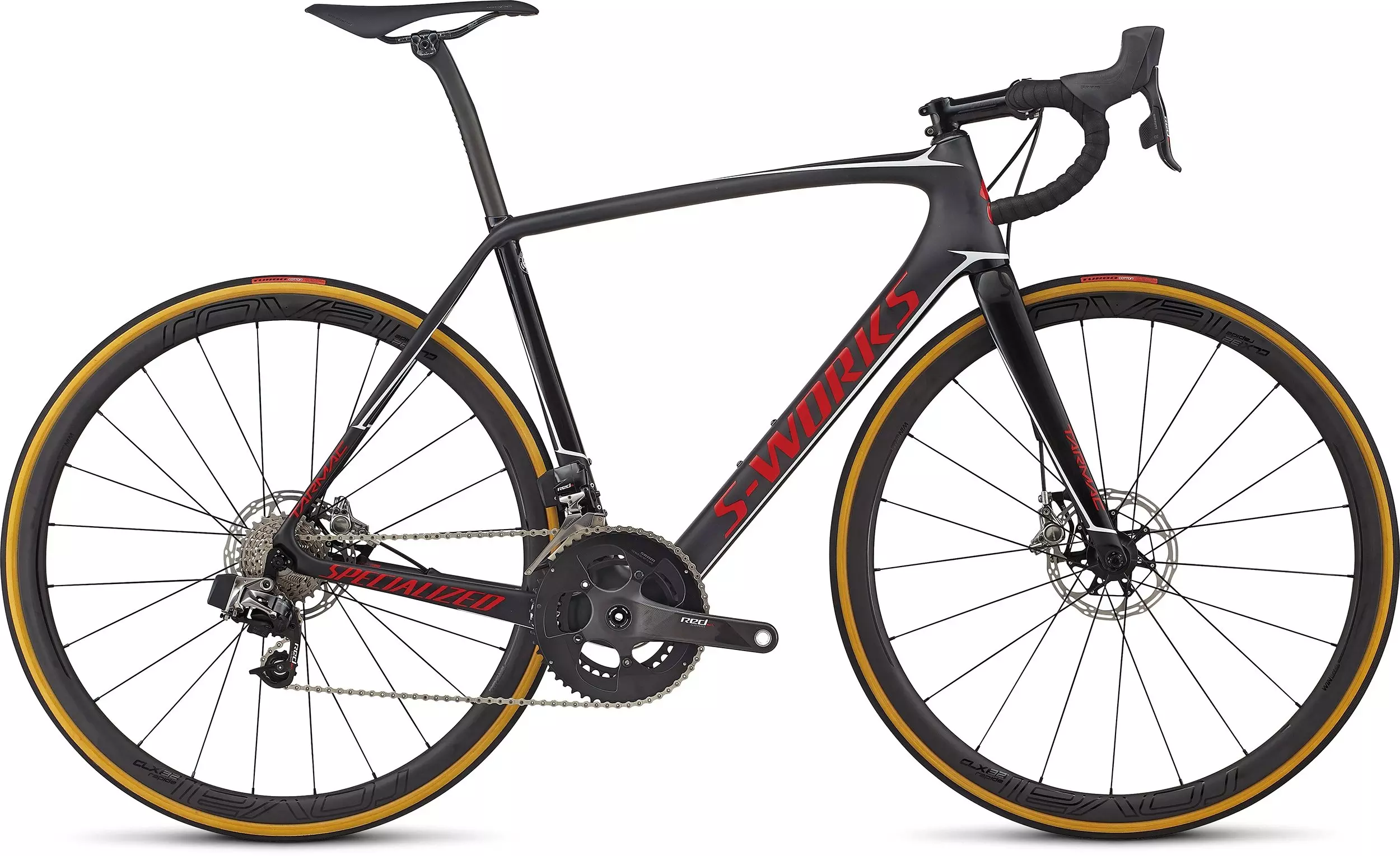

2017 S-Works Tarmac Disc eTap

0 Reviews

In this world, there are bikes, there are bikes that win races, and then there are…

Product Details

Add Icon

In this world, there are bikes, there are bikes that win races, and then there are bikes that start revolutions on the road. The S-Works Tarmac Disc eTap falls into the latter group. It features an impeccable S-Works FACT 11r carbon fiber construction that's unbelievably light, stiff, and reactive. In other words, it's purpose-built to be a true all-'round race bike, which is no accident. In fact, it comes as a result of our Rider-First Engineered™ design that applies specificity to every tube size and carbon layup for every frame size. This creates the optimal balance of rigidity, weight, and responsiveness, so every frame, regardless of size, performs just as we intended. And if you need proof, just look at the Tarmac's trophy case, with wins in every Grand Tour and the last two World Championships. Of course, a frame of this pedigree only deserves the utmost in dressings, which is why we outfitted it with SRAM's latest greatest wireless shift system, eTap, as well as incomparable hydraulic disc brakes that stop on a dime regardless of the condition. So if you're in need of a future-proof bike, you just found your match.

  • Featuring our Rider-First Engineered™ design that ensures every frame size has the same legendary climbing responsiveness and descending prowess you'd expect from a Tarmac. The S-Works FACT 11r disc frameset is our highest quality carbon frame, offering the ideal blend of light overall weight, targeted stiffness, and incredible stopping power.

  • S-Works-specific FACT full carbon fork with tapered construction provides incredible front end stiffness and steering response for instantaneous accelerations and high-speed descents.

  • SRAM Red® eTap 11-speed shifters provide a glimpse into the future of shifting, and double as brake levers for the SRAM Red hydraulic disc brakes. They communicate wirelessly with the front and rear derailleurs for a ground-breaking level of performance, while offering new, intuitive shift capabilities.

Technical Specifications

Add Icon

FRAMESET

FRAME

S-Works FACT 11r carbon, disc only design, OSBB, full internal, electronic-specific routing, internally integrated seat clamp, QR, 135mm rear spacing

FORK

S-Works FACT carbon, full monocoque, size-specific taper, disc

SEAT BINDER

Integrated wedge for Tarmac

WHEELS

FRONT WHEEL

Roval CLX 32 Disc, Win Tunnel Engineered, 32mm depth, CeramicSpeed bearings, 18h

REAR WHEEL

Roval CLX 32 Disc, Win Tunnel Engineered, 32mm depth, DT Swiss 240 internals, CeramicSpeed bearings, 24h

FRONT TIRE

Turbo Cotton, 700x24mm

REAR TIRE

Turbo Cotton, 700x24mm

INNER TUBES

66mm alloy tubeless valve

DRIVETRAIN

SHIFT LEVERS

SRAM eTap Hydro

FRONT DERAILLEUR

SRAM eTap, braze-on

REAR DERAILLEUR

SRAM eTap, 11-speed

CASSETTE

SRAM Red 22, 11-speed, 11-28t

CRANKSET

SRAM Red 22

CHAINRINGS

52/36T

BOTTOM BRACKET

SRAM BB30, 68mm, no spacer

CHAIN

SRAM Red 22, 11-speed

COCKPIT

HANDLEBARS

S-Works SL carbon Shallow Drop, 125mm drop, 75mm reach

STEM

S-Works SL, alloy, titanium bolts, 6-degree rise

TAPE

S-Wrap Roubaix w/sticky gel

SADDLE

Body Geometry S-Works Toupé, carbon rails, 143mm

SEATPOST

S-Works FACT carbon, 20mm offset

BRAKES

REAR BRAKE

SRAM Red disc, 160mm

FRONT BRAKE

SRAM Red disc, 160mm

ACCESSORIES

PEDALS

Nylon, 105x78x28mm, loose balls w/ reflectors

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
495254565861
Crank Length170mm170mm172.5mm172.5mm175mm175mm
Handlebar Width400mm420mm420mm420mm440mm440mm
Stem Length75mm90mm100mm100mm110mm110mm
Saddle Width143mm143mm143mm143mm143mm143mm
Seatpost Length350mm350mm350mm400mm400mm400mm
Seat-Tube Angle75.5°74°73.5°73.25°73°72.5°
Head-Tube Length100mm120mm140mm160mm190mm210mm
Head-Tube Angle72.25°73°73°73.5°73.5°74°
Chain-Stay Length405mm405mm405mm405mm407mm410mm
Front-Center576mm576mm583mm591mm605mm612mm
B-B Drop71.5mm71.5mm69mm69mm67.5mm67.5mm
B-B Height270mm270mm272.5mm272.5mm274mm274mm
Bike Stand-Over Height730mm755mm775mm795mm826mm850mm
Fork Length (full)368mm368mm368mm368mm368mm368mm
Top-Tube Length (horizontal)518mm537mm548mm565mm582mm600mm
Seat-Tube Length431mm462mm481mm501mm522mm553mm
Stack504mm526mm543mm564mm591mm612mm
Reach386mm386mm387mm395mm402mm408mm
Trail62mm57mm57mm56mm56mm53mm
Fork Rake/Offset45mm45mm45mm43mm43mm43mm
Wheelbase970mm970mm978mm986mm1003mm1013mm
