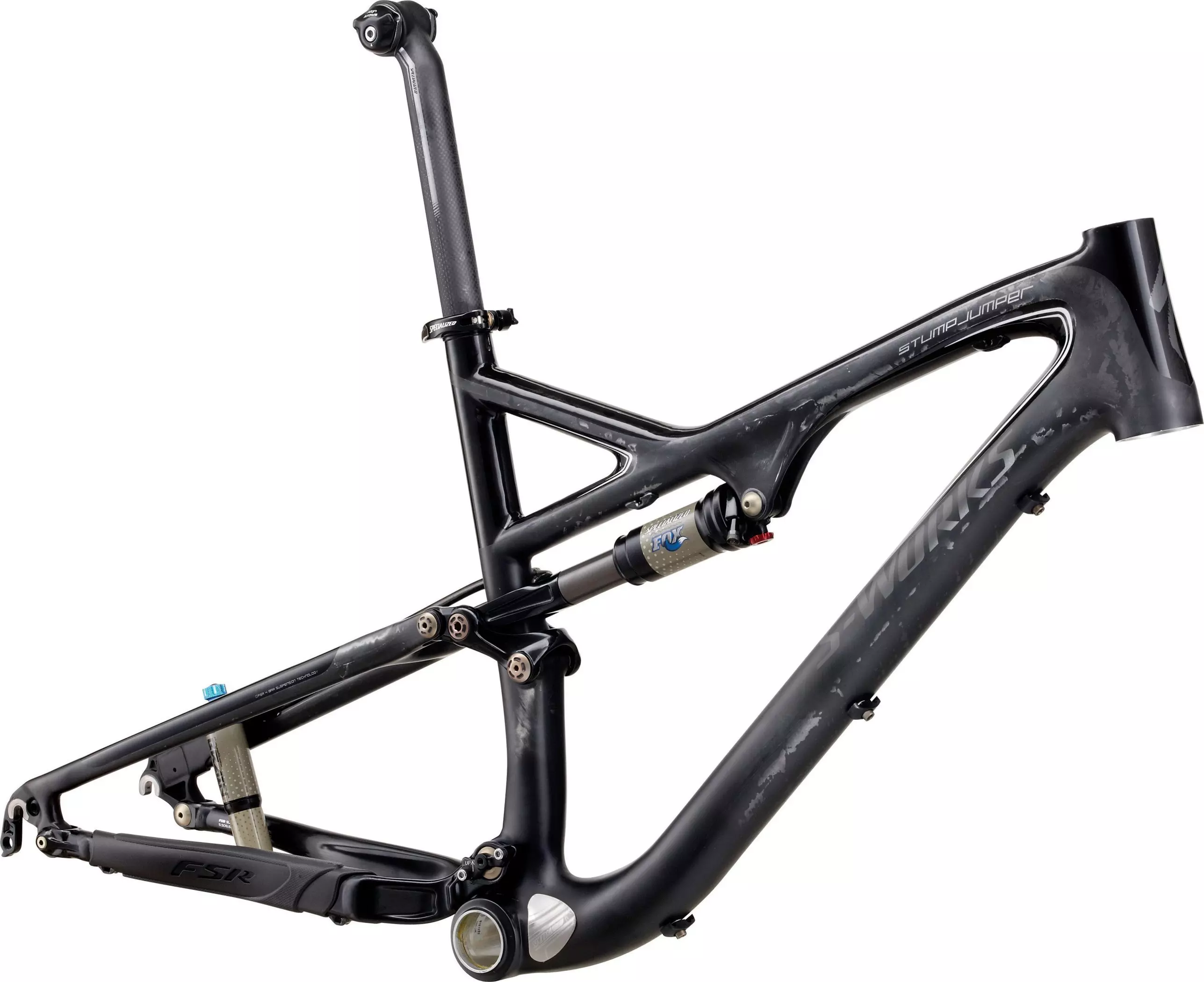

2011 S-Works Stumpjumper FSR Frame

0 Reviews

Got a garage full of your favorite parts, or just looking to build the ultimate trail…

Color:

Satin/Gloss Carbon

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Product Details

Got a garage full of your favorite parts, or just looking to build the ultimate trail bike from scratch? There's no better soul for a singletrack bike than a Stumpjumper FSR.

S-Works carbon single-bolt 30.9mm seatpost takes this already featherweight package to its absolute minimum without sacrificing stiffness or strength
FACT 10m carbon main triangle (M5 alloy chainstays) with full cartridge bearing pivots provide yet another reason to clear space on the mantle for all your new hardware
Specialized/Fox Brain rear shock with Brain Fade, remote Trail Tune inertia valve, and adjustable rebound lets riders dial in the perfect blend of pedaling efficiency and bump compliance

Technical Specifications

FRAMESET

FRAME

FACT 10m carbon front triangle, FACT IS construction, tapered HT, OS BB, carbon seat stays, M5 aluminum chain stays, sealed cartridge bearing pivots, replaceable derailleur hanger, 140mm travel

HEADSET

1-1/8 and 1.5"" Threadless, Campy style upper with 1.5"" lower, cartridge bearings

SEAT BINDER

36.9mm clamp ID, 7050 hard annodized alloy collar w/ QR, for carbon frame

SUSPENSION

REAR SHOCK

Specialized/Fox Brain Shock w/ remote Trail Tune inertia valve, Brain Fade and rebound adj., 7.75x1.9"", integrated cartridge bearing shock mount

COCKPIT

SEATPOST

S-Works Carbon, single-bolt head, 30.9mm, S/M: 350mm, other: 400mm

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	S	M	L	XL
Ground-Top	900mm	919mm	929mm	938mm
Bottom Bracket Height - Low Setting	335mm	335mm	335mm	335mm
Top Tube Length (Horizontal)	556mm	587mm	617mm	642mm
Head Tube Height	118mm	138mm	148mm	158mm
Head Tube Angle - Low Setting	68.5°	68.5°	68.5°	68.5°
Seat Tube Angle (Actual) - Low Setting	70.5°	70.5°	70.5°	70.5°
Seat Tube Angle (Effective) - Low Setting	74.5°	74.5°	74.5°	74.5°
Top Tube Length (Actual)	523mm	555mm	583mm	608mm
Seat Tube Length - Center to Top	406mm	445mm	483mm	533mm
Wheel Base	1083mm	1116mm	1147mm	1173mm
Standover Height	737mm	743mm	753mm	777mm
Stack	565mm	584mm	594mm	603mm
Reach	398mm	424mm	452mm	474mm
Chainstay Length	420mm	420mm	420mm	420mm
Crank Length	170mm	175mm	175mm	175mm
Handlebar Width	660mm	660mm	660mm	660mm
Stem Length	60mm	75mm	90mm	105mm
Seatpost Length	350mm	350mm	400mm	400mm
