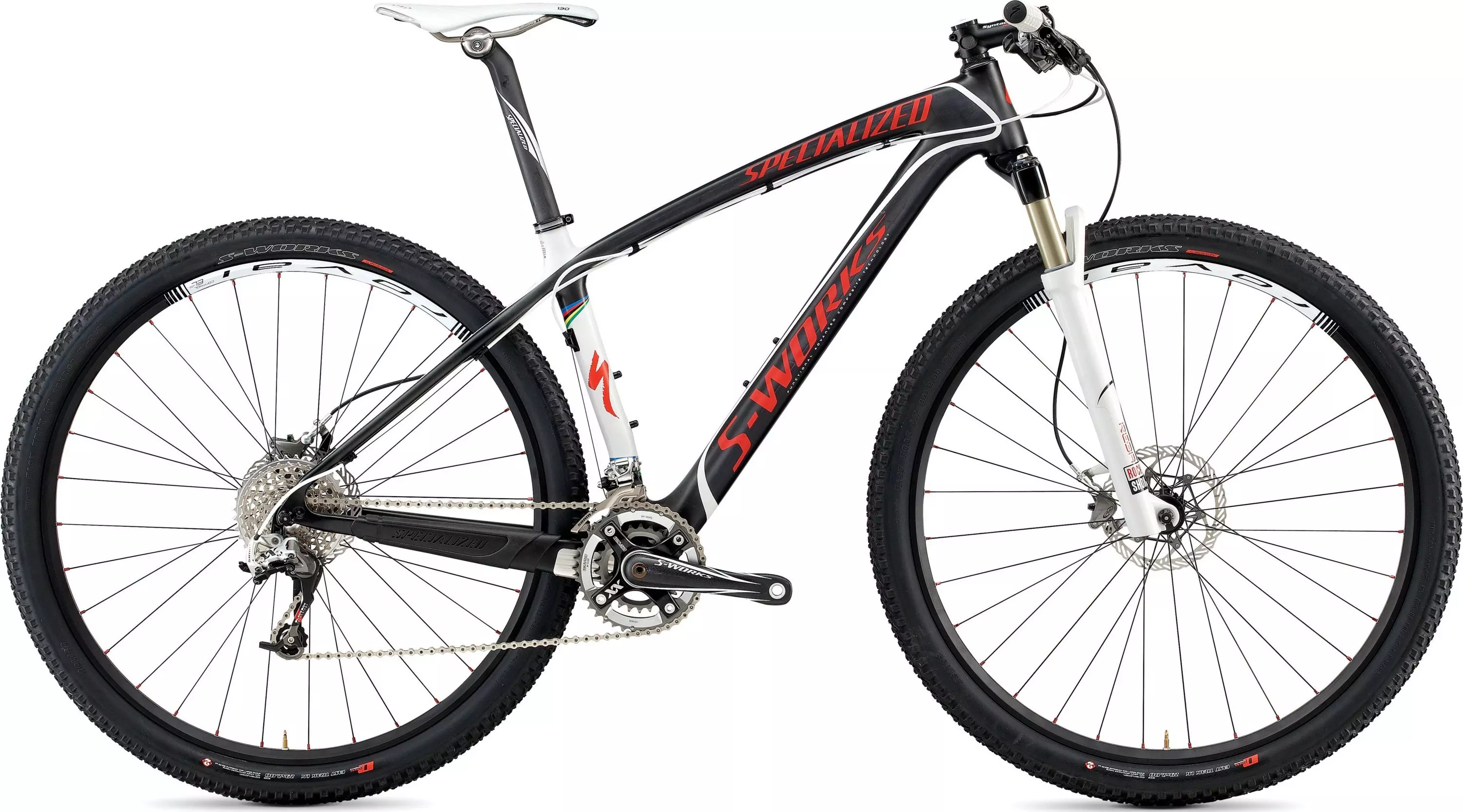

2010 S-Works Stumpjumper Carbon HT 29er
0 Reviews
With enough years of experience under its belt to merit a podium finish every time,…
Product Details
With enough years of experience under its belt to merit a podium finish every time, the Stumpjumper Hardtail is second only to its S-Works sibling when it comes to cross-country speed. Like the riders who hammer it, the Stumpjumper HT is lean, strong and exceedingly efficient, with an incredibly lightweight, high performance frame and spec combination. Now available in dedicated singlespeed and multi-speed models, with a full range of 26" and 29" versions.
Light and lean S-Works Stumpjumper HT 29er FACT 10m carbon frame is engineered with a stiff, tapered head tube and 29" race geometry for pure speed
Roval 29" Control EL XC wheelset with oversized 28mm end caps is ultra-lightweight, plenty strong, race-ready and prime for putting the hurt on every rider behind you
Specialized FACT OSBB carbon crankset with ceramic bearings and 26/39-tooth SRAM spider and rings boasts market-leading stiffness-to-weight for the ultimate power transfer
Custom Specialized/RockShock Reba S29 is the lightest, stiffest performance XC fork, featuring tapered carbon crown/steerer and Reba Team lower with titanium motion control damper, FloodGate adjust and lockout
Technical Specifications
FRAMESET
FRAME
FACT 10M carbon, 29"" geometry, 1.5 - 1/8"" tapered HT, alloy replaceable derailleur hanger, carbon drive-side dropout
HEADSET
1-1/8"" Threadless, 1 1/2"" lower, Campy style
SEAT BINDER
36.9mm clamp, one bolt for carbon frame/post
SUSPENSION
FORK
Custom SBC/RockShox Reba S29 Carbon, 90mm travel, One-piece tapered carbon crown/steeer tube, Rockshox Reba Team lower, titanium motion control damper, L/O w/floodgate adjust.
WHEELS
FRONT TIRE
S-Works Fast Trak LK, 29x2.0"", 120 TPI, tubeless ready aramid bead, dual compound
REAR TIRE
S-Works Fast Trak LK, 29x2.0"", 120 TPI, tubeless ready aramid bead, dual compound
INNER TUBES
Ultralight presta valve
RIMS
Roval Control EL, 29"" XC disc wheel
FRONT HUB
Roval Control EL XC, OS, 28mm axle caps
REAR HUB
Roval Control EL XC, OS, stragiht pull
DRIVETRAIN
FRONT DERAILLEUR
SRAM XX, 34.9mm clamp, bottom swing, top pull
REAR DERAILLEUR
SRAM XX, 10-speed, standard cage
SHIFT LEVERS
SRAM XX carbon trigger
CASSETTE
SRAM XX, 10-speed, 11-36t
CHAIN
SRAM PC-1090, 10-speed
CRANKSET
S-Works OS carbon crank, Custom XX spider/rings for SBC, 175mm
CHAINRINGS
39A x 26A, 4-bolt
BOTTOM BRACKET
S-Works, OS, integrated
COCKPIT
STEM
Synatce F99, 6 degree rise, 25.4mm clamp
HANDLEBARS
Specialized S-Works XC Carbon flat bar, 25.4mm, 600mm wide
GRIPS
Specialized waffle lock on grip (17.5) Specialized Thick lock on grip (others)
SADDLE
Specialized Phenom SL, Ti rails, thin foam, 15.5/17: 130mm, others: 143mm
SEATPOST
S-Works Carbon, 30.9mm, single-bolt head, 17.5: 350mm, others: 400mm
BRAKES
FRONT BRAKE
Custom Avid XX R, alloy backed semi-metallic pads, magnesium caliper and lever body w/ carbon blade, ti hardware package, 160mm rotor
REAR BRAKE
Custom Avid XX R, alloy backed semi-metallic pads, magnesium caliper and lever body w/ carbon blade, ti hardware package, 15.5/17: 140mm, others: 160mm rotor
BRAKE LEVERS
Custom Avid XX Hydraulic, tool-less reach adjust, magnesium body, carbon lever
ACCESSORIES
PEDALS
None
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 17.5 | 19 | 21 | |
|---|---|---|---|
| Ground-Top | 925mm | 935mm | 945mm |
| Bottom Bracket Height - Low Setting | 304mm | 304mm | 304mm |
| Top Tube Length (Horizontal) | 592mm | 615mm | 640mm |
| Head Tube Height | 110mm | 120mm | 130mm |
| Head Tube Angle - Low Setting | 71.5° | 71.5° | 71.5° |
| Seat Tube Angle (Actual) - Low Setting | 72° | 72° | 72° |
| Seat Tube Angle (Effective) - Low Setting | 73.5° | 73.5° | 73.5° |
| Top Tube Length (Actual) | 565mm | 590mm | 614mm |
| Seat Tube Length - Center to Top | 445mm | 483mm | 533mm |
| Wheel Base | 1074mm | 1106mm | 1132mm |
| Standover Height | 780mm | 818mm | 855mm |
| Stack | 621mm | 631mm | 641mm |
| Reach | 408mm | 433mm | 456mm |
| Chainstay Length | 436mm | 436mm | 436mm |
| Crank Length | 175mm | 175mm | 175mm |
| Handlebar Width | 600mm | 600mm | 600mm |
| Stem Length | 90mm | 105mm | 105mm |
