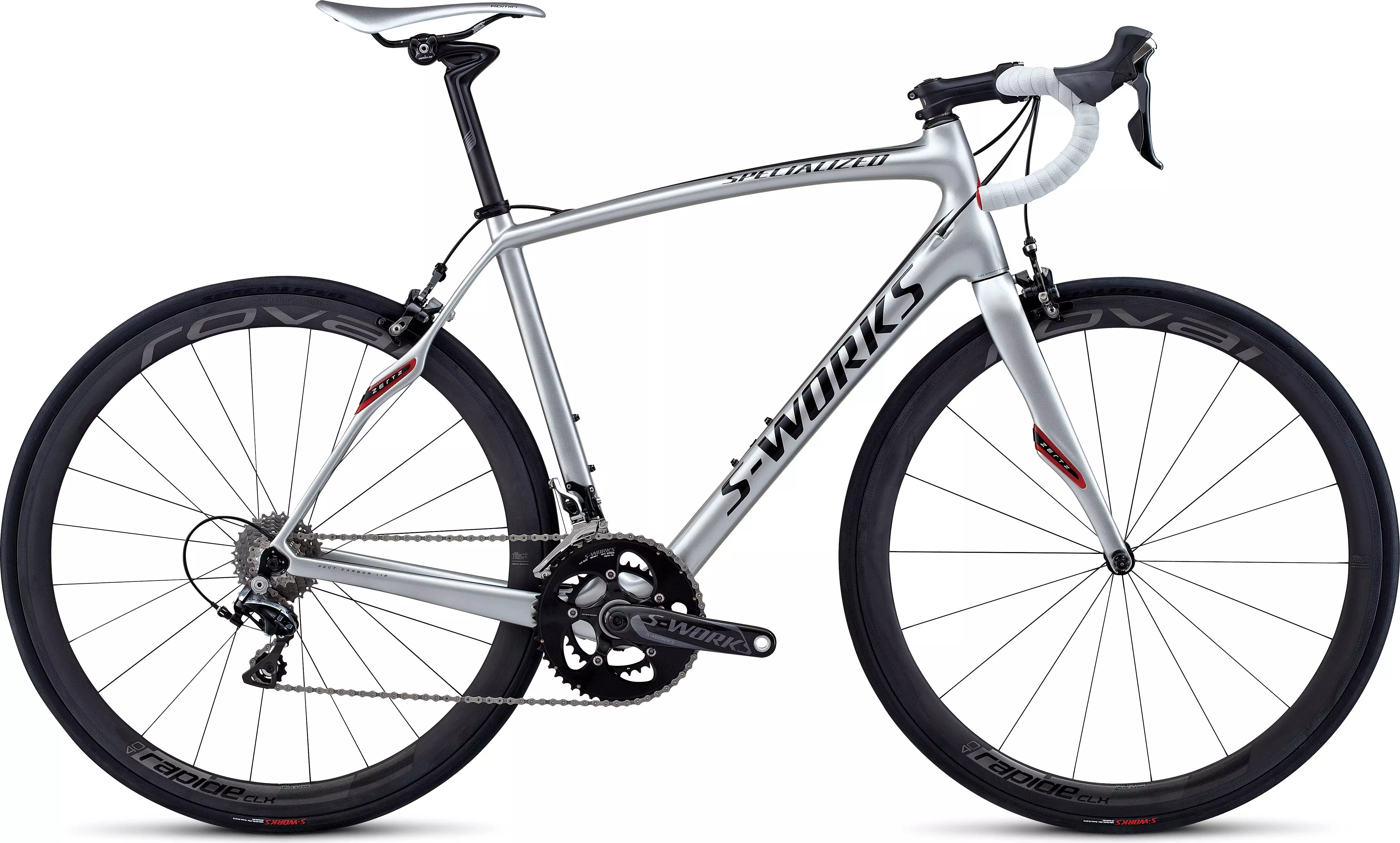

2014 S-Works Roubaix SL4 Dura-Ace
0 Reviews
Smoother is faster. The more comfortable and less fatigued you are at the end of…
Product Details
Smoother is faster. The more comfortable and less fatigued you are at the end of a 4 hour ride, the stronger you'll be. Like shocks on a race car, the Zertz vibration damping inserts on the S-Works Roubaix SL4 help absorb road impact and keep power planted firmly on the road - couple that with a FACT carbon 10r frame and it's still plenty stiff to thrash around in a sprint. Just ask four time Paris-Roubaix champion Tom Boonen
S-Works SL4 FACT 11r frame with Zertz is the fastest and smoothest endurance bike available, with incredible light weight, size-specific engineering, and tapered headtube, S-Works FACT carbon fork with Zertz has size-specific engineering to create a more balanced and stable ride for riders of different sizes
Ultra-light, Roval Rapide CLX 40 carbon clincher wheelset with CeramicSpeed bearings, paired with the new S-Works Turbo 26c 220TPI tire for a fast and light setup. Extremely low rolling resistance and superior cornering traction lets you climb easily, descend faster, and corner harder
Specialized S-Works FACT carbon crankset with OSBB, removable carbon spider, and CeramicSpeed ceramic bearings has incredible stiffness-to-weight for max power
The revolutionary CG-R post features 18mm of vertical compliance and Zertz vibration damping, while FACT carbon construction delivers unsurpassed comfort, control, and efficiency without adding weight or complication to the frame
Technical Specifications
FRAMESET
FRAME
S-Works SL4 FACT 11r carbon, FACT construction, tapered/shaped 1-1/8"" to size-specific lower headtube, compact race design, Zertz, internal cable routing, carbon OSBB
FORK
S-Works Roubaix FACT carbon full monocoque, Zertz, size-specific, hollow carbon dropouts
HEADSET
1-1/8"" upper and size-specific lower, hybrid cartridge lightweight bearings, 8mm carbon cone spacer, w/ 20mm of carbon spacers
SEAT BINDER
Forged alloy, Ti bolt, 32.6mm
WHEELS
FRONT WHEEL
Roval Rapide CLX 40, w/ CeramicSpeed bearings
REAR WHEEL
Roval Rapide CLX 40, w/ CeramicSpeed bearings
FRONT TIRE
S-Works Turbo, 220TPI, foldable aramid bead, BlackBelt protection, 700x26c
REAR TIRE
S-Works Turbo, 220TPI, foldable aramid bead, BlackBelt protection, 700x26c
INNER TUBES
Turbo Ultralight, 60mm presta valve
DRIVETRAIN
SHIFT LEVERS
Shimano Dura-Ace, 11-speed
FRONT DERAILLEUR
Shimano Dura-Ace, braze-on, 11-speed
REAR DERAILLEUR
Shimano Dura-Ace, 11-speed
CASSETTE
Shimano Dura Ace, 11-speed, 11-28
CRANKSET
S-Works FACT carbon, OSBB
CHAINRINGS
50/34
BOTTOM BRACKET
OS integrated, CeramicSpeed, sealed ceramic bearings
CHAIN
Shimano Dura-Ace, 11-speed
COCKPIT
HANDLEBARS
S-Works Shallow Drop, FACT carbon, 125mm drop, 75mm reach
STEM
S-Works Pro-Set, 3D forged 7050 aluminum, carbon-clip front, 4-degree shim, CNC head bolts, 31.8mm
TAPE
Specialized Roubaix, w/ S gel
SADDLE
Body Geometry Romin Pro, carbon rails, 143mm
SEATPOST
S-Works CG-R, FACT carbon w/ Zertz, 27.2mm
BRAKES
FRONT BRAKE
Shimano Dura-Ace
REAR BRAKE
Shimano Dura-Ace
BRAKE LEVERS
Shimano Dura-Ace
ACCESSORIES
PEDALS
Nylon flat test ride, loose ball, w/ reflectors
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 490.0 | 520.0 | 540.0 | 560.0 | 580.0 | 610.0 | |
|---|---|---|---|---|---|---|
| Seat-Tube Angle | 75.5° | 74° | 73.5° | 73.25° | 73° | 72.5° |
| Head-Tube Length | 125mm | 145mm | 165mm | 190mm | 225mm | 245mm |
| Seat-Post Length | 300mm | 300mm | 350mm | 350mm | 350mm | 350mm |
| Head-Tube Angle | 72° | 72° | 72° | 72.5° | 72.5° | 73° |
| Chain-Stay Length | 412mm | 412mm | 415mm | 415mm | 418mm | 420mm |
| Top-Tube Length, Horizontal | 518mm | 537mm | 548mm | 565mm | 582mm | 600mm |
| Front-Center | 582mm | 589mm | 596mm | 606mm | 621mm | 628mm |
| Handle-Bar Width | 400mm | 420mm | 420mm | 420mm | 440mm | 440mm |
| Stand-Over Height | 730mm | 756mm | 776mm | 798mm | 829mm | 851mm |
| Seat-Tube Length, B-B Center to Top | 455mm | 475mm | 495mm | 515mm | 540mm | 565mm |
| Fork Rake | 49mm | 49mm | 49mm | 49mm | 49mm | 49mm |
| B-B Drop | 73mm | 73mm | 71.5mm | 71.5mm | 70mm | 70mm |
| Stack | 528mm | 547mm | 564mm | 590mm | 622mm | 643mm |
| Reach | 378mm | 379mm | 380mm | 387mm | 392mm | 398mm |
| Trail | 59mm | 59mm | 59mm | 56mm | 56mm | 53mm |
| Wheelbase | 983mm | 990mm | 1000mm | 1011mm | 1029mm | 1039mm |
| Crank Length | 170mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
| Stem Length | 75mm | 90mm | 100mm | 100mm | 110mm | 110mm |
