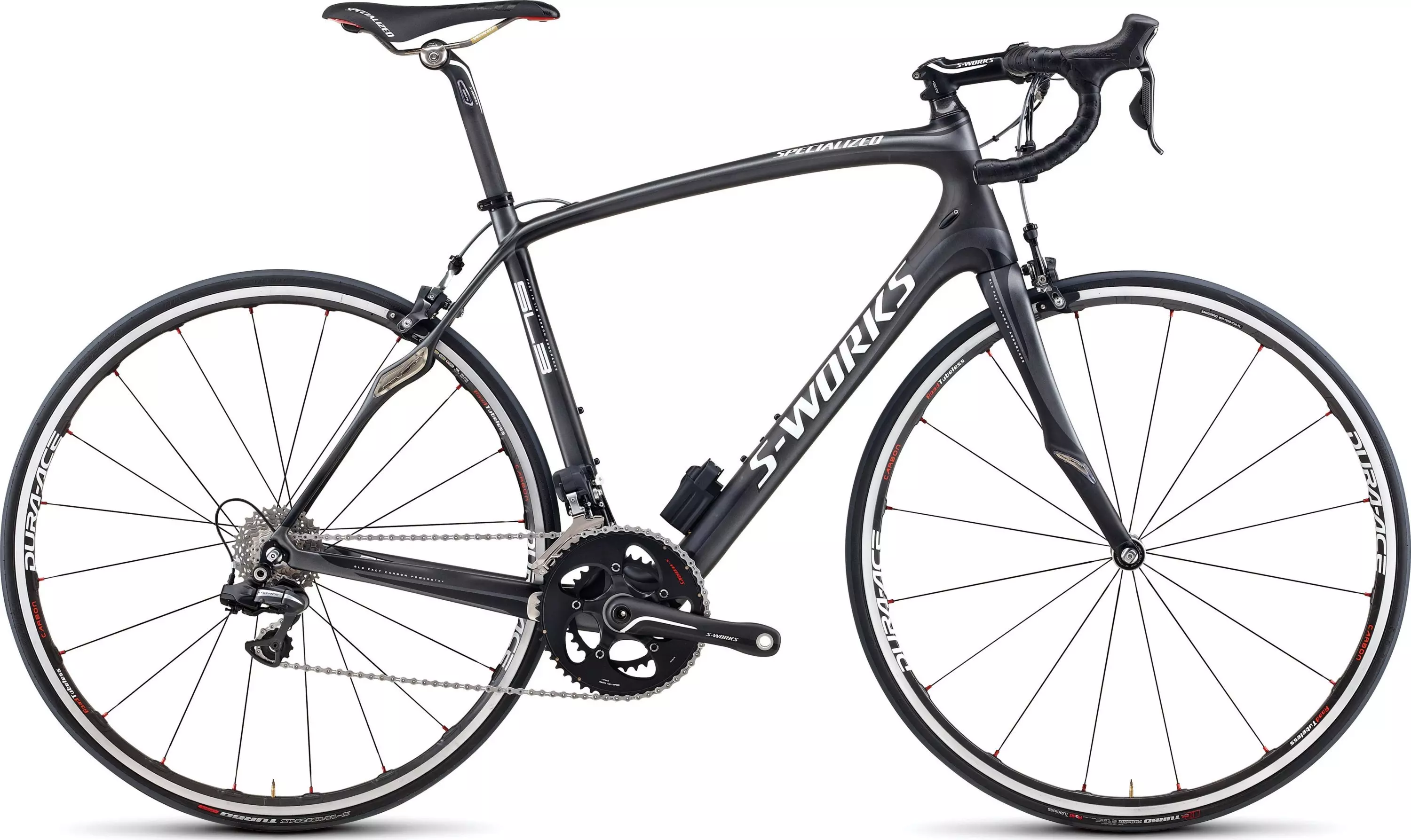

S-Works Roubaix SL3 Di2
New FACT IS 11r carbon SL3 frame weighs less than 1000grams, with increased torsional stiffness, and Zertz seatstay inserts for the fastest most compliant endurance bike available
FACT full carbon monocoque fork with vibration-damping Zertz inserts is ultra light and durable
New FACT IS 11r carbon SL3 frame weighs less than 1000grams, with increased torsional stiffness, and Zertz seatstay inserts for the fastest most compliant endurance bike available
High performance Shimano Dura Ace carbon tubeless wheelset enhances ride quality
Specialized S-Works FACT compact carbon crankset with oversized BB, removable carbon spider, and ceramic bearings has the highest strength to weight ratio for unparalleled efficiency and power transfer
FACT full carbon monocoque fork with vibration-damping Zertz inserts is ultra light and durable
S-Works SL ergonomic carbon handlebars for superior fit, comfort, stiffness and strength at minimal weight
Body Geometry Chicane Carbon saddle sports a more traditional rounded shape, with a full carbon shell and hollow Ti rails for lightweight support
S-Works SL ergonomic carbon handlebars for superior fit, comfort, stiffness and strength at minimal weight
State-of-the-art Shimano Dura-Ace Di2 electronic 10-speed shifters are the quickest, most precise shifters out there, at the gentle touch of a finger
Body Geometry Chicane Carbon saddle sports a more traditional rounded shape, with a full carbon shell and hollow Ti rails for lightweight support
State-of-the-art Shimano Dura-Ace Di2 electronic 10-speed shifters are the quickest, most precise shifters out there, at the gentle touch of a finger
Specialized S-Works FACT compact carbon crankset with oversized BB, removable carbon spider, and ceramic bearings has the highest strength to weight ratio for unparalleled efficiency and power transfer
High performance Shimano Dura Ace carbon tubeless wheelset enhances ride quality
HANDLEBARS
S-Works, shallow drop, FACT carbon, 125mm drop, 75mm reach
SEAT BINDER
Specialized, alloy, 27.2mm
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
49 | 52 | 54 | 56 | 58 | 61 | |
---|---|---|---|---|---|---|
Seat-Tube Angle | 75.5° | 74° | 73.5° | 73.25° | 73° | 72.5° |
Head-Tube Length | 125mm | 145mm | 165mm | 190mm | 225mm | 245mm |
Seat-Post Length | 0mm | 0mm | 0mm | 0mm | 0mm | 0mm |
Head-Tube Angle | 72° | 72° | 72° | 72.5° | 72.5° | 73° |
Chain-Stay Length | 412mm | 412mm | 415mm | 415mm | 418mm | 420mm |
Top-Tube Length, Horizontal | 518mm | 537mm | 548mm | 565mm | 582mm | 600mm |
Front-Center | 582mm | 588mm | 595mm | 606mm | 621mm | 628mm |
Stand-Over Height | 730mm | 756mm | 776mm | 798mm | 829mm | 851mm |
Seat-Tube Length, B-B Center to Top | 445mm | 475mm | 495mm | 515mm | 540mm | 565mm |
Fork Rake | 49mm | 49mm | 49mm | 49mm | 49mm | 49mm |
B-B Drop | 73mm | 73mm | 71.5mm | 71.5mm | 70mm | 70mm |
Trail | 59mm | 59mm | 59mm | 56mm | 56mm | 53mm |
Wheelbase | 983mm | 989mm | 1000mm | 1010mm | 1029mm | 1038mm |
