2010 S-Works Roubaix SL2 Module

0 Reviews

The bike that invented the Endurance Road category also goes by the name "nothing…

Product Details

Add Icon

The bike that invented the Endurance Road category also goes by the name "nothing is smoother and faster". Combining best-in-class vertical compliance from the seatstays and top tube with excellent torsional rigidity from the down tube, head tube and bottom bracket, the Roubaix finds a way to not only make the long ride comfortable, but also make it fast. Q: "Is it just a matter of technique or also influences the position, etc. to tackling the pavé, what do you think?" Alberto Contador: "I have full confidence, and also I'm fortunate that Specialized have a specific bike model for the classics and this kind of stages. That is an advantage, because since I've ridden the 'Roubaix' I felt super comfortable."

  • FACT full carbon monocoque fork with vibration-damping Zertz inserts is ultralight and durable

  • Stiff and adjustable S-Works FACT carbon Pave seatpost uses a Zertz insert to minimize road vibrations for greater comfort

  • S-Works oversized BB FACT carbon crankset combines high strength and light weight for unparalleled efficiency and power transfer

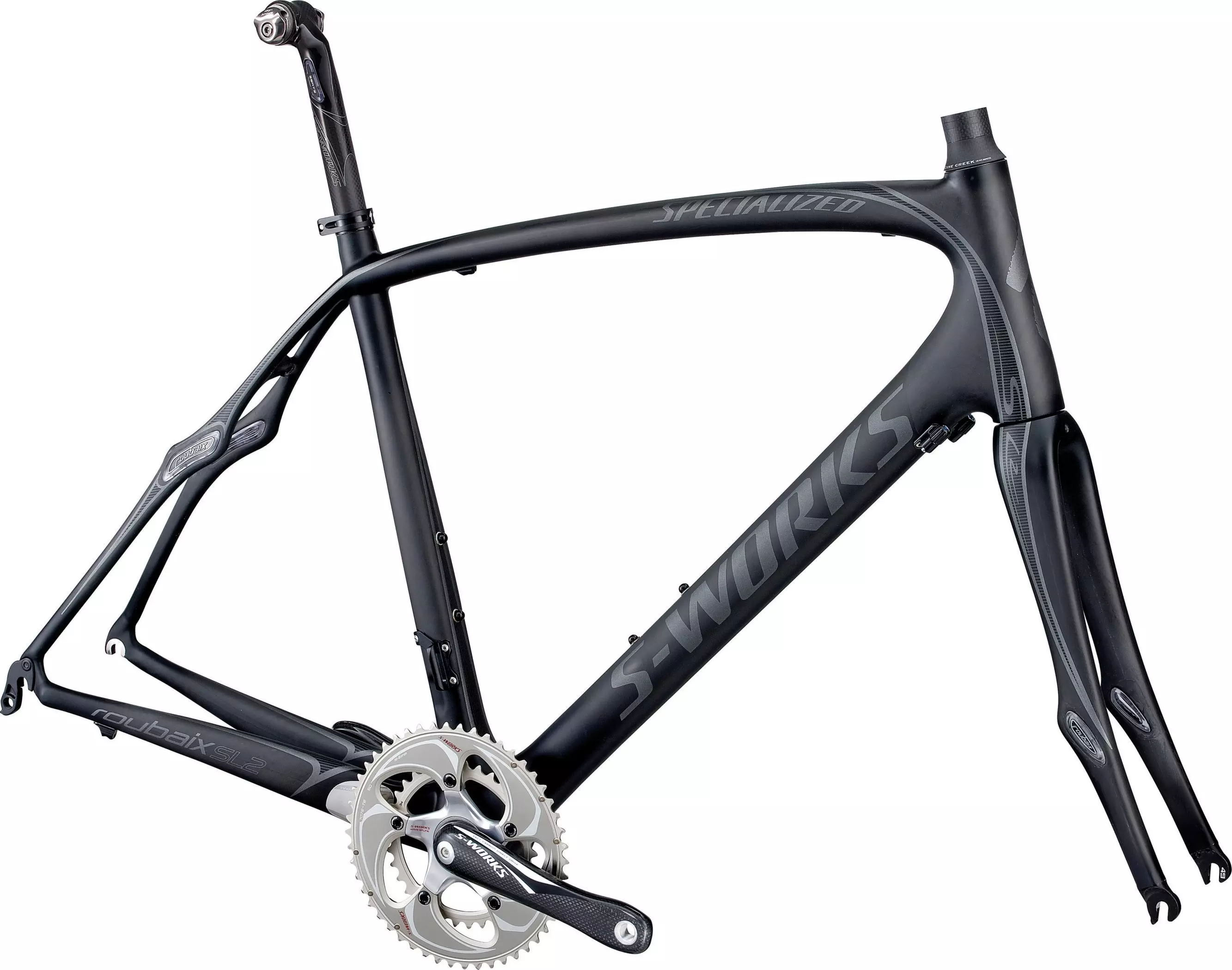

  • Ultra compliant and ultra stiff, all in one, the S-Works Roubaix SL2 advanced FACT IS 10r carbon frame with oversized BB and Zertz inserts has a habit for winning the Paris-Roubaix

Technical Specifications

Add Icon

FRAMESET

FRAME

S-Works Roubaix FACT 10r carbon, FACT IS construction, compact race design w/ Zertz inserts

FORK

S-Works Roubaix full carbon monocoque, w/ Zertz inserts

HEADSET

Aheadset Stainless Balls w/ top cap w/ 20mm of spacers

SEAT BINDER

S-Works alloy, 32.6mm clamp

DRIVETRAIN

CRANKSET

S-Works Crankset 50x34

CHAINRINGS

50 x 34T

BOTTOM BRACKET

Ceramic bearings

COCKPIT

SEATPOST

S-Works FACT carbon w/ Zertz insert, 27.2mm

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
495254565861
Seat-Tube Angle75.5°74°73.5°73.25°73°72.5°
Head-Tube Length125mm145mm165mm190mm225mm245mm
Seat-Post Length300mm350mm350mm350mm350mm350mm
Head-Tube Angle72°72°72°72.5°72.5°73°
Chain-Stay Length412mm412mm415mm415mm418mm420mm
Top-Tube Length, Horizontal518mm537mm548mm565mm582mm600mm
Front-Center582mm588mm595mm606mm621mm628mm
Handle-Bar Width400mm420mm420mm420mm440mm440mm
Stand-Over Height737mm759mm780mm801mm824mm849mm
Seat-Tube Length, B-B Center to Top445mm475mm495mm515mm540mm565mm
Fork Rake49mm49mm49mm49mm49mm49mm
B-B Drop73mm73mm71.5mm71.5mm70mm70mm
Trail59mm59mm59mm56mm56mm53mm
Wheelbase983mm989mm1000mm1010mm1029mm1038mm
Crank Length170mm170mm172.5mm172.5mm175mm175mm
Stem Length75mm90mm100mm100mm110mm120mm
Geometry
