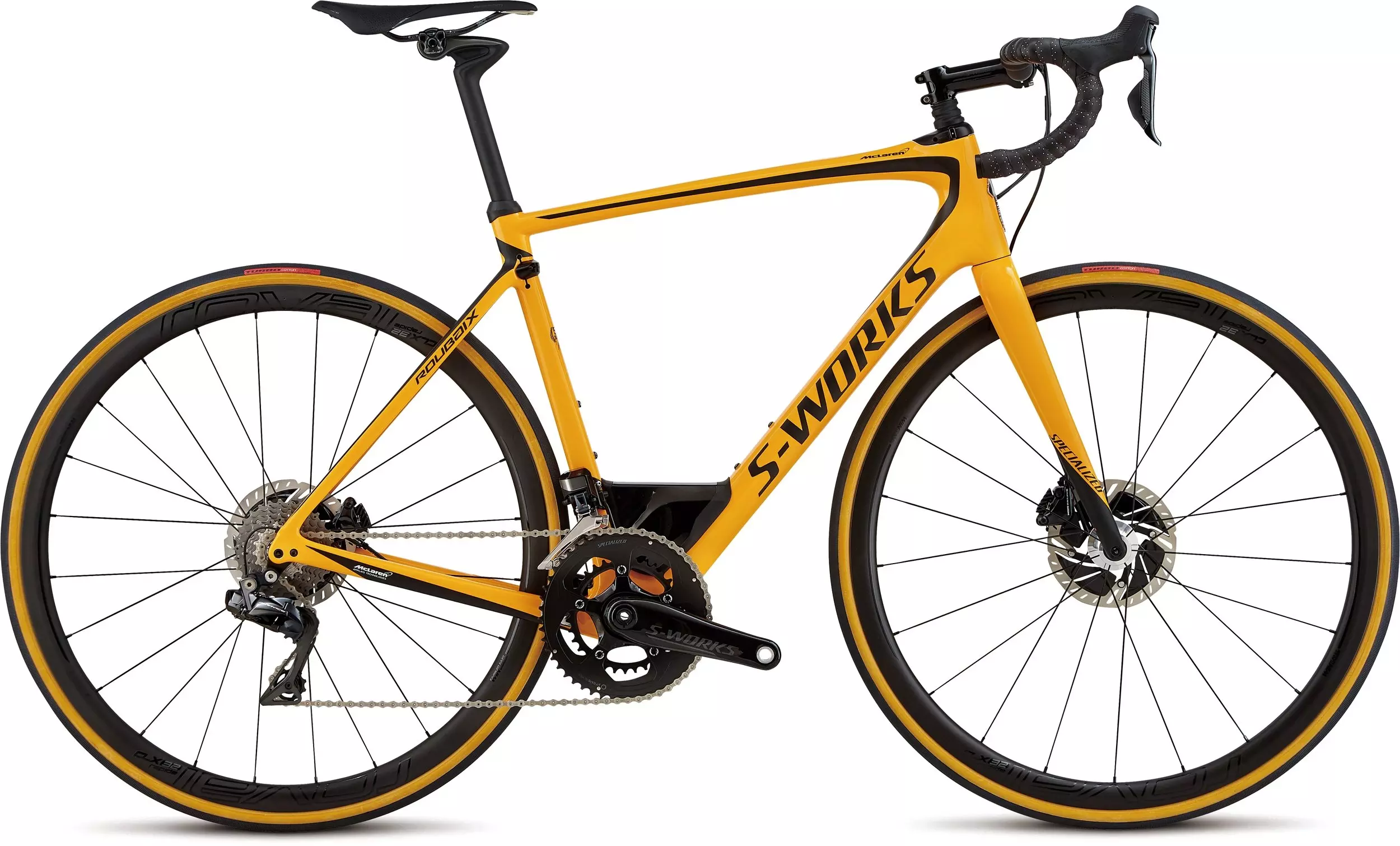

2018 S-Works Roubaix McLaren Dura-Ace Di2

0 Reviews

When you hear "McLaren," the first thing that comes to mind are its F1 race machines,…

Product Details

Add Icon

When you hear "McLaren," the first thing that comes to mind are its F1 race machines, but that's not the only race machine that McLaren has their hands in. The S-Works Roubaix McLaren with Shimano Di2 has been designed in tandem with McLaren Applied Technologies. To celebrate this, this limited edition model features a one-of-a-kind paint job, custom hubs, and custom bar tape. So you won't only be riding the most comfortable race-bike out there, you'll be on the coolest one, too.

The frame is one of the lightest that we've ever made, and it's been constructed from our top-tier FACT 11r carbon fiber. Its stiffness levels are also off the charts, and compared to the SL4 iteration of yesteryear, you'll experience a whole new, faster, and more efficient geometry. Through some engineering sorcery, however, we've managed to keep the same fit, feel, and position that we've all come to love from the SL4, and kept it consistent throughout the size-range due to our Rider-First Engineered™ construction.

Of course, you're probably thinking, "get on to the suspension thing up front." We call it Future Shock, and essentially, it's a piston in the head tube with 20mm of travel. We developed this technology in partnership with McLaren Applied Technologies, and the result of this are a host of drastic performance improvements, namely in the vertical compliance department. Without giving a physics lecture, we found that focusing on vertical compliance, instead of fork splay, meant that we could improve smoothness, speed, and comfort in one fell swoop. And of all the bikes that we've tested with our Rolling Efficiency Model, the new Roubaix outperforms anything on the market.

To add to the pizazz of this custom build, we spec'd it with Shimano's benchmark Dura-Ace 9150 Di2 groupset, S-Works carbon bits, and hand-built Roval CLX 32 Disc wheels with custom hubs.

  • Featuring our Rider-First Engineered™ design that ensures every frame size has the same legendary responsiveness and smooth ride quality that you'd expect from a Roubaix. The S-Works FACT 11r frameset is our highest quality carbon frame, offering the ideal blend of light overall weight and targeted stiffness, while the all-new Future Shock "suspension" system at the cockpit delivers a revolutionary degree of comfort and control.

  • An S-Works FACT Disc fork is built from our FACT carbon fiber for supreme stiffness, strength, and reactivity, while a thru-axle design only stands to bolster all of the above.

  • A 52/36T S-Works carbon fiber crankset delivers the ultimate in power delivery, with a chainring grouping that's equally suited to big alpine climbs as it is to throwing down the gauntlet on the flats.

Technical Specifications

Add Icon

FRAMESET

FRAME

S-Works FACT 11r carbon, Endurance Geometry, Rider-First Engineered™, 12x142mm thru-axle, Future Shock suspension, 20mm of travel, flat disc mounts

FORK

S-Works FACT carbon, 12x100mm thru-axle

WHEELS

FRONT WHEEL

Roval CLX 32 Disc, Win Tunnel Engineered, carbon rim, 32mm depth, Roval AFD Hub, CeramicSpeed bearings, 21h

REAR WHEEL

Roval CLX 32 Disc, Win Tunnel Engineered, carbon rim, 32mm depth, Roval AFD Hub, CeramicSpeed bearings, 24h

FRONT TIRE

Turbo Cotton, 700x28mm

REAR TIRE

Turbo Cotton, 700x28mm

INNER TUBES

Standard, Presta valve

DRIVETRAIN

CHAINRINGS

52/36T

SHIFT LEVERS

Shimano Dura-Ace Di2 Disc 9170

FRONT DERAILLEUR

Shimano Dura-Ace Di2 9150, braze-on

REAR DERAILLEUR

Shimano Dura-Ace Di2 9150, 11-speed

CASSETTE

Shimano Dura-Ace 9100, 11-speed, 11-30t

CRANKSET

S-Works carbon fiber

BOTTOM BRACKET

OSBB, CeramicSpeed bearings

CHAIN

Shimano Dura-Ace,11-speed

COCKPIT

SADDLE

S-Works Phenom GT, 143mm, carbon rails, EVA foam, carbon base

SEATPOST

Specialized CG-R, FACT carbon, single-bolt, 27.2mm

HANDLEBARS

S-Works Carbon Hover Drop, 125x75mm

TAPE

Specialized Leather Tape

STEM

S-Works SL, alloy, titanium bolts, 6-degree rise

BRAKES

FRONT BRAKE

Shimano Dura-Ace Di2 9170 hydraulic disc

REAR BRAKE

Shimano Dura-Ace Di2 9170 hydraulic disc

ACCESSORIES

PEDALS

Nylon, 105x78x28mm, loose balls w/ reflectors

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
495254565861
Crank Length170mm170mm172.5mm172.5mm175mm175mm
Handlebar Width400mm420mm420mm420mm440mm440mm
Stem Length80mm90mm100mm100mm110mm110mm
Saddle Width143mm143mm143mm143mm143mm143mm
Seatpost Length350mm350mm400mm400mm450mm450mm
Seat Tube Length, BB Center to Top425mm462mm481mm501mm522mm563mm
Fork Rake50mm50mm44mm44mm44mm44mm
Standover Height715.5mm743mm762mm785mm813mm844.3mm
Stack549mm569mm585mm611mm644mm665mm
Reach369mm371mm375mm381mm386mm392mm
Head Tube Length90mm110mm125mm150mm185mm205mm
Head Tube Angle72°72.25°72.75°73.5°73.5°74°
BB Drop77.5mm77.5mm76mm76mm74.5mm74.5mm
Trail58.5mm57mm61mm55mm55mm52mm
Front Center580mm586mm584mm590mm605mm612mm
Chainstay Length413mm413mm415mm415mm418mm418mm
Wheelbase981mm987mm987mm993mm1011mm1018mm
Top Tube Length, Horizontal527mm534.9mm545mm561.8mm576.3mm588.5mm
Seat Tube Angle74°74°74°73.5°73.5°73.5°
