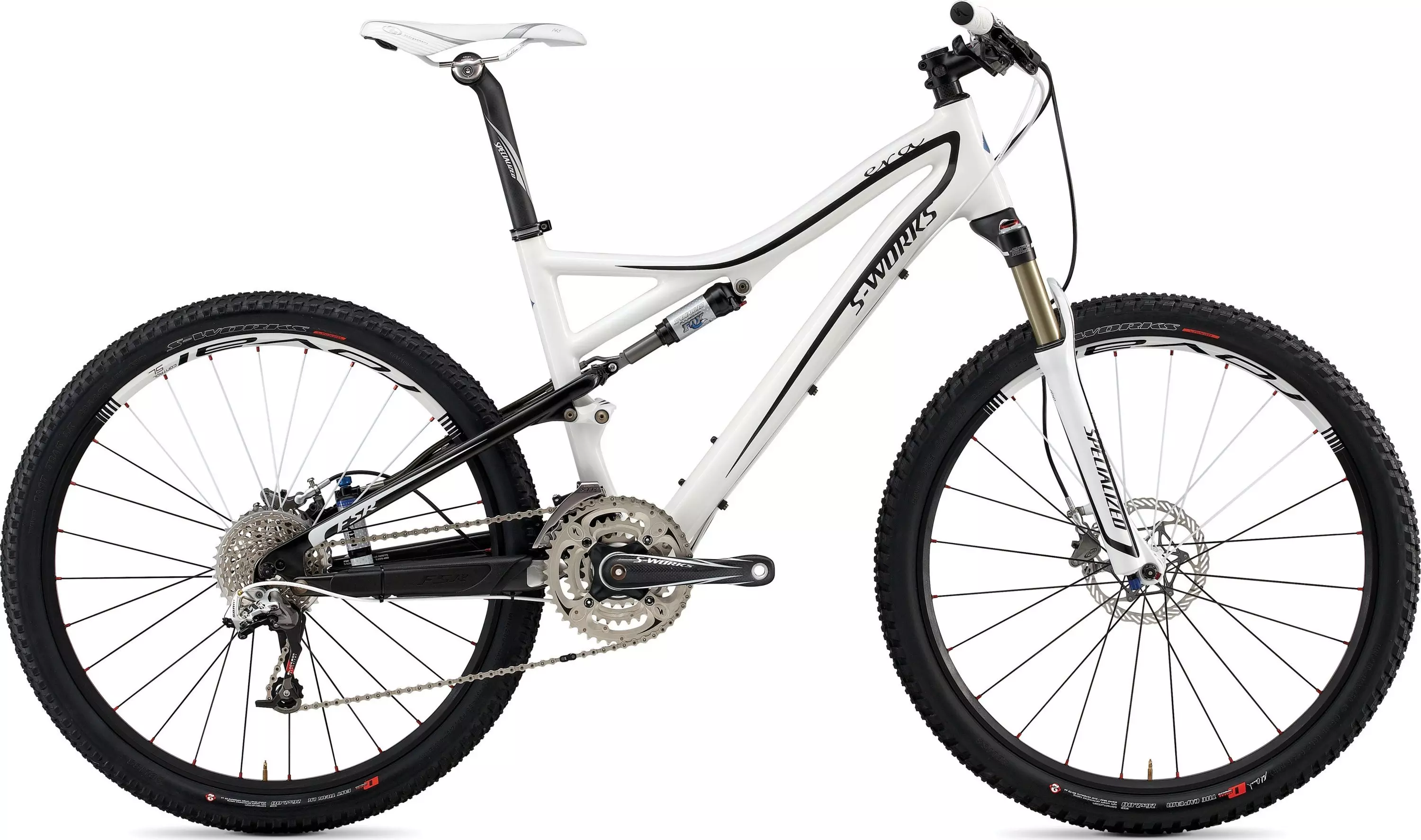

2010 S-Works Era Carbon
0 Reviews
The Era is the most efficient, fastest and lightest full suspension cross-country…
Product Details
The Era is the most efficient, fastest and lightest full suspension cross-country bike designed from the ground up for female riders and racers. Featuring a smooth and efficient Mini Brain damper, FSR suspension, women's race geometry and completely optimized frame, the Era gives you hardtail speed with more than enough capability for rough and technical terrain.
Body Geometry women's Jett saddle for lightweight comfort and race-ready control
S-Works oversized carbon crank and BB boast the best strength-to-weight ration on the market
S-Works The Captain front tire and Fast Trak LK rear tire is the ideal combination for speed and aggressive cornering
Roval Control SL weight-comes-first wheelset is perfect for XC racing, and the oversized axle makes it stiff enough for the rough stuff
Future Shock E100 100mm-travel fork with Era-tuned spring rates uses Brain Fade adjustment to match bump performance with rear Mini Brain
S-Works Era 10m full FACT carbon frame uses women's-specific FACT IS construction and geometry to trim weight and add stiffness for race-level agility
Custom Avid XX R hydraulic disc brakes with 160mm rotors, alloy-backed brake pads, ti hardware and carbon levers for weightless, yet controlled stopping power
Specialized and Fox blend their brains to develop the new FlowControl Mini Brain shock with Brain Fade adjust inertia valve, air spring and adjustable rebound, tuned for women's XC performance
Technical Specifications
FRAMESET
FRAME
Era FACT 10m carbon front triangle, w/ women's IS construction and geometry, FACT carbon seatstays and chainstays, sealed cartridge bearing pivots, 100mm travel, replaceable derailleur hanger
HEADSET
1 1/8"" - 1 1/2"" Threadless, Campy style upper and lower cartridge bearing.
SEAT BINDER
36.9mm clamp, one bolt for carbon frame/post
SUSPENSION
REAR SHOCK
Fox/SBC remote mini-brain, inertia valve, w/ Brain fade adjust
FORK
Specialized Future Shock e100, inertia valve, 100mm travel, Brain Fade, external rebound adj., single sided air spring and damper, carbon 1-1/8th to 1.5"" steerer
WHEELS
RIMS
Roval Control SL, disc, 24mm
FRONT HUB
Roval Control SL Carbon, OS 28mm end caps
REAR HUB
Roval Control SL
SPOKES
DT Aerolite
FRONT TIRE
S-Works The Captain, 26x2.0"", 120 TPI, tubeless ready aramid bead, dual compound
REAR TIRE
S-Works Fast Trak LK, 26x2.0"", 120 TPI, tubeless ready aramid bead, dual compound
INNER TUBES
Ultralight presta valve
DRIVETRAIN
FRONT DERAILLEUR
Shimano M971 XTR, DMD, top swing, dual pull
REAR DERAILLEUR
SRAM XX, 10-speed, standard cage
SHIFT LEVERS
SRAM XX carbon trigger
CASSETTE
SRAM XX, 10-speed, 11-36t
CHAIN
SRAM PC-1090, 10-speed
CRANKSET
S-Works OS carbon crank, 10 speed compatible Scubic rings, S/M: 170mm, L: 175mm
BOTTOM BRACKET
S-Works, OS, integrated
COCKPIT
SEATPOST
S-Works Carbon, 30.9mm, single-bolt head, 350mm
STEM
Syntace F109, 6 degree rise, 31.8mm clamp
HANDLEBARS
Specialized S-Works XC Carbon low-rise bar, uni-directional carbon, 31.8mm, 640mm wide, 8 degree back sweep, 6 degree up
GRIPS
Specialized waffle lock on grip
SADDLE
Specialized Body Geometry women's Jett, ti rails, thin foam, 143mm
BRAKES
FRONT BRAKE
Custom Avid XX R, alloy backed semi-metallic pads, magnesium caliper and lever body w/ carbon blade, ti hardware package, 160mm rotor
REAR BRAKE
Custom Avid XX R, alloy backed semi-metallic pads, magnesium caliper and lever body w/ carbon blade, ti hardware package, S/M: 140mm, L: 160mm rotor
BRAKE LEVERS
Custom Avid XX Hydraulic, tool-less reach adjust, magnesium body, carbon lever
ACCESSORIES
PEDALS
None
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | |
|---|---|---|---|
| Ground-Top | 879mm | 897mm | 906mm |
| Bottom Bracket Height - Low Setting | 331mm | 331mm | 331mm |
| Top Tube Length (Horizontal) | 540mm | 565mm | 595mm |
| Head Tube Height | 126mm | 143mm | 154mm |
| Head Tube Angle - Low Setting | 70° | 70° | 70° |
| Seat Tube Angle (Actual) - Low Setting | 74.2° | 74.2° | 74.2° |
| Top Tube Length (Actual) | 522mm | 545mm | 570mm |
| Seat Tube Length - Center to Top | 394mm | 432mm | 470mm |
| Wheel Base | 1049mm | 1076mm | 1107mm |
| Standover Height | 704mm | 721mm | 729mm |
| Stack | 548mm | 566mm | 575mm |
| Reach | 386mm | 405mm | 433mm |
| Chainstay Length | 425mm | 425mm | 425mm |
| Crank Length | 170mm | 170mm | 175mm |
| Handlebar Width | 640mm | 640mm | 640mm |
| Stem Length | 75mm | 75mm | 90mm |
| Seatpost Length | 350mm | 350mm | 350mm |
