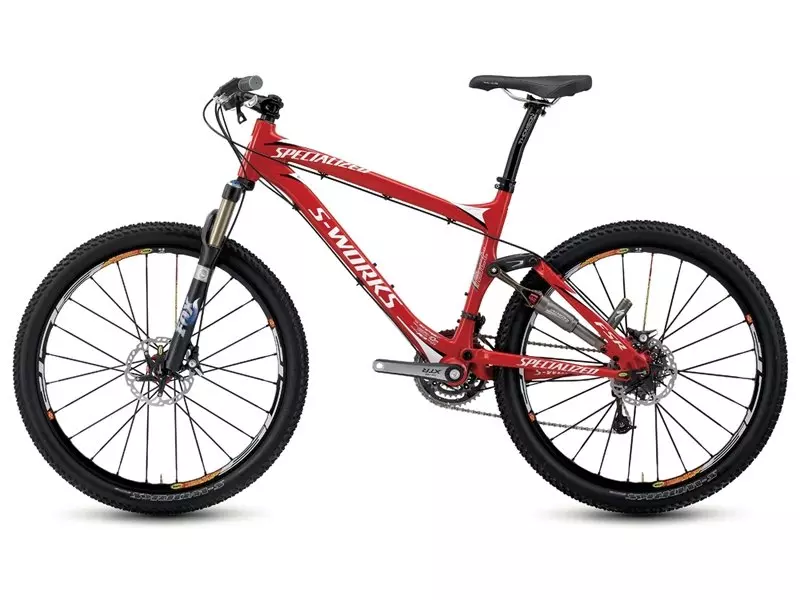

2007 S-Works Epic Carbon Disc

0 Reviews

COMPETITIVE XC Let's be honest here: The endless pursuit of speed is the reason…

Color:

Flo Red

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Product Details

COMPETITIVE XC Let's be honest here: The endless pursuit of speed is the reason you ride. That might mean beating up on the regulars at your Saturday morning ride or leading the pack through a tough section of trail at a NORBA National. Proven at every level of competition-our 2007 S-Works edition has already won a UCI World Cup. The Epic, with its incredibly efficient Flow Control Brain suspension technology, is the fastest suspension bike in the world. Read all about Total Suspension Integration. (Adobe PDF, 3MB)

FACT M10 carbon front triangle frame, Az1 construction, M5 aluminum rear triangle, sealed cartridge bearing pivots, 100mm travel, FACT carbon link
Specialized AFR Shock w/ Flow Control valve and Brain Fade adjust
Fox 100RLC, 100mm travel, air spring, rebound, compression, and threshold adjust, alloy steerer
New Mavic CrossMax SL-R wheelset
New Shimano XTR drivetrain and brakes

Technical Specifications

FRAMESET

FRAME

FACT M10 carbon front triangle, Az1 construction, M5 aluminum rear triangle, sealed cartridge bearing pivots, 100mm travel, FACT carbon link

HEADSET

1 1/8"" threadless, integrated alloy cups, sealed cartridge bearing

SEAT BINDER

34.9mm clamp, dual bolt for carbon frame/post

SUSPENSION

REAR SHOCK

Specialized AFR Shock w/ Flow Control valve, adjustable from HT firm to Trail Tune, air spring, adjustable rebound

FORK

Fox F100RLC , 100mm travel, air spring, alloy steerer

WHEELS

RIMS

New Mavic CrossMax SL-R

FRONT HUB

New Mavic CrossMax SL-R

REAR HUB

New Mavic CrossMax SL-R

SPOKES

New Mavic CrossMax SL-R

FRONT TIRE

S-Works Fast Trak 26x2.0"", tubeless ready, aramid bead

REAR TIRE

S-Works Fast Trak 26x2.0"", tubeless ready, aramid bead

DRIVETRAIN

FRONT DERAILLEUR

New Shimano XTR, 34.9 clamp, bottom swing, dual pull

REAR DERAILLEUR

New Shimano XTR, standard spring, SGS cage

SHIFT LEVERS

New Shimano XTR Rapid Fire trigger shifters 9-speed

CHAIN

Shimano CN-7701 XTR

CRANKSET

Shimano New XTR, Hollowtech II arms

CHAINRINGS

Shimano XTR 22A/32C/44A

BOTTOM BRACKET

Shimano New XTR, 2pc

COCKPIT

STEM

Thomson CNC alloy, 31.8mm OS clamp

HANDLEBARS

SBC OS XC low rise carbon bar, 640mm wide, 6 degree up, 8 degree backsweep

SADDLE

Specialized BG Rival, Titanium rails

BRAKES

FRONT BRAKE

Shimano New XTR, hydraulic disc, Center Lock 160mm rotor

REAR BRAKE

Shimano New XTR, hydraulic disc, 140mm rotor

BRAKE LEVERS

Shimano New XTR SL

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
