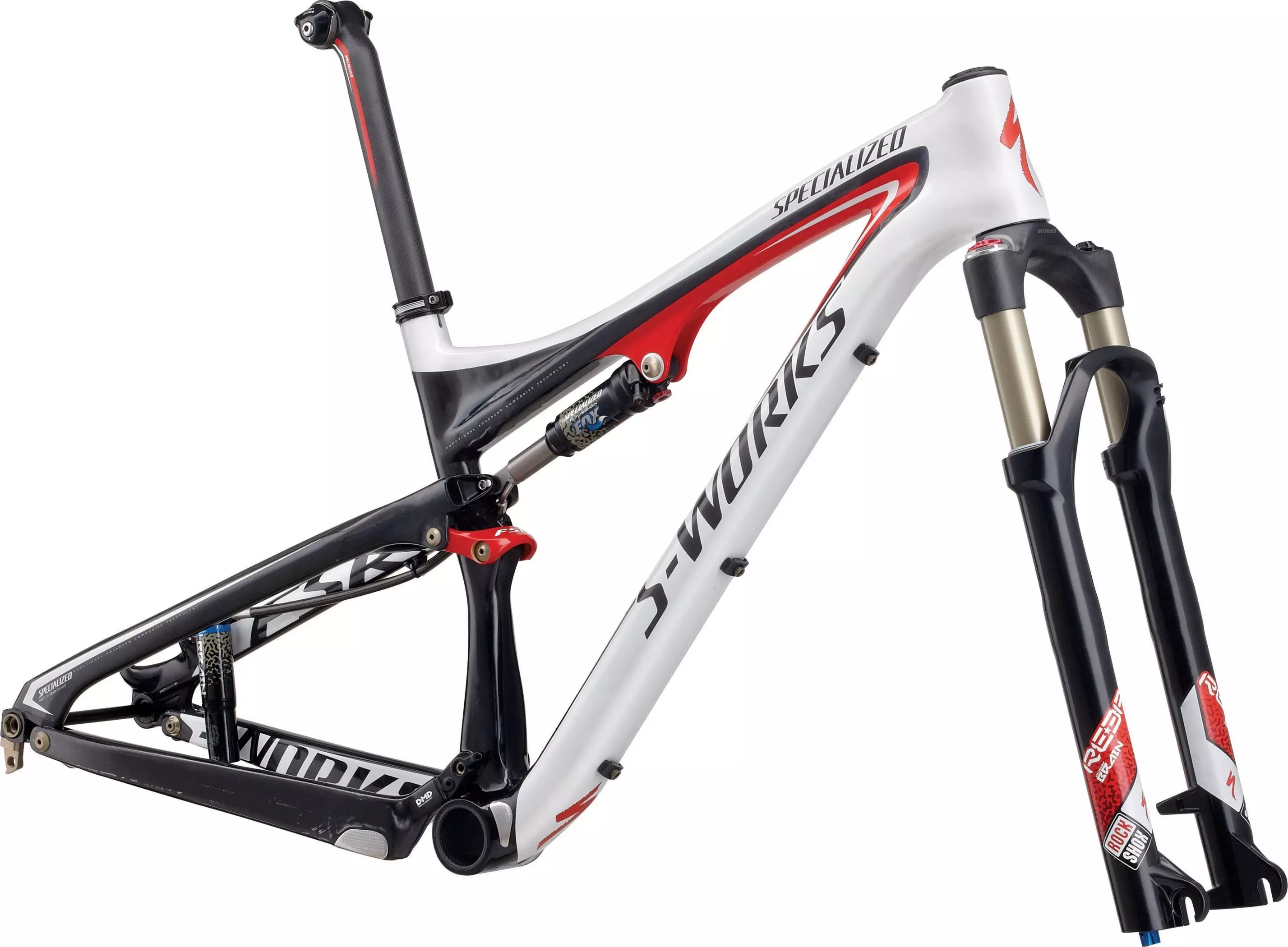

2011 S-Works Epic 29er Frameset

0 Reviews

Start with the same 29er chassis and suspension ridden by Specialized Factory Racing,…

Product Details

Start with the same 29er chassis and suspension ridden by Specialized Factory Racing, and either hang your own parts on it, or spec your absolute dream bike to your individual liking.

S-Works carbon single-bolt 30.9mm seatpost takes this already featherweight package to its absolute minimum without sacrificing stiffness or strength
Custom Specialized/RockShox S29 Brain fork features carbon tapered steerer/crown with rebound and Brain Fade adjustments to dial in the perfect platform for competitive XC bliss
FACT IS 11m carbon frame with oversized BB and sealed cartridge bearing pivots delivers strength, rigidity, and suppleness to create an uncompromising 100mm-travel Competitive XC bike
Specialized and Fox blend their brains to develop the FlowControl Mini Brain shock with Brain Fade inertia valve, air spring, and adjustable rebound for World Cup - and local trail - domination

Technical Specifications

FRAMESET

SEAT BINDER

36.9mm clamp, one bolt for carbon frame/post

FRAME

FACT 11m carbon front triangle, 29"" geometry, FACT IS construction, gussetless TT S/M, FACT carbon seatstays w/carbon non-drive DO and chainstays, tapered HT, carbon PF-30 BB, 142mm drop-outs, sealed cartridge bearing pivots, replaceable derailleur hanger, 100mm

HEADSET

1-1/8 and 1.5"" Threadless, Campy style upper with 1.5"" lower, cartridge bearings

SUSPENSION

FORK

Custom Specialized/RockShox Reba S29 with Brain, 1 1/2-1 1/8"" carbon steerer/crown, RockShox Reba lower, Brain Fade, external rebound adj., 100mm

REAR SHOCK

Fox/Specialized remote Mini-Brain, inertia valve, w/ Brain Fade adjust, 187x47mm, 29er hose length

WHEELS

REAR HUB

Specialized Hi Lo 142+ disc, double sealed cartridge bearing, RWS, 32h

COCKPIT

SEATPOST

S-Works Carbon, single-bolt head, 30.9mm, 400mm

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	Sm	Med	LG	XL
Ground-Top	917mm	936mm	945mm	964mm
Bottom Bracket Height - Low Setting	331mm	331mm	331mm	331mm
Top Tube Length (Horizontal)	554mm	589mm	615mm	641mm
Head Tube Height	90mm	110mm	120mm	140mm
Head Tube Angle - Low Setting	70.5°	70.5°	70.5°	70.5°
Seat Tube Angle (Actual) - Low Setting	69.5°	69.5°	70°	70°
Seat Tube Angle (Effective) - Low Setting	74°	74°	74°	74°
Top Tube Length (Actual)	527mm	559mm	584mm	607mm
Seat Tube Length - Center to Top	394mm	424mm	463mm	520mm
Wheel Base	1075mm	1109mm	1136mm	1163mm
Standover Height	755mm	766mm	775mm	790mm
Stack	586mm	605mm	614mm	633mm
Reach	386mm	415mm	438mm	458mm
Chainstay Length	448mm	448mm	448mm	448mm
Crank Length	170mm	175mm	175mm	175mm
Handlebar Width	680mm	680mm	680mm	680mm
Stem Length	75mm	90mm	105mm	105mm
Seatpost Length	400mm	400mm	400mm	400mm
