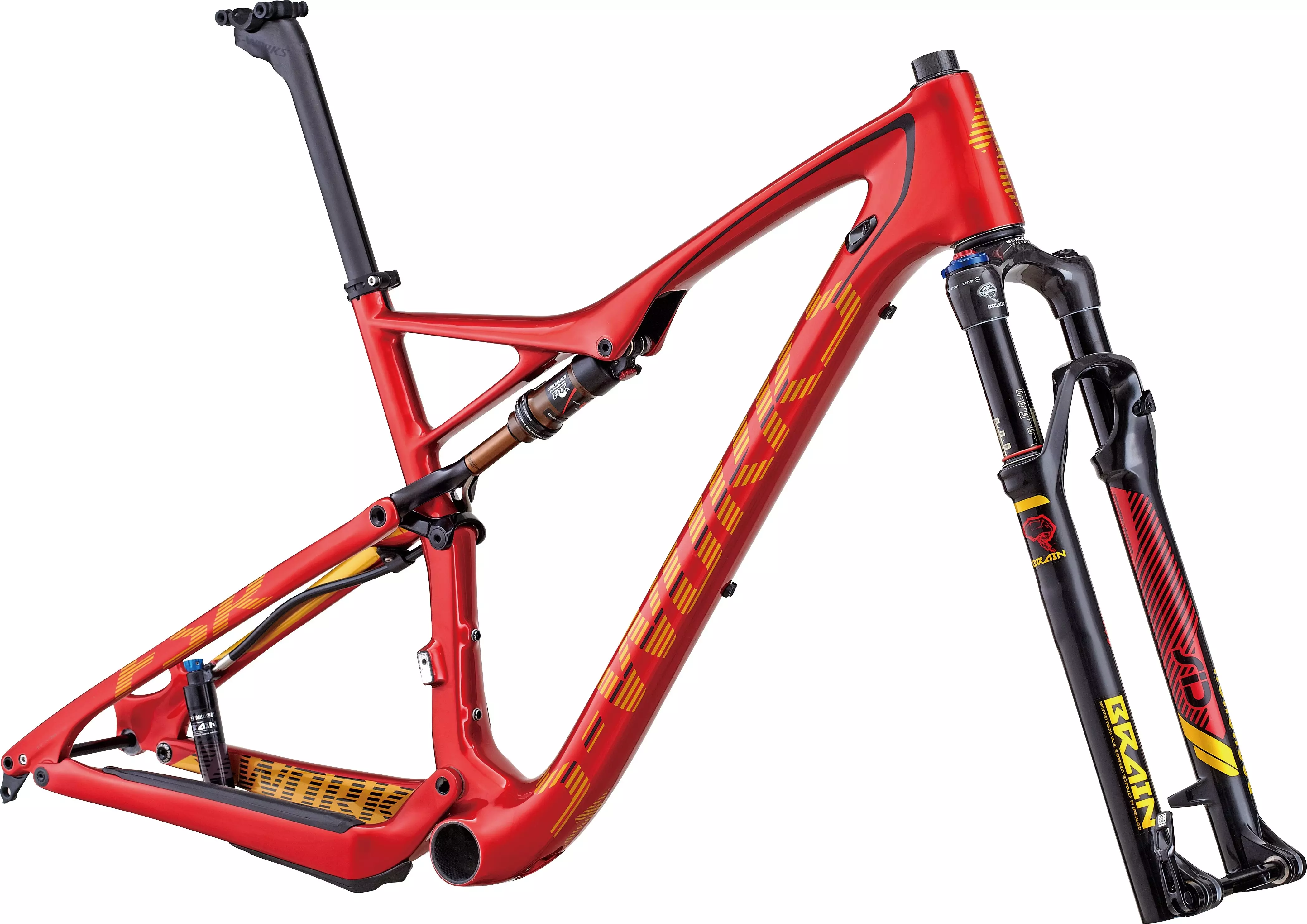

2014 S-Works Epic 29 Frameset

0 Reviews

The S-Works Epic FSR features a FACT carbon frame with a FOX/Specialized rear shock…

Product Details

The S-Works Epic FSR features a FACT carbon frame with a FOX/Specialized rear shock featuring AUTOSAG and Mini-Brain technology and 100mm of travel. Up front a custom RockShox SID World Cup 29 fork offers 100mm of travel, just waiting for a custom cross-country build.

FOX/Specialized remote Mini-Brain inertia-valve shock with AUTOSAG, Kashima coating and new lighter 2014 tune to seamlessly transition from efficient pedaling on smooth terrain to fully active on rough terrain
Custom RockShox SID World Cup 29 fork with Specialized Brain inertia-valve damping has 100mm of air-sprung travel, a carbon steerer tube, and 15mm thru-axle to create the most efficient and supple cross-country fork available
S-Works carbon two-bolt 27.2mm seatpost takes this already featherweight package to its absolute minimum without sacrificing stiffness or strength
All-new FACT IS 11m full carbon frame with dedicated 29er geometry, sealed cartridge bearing pivots on every FSR point, and 142mm dropouts delivers the all-around best performing 100mm-travel Competitive XC bike

Technical Specifications

FRAMESET

FRAME

FACT 11m carbon front triangle, SWAT EMT tool cradle, 29"" geometry, FACT IS construction, full FACT carbon rear triangle, tapered headtube, carbon PF30 BB, full internal shift/brake routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 100mm

SWAT

SWAT Technology compatible (not included)

HEADSET

1-1/8 and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings

SEAT BINDER

Specialized 7050 hard anodized alloy, single bolt, 31.8mm

SUSPENSION

REAR SHOCK

FOX/Specialized remote Mini-Brain w/ AUTOSAG, Kashima coating, inertia valve w/ Aramid hose, Brain Fade adjust, 205x53mm, 100mm travel

FORK

Custom RockShox SID World Cup 29 Brain, inertia valve damper, Solo Air spring, tapered carbon crown/steerer, top-mount Brain Fade and rebound adj., 15mm thru-axle, 100mm travel

DRIVETRAIN

BOTTOM BRACKET

PF30, OS press-in bearings, sealed cartridge

COCKPIT

SEATPOST

Specialized carbon, single bolt, 27.2mm, S: 350mm, Others: 400mm

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	S	M	L	XL
Seat Tube Length, Center to Top	400mm	434mm	470mm	520mm
Top Tube Length, Actual	529mm	557mm	583mm	611mm
Bottom Bracket Drop	40mm	40mm	40mm	40mm
Bottom Bracket Height	332mm	332mm	332mm	332mm
Seat Tube Angle, Actual	68.9°	69.25°	69.6°	70°
Seat Tube Angle, Effective	73.75°	73.75°	73.75°	73.75°
Wheel Base	1082mm	1112mm	1140mm	1168mm
Standover Height	770mm	774mm	780mm	793mm
Stack	587mm	601mm	615mm	634mm
Reach	393mm	418mm	441mm	462mm
Head Tube Length	90mm	105mm	120mm	140mm
Head Tube Angle	70.5°	70.5°	70.5°	70.5°
Chainstay Length	448mm	448mm	448mm	448mm
Top Tube Length, Horizontal	564mm	593mm	620mm	647mm
Crank Length	170mm	175mm	175mm	175mm
Handlebar Width	700mm	700mm	700mm	700mm
Stem Length	75mm	90mm	100mm	110mm
Seatpost Length	350mm	400mm	400mm	400mm
