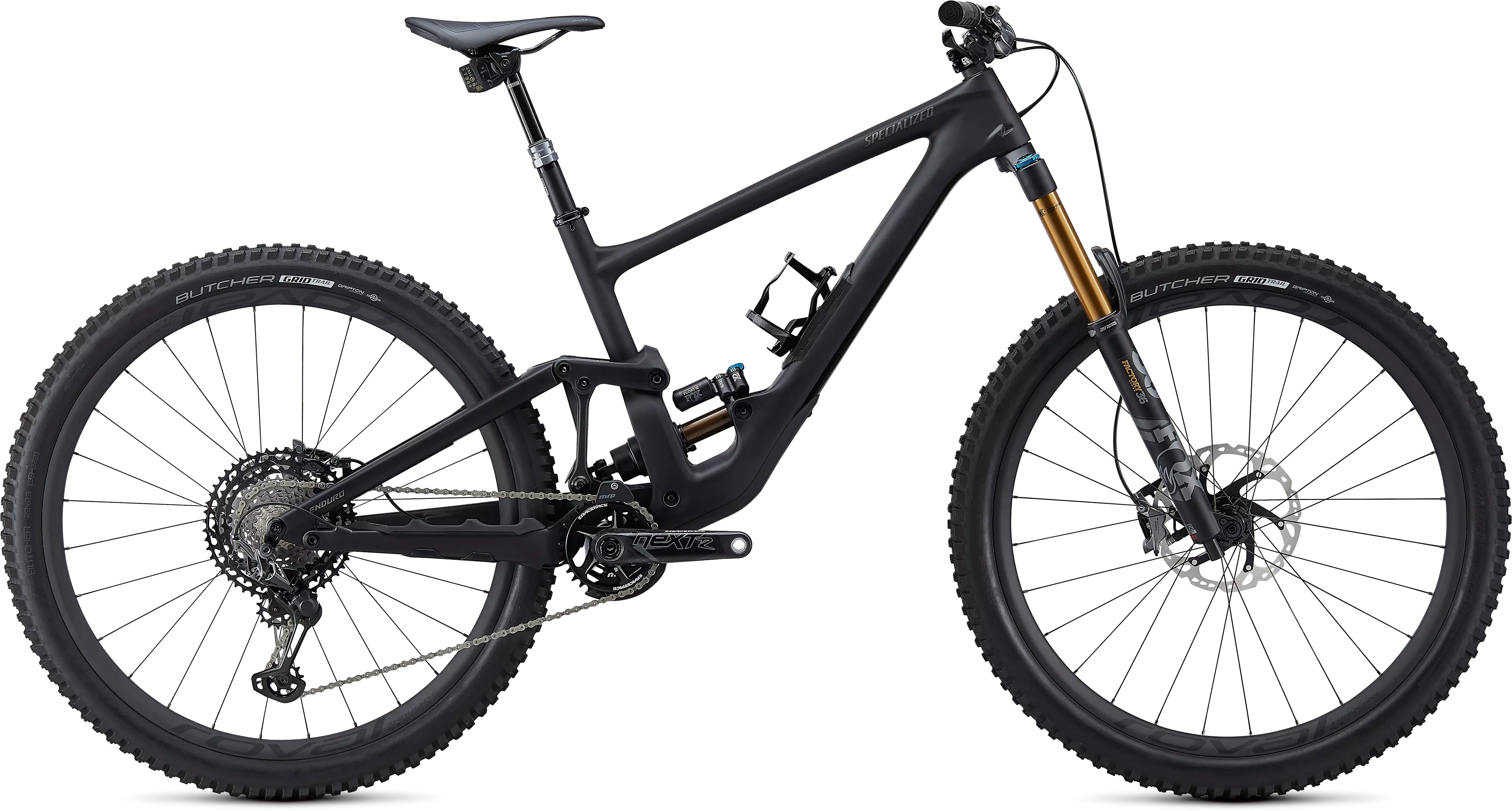

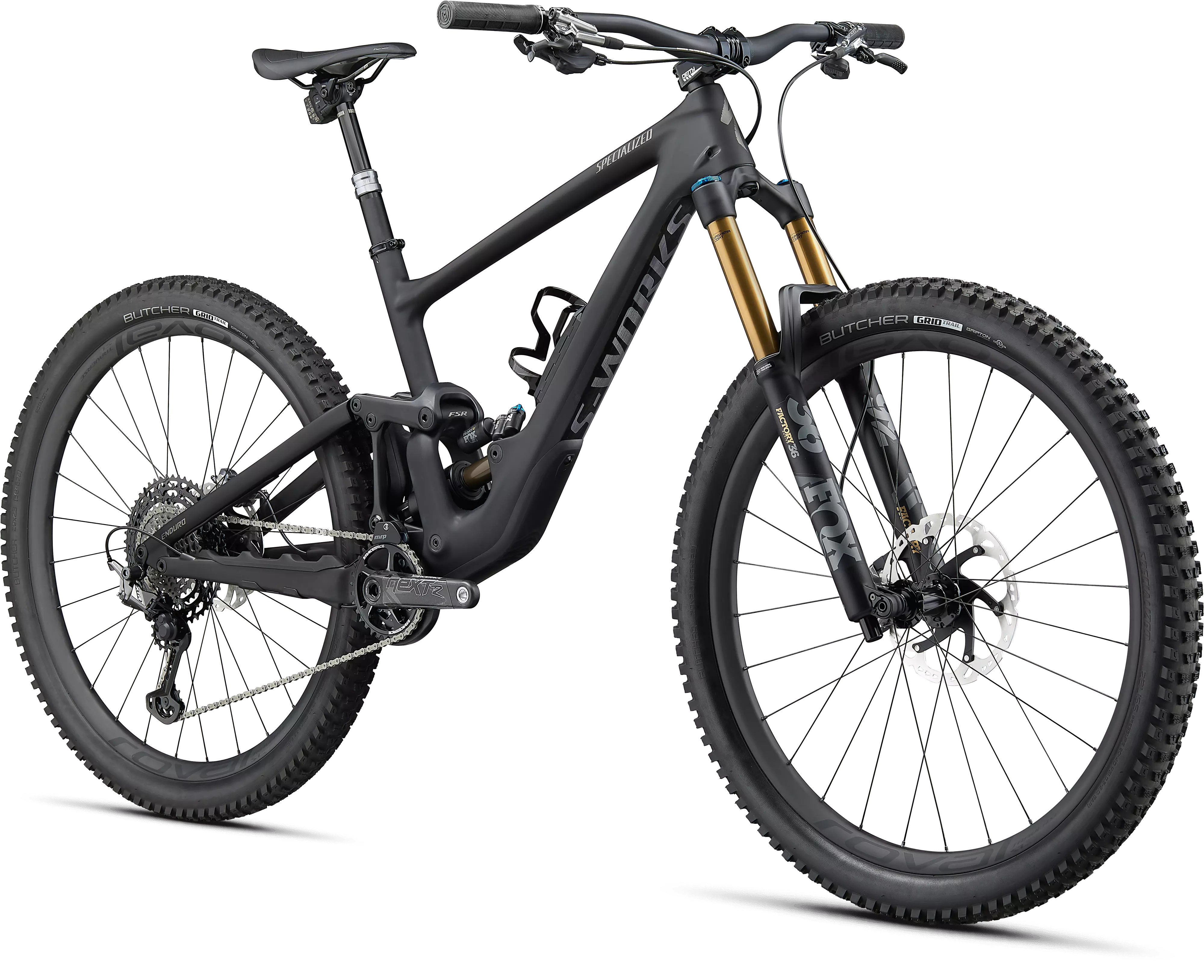

2020 S-Works Enduro
4.7
9 Reviews
This is the bike that defines the very genre that bears its name. The S-Works Enduro…
Product Details
This is the bike that defines the very genre that bears its name. The S-Works Enduro features a bomber-yet-lightweight carbon frame that blissfully tackles the kind of terrain that chews up and spits out lesser bikes. And it's absolutely dressed to kill. Let the drooling begin.
INCREDIBLY CAPABLE
If the Enduro looks like its sibling, the Demo, it's because they share plenty of downhill DNA. The Enduro rolls fast on 29er hoops and boasts 170 millimeters of front and rear suspension courtesy of an all new-design that obliterates the biggest hits with ease.
ASTONISHINGLY FAST...UP AND DOWN THE TRAIL
Stomp on the pedals and the new Enduro accelerates far quicker than you're expect possible from a downhill bruiser. We pulled out all the engineering stops and made the Enduro an incredibly efficient pedaling machine. The end result? Less bobbing. More speed.
• All-new design boasts 170 millimeters of suspension and ultralight carbon linkage.
• Top-shelf FOX front and rear suspension give you ultimate control and tuneability.
• Full Shimano XTR drivetrain and four-piston XTR disc brakes.
Technical Specifications
COCKPIT
Saddle
Body Geometry Myth 155 S, Body Geometry Henge 143 M/L/XL, hollow ti rails
SeatPost
RockShox Reverb AXS, 30.9, 1X remote, (S2/S3: 150mm, S4/S5:170mm)
Stem
Deity, 35.0mm
Grips
Deity, Knuckleduster, Black

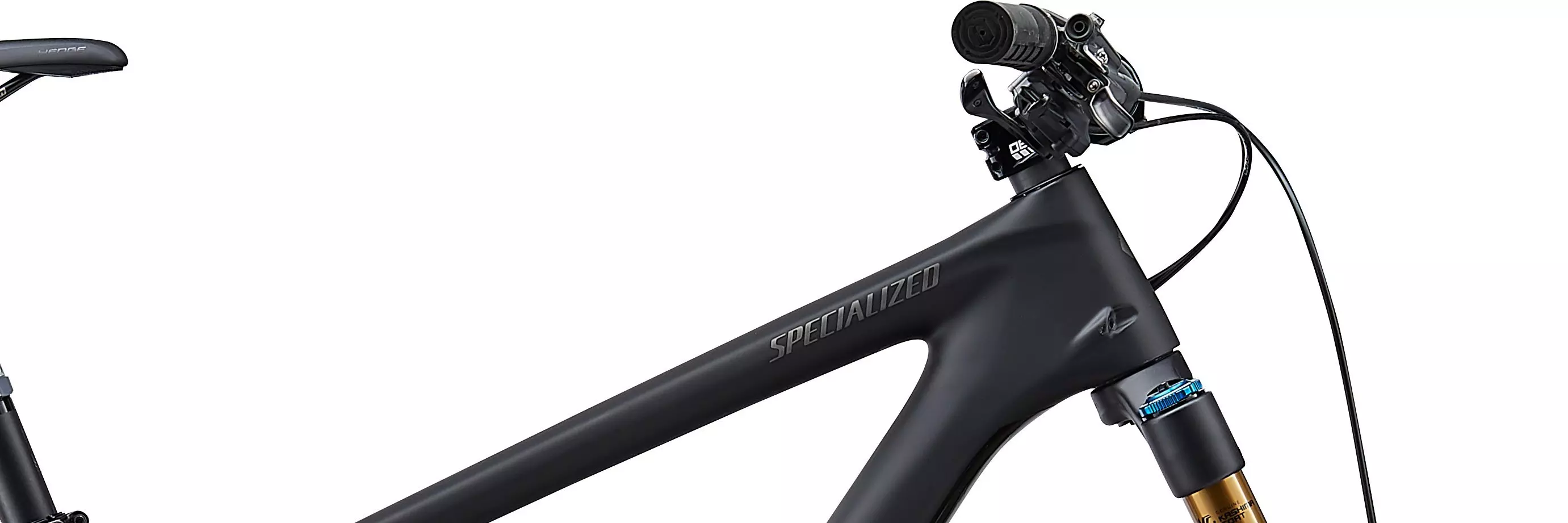

Handlebars
Roval Traverse SL Carbon, riser bar, 6-degree upsweep, 8-degree backsweep, 30mm rise, 800mm, 35.0mm
DRIVETRAIN
Rear Derailleur
Shimano XTR M9100, 12-speed, Shadow Plus
Shift Levers
Shimano XTR M9100, 12-speed
Cassette
Shimano XTR M9100, 12-speed, 10-51t
Chain
Shimano XTR M9100, 12-speed w/ quick link

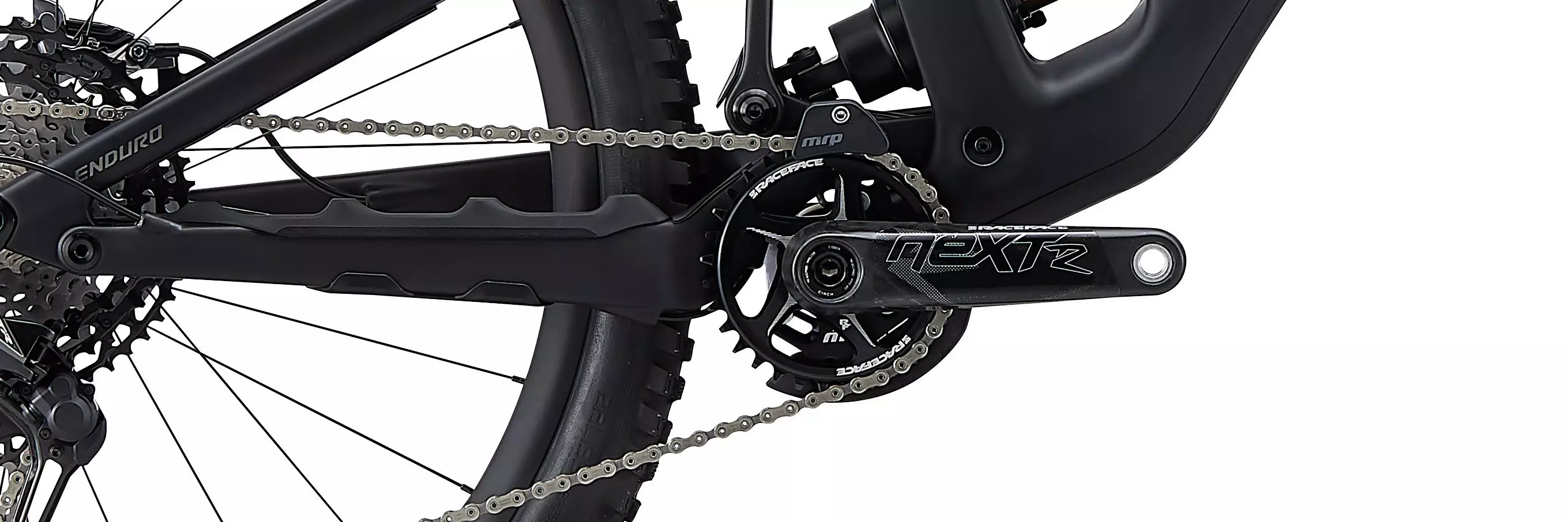

Crankset
Race Face Next R Carbon, 170mm
Chainrings
Steel, 30T
Bottom Bracket
Threaded, 30mm spindle
WHEELS
Rims
Roval Traverse SL Carbon 29, hookless carbon, 30mm inner width, hand-built, 2Bliss Ready
Front Hub
Roval Traverse SL, sealed cartridge bearings, 15mm thru-axle, 110mm spacing, 28h
Rear Hub
Roval Traverse SL, DT Swiss Star Ratchet, 54t engagement, Shimano Micro Spline driver body, 12mm thru-axle, 148mm spacing, 28h
Spokes
DT Competition Race
Rear Tire
Butcher, GRID TRAIL casing, GRIPTON® compound, 29x2.3"
Front Tire
Butcher, GRID TRAIL casing, GRIPTON® compound, 2Bliss Ready, 29x2.6"
Inner Tubes
Standard, Presta valve
Suspension
Rear Shock
FOX FLOAT X2 Factory, Rx Trail Tune, EVOL Air sleeve, 2-position adjustment, Trunnion mount, 205x60mm

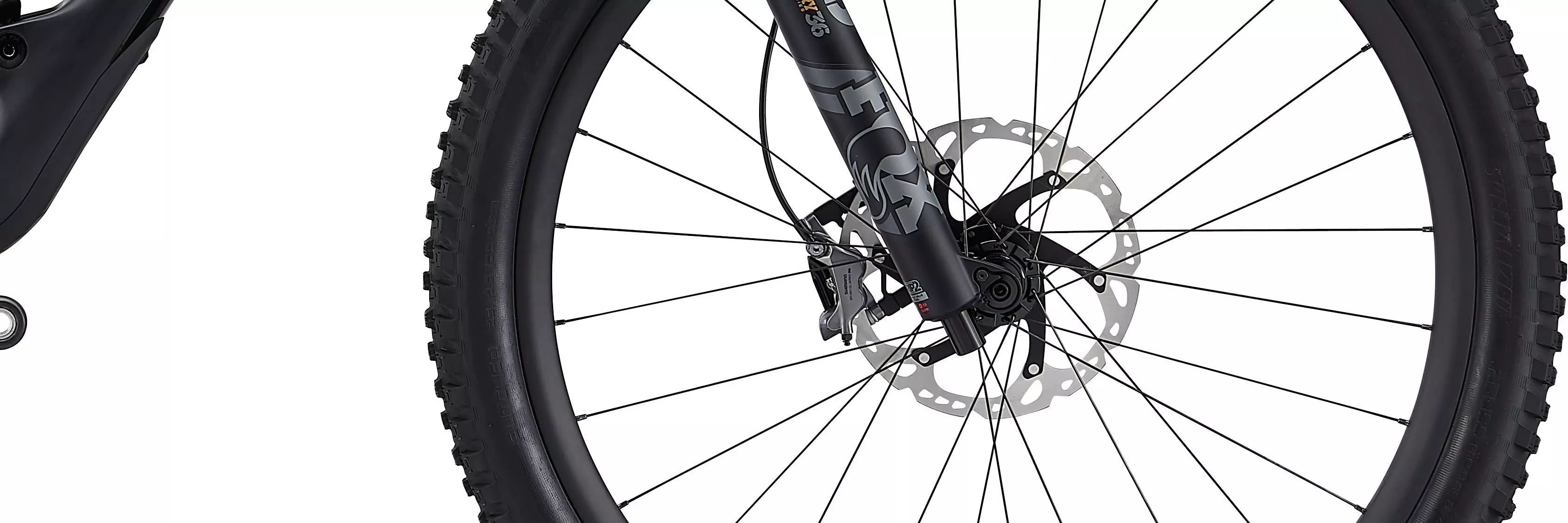

Fork
FOX FLOAT FACTORY 36, Kashima, Grip 2 Damper, 44 OS, Kabolt 110, 170mm
BRAKES
Front Brake
Shimano XTR M9120, 4-piston caliper, hydraulic disc, 180mm rotor
Rear Brake
Shimano XTR M9120, 4-piston caliper, hydraulic disc, 180mm rotor
FRAMESET
Frame

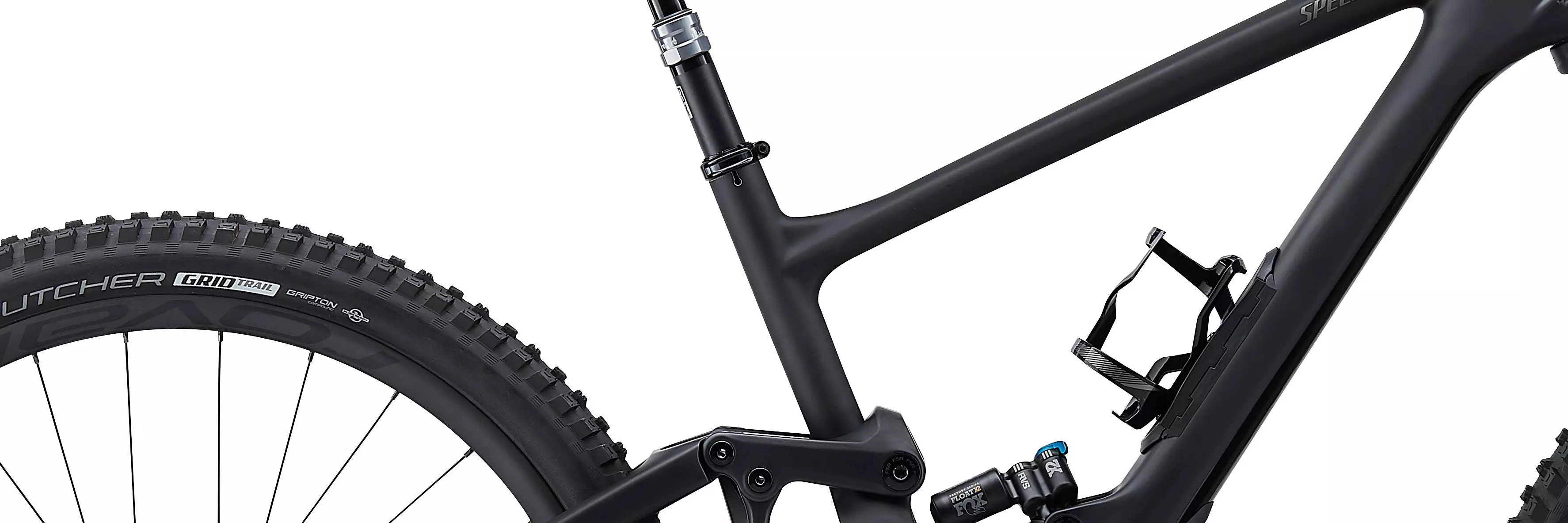

FACT 11m carbon chassis and rear-end, S-Sizing Enduro Race Geometry, SWAT™ Door integration, threaded BB, internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 170mm of travel
Seat Binder
Specialized bolt-type, alloy, 38.6mm
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S2 | S3 | S4 | S5 | |
|---|---|---|---|---|
| Crank Length | 170mm | 170mm | 170mm | 170mm |
| Seatpost Length | 150mm | 150mm | 170mm | 170mm |
| Handlebar Width | 800mm | 800mm | 800mm | 800mm |
| Stem Length | 35mm | 50mm | 50mm | 50mm |
| Saddle Width | 155mm | 143mm | 143mm | 143mm |
| Stack (low B-B) | 616mm | 620mm | 629mm | 638mm |
| Reach (low B-B) | 437mm | 464mm | 487mm | 511mm |
| Head-Tube Length | 95mm | 100mm | 110mm | 120mm |
| Head-Tube Angle (low B-B) | 63.9° | 63.9° | 63.9° | 63.9° |
| Head-Tube Angle | 64.3° | 64.3° | 64.3° | 64.3° |
| B-B Height (low B-B) | 347mm | 347mm | 347mm | 347mm |
| B-B Height | 354mm | 354mm | 354mm | 354mm |
| B-B Drop (low B-B) | 28mm | 28mm | 28mm | 28mm |
| B-B Drop | 21mm | 21mm | 21mm | 21mm |
| Trail (low B-B) | 132mm | 132mm | 132mm | 132mm |
| Fork Length (full) | 581mm | 581mm | 581mm | 581mm |
| Fork Rake/Offset | 46mm | 46mm | 46mm | 46mm |
| Front-Center (low B-B) | 777mm | 806mm | 833mm | 862mm |
| Chain-Stay Length | 442mm | 442mm | 442mm | 442mm |
| Wheelbase | 1217mm | 1246mm | 1274mm | 1302mm |
| Seat-Tube Length | 400mm | 420mm | 440mm | 465mm |
| Seat-Tube Angle | 76° | 76° | 76° | 76° |
| Top Tube Length (Horizontal) | 591mm | 619mm | 644mm | 670mm |
