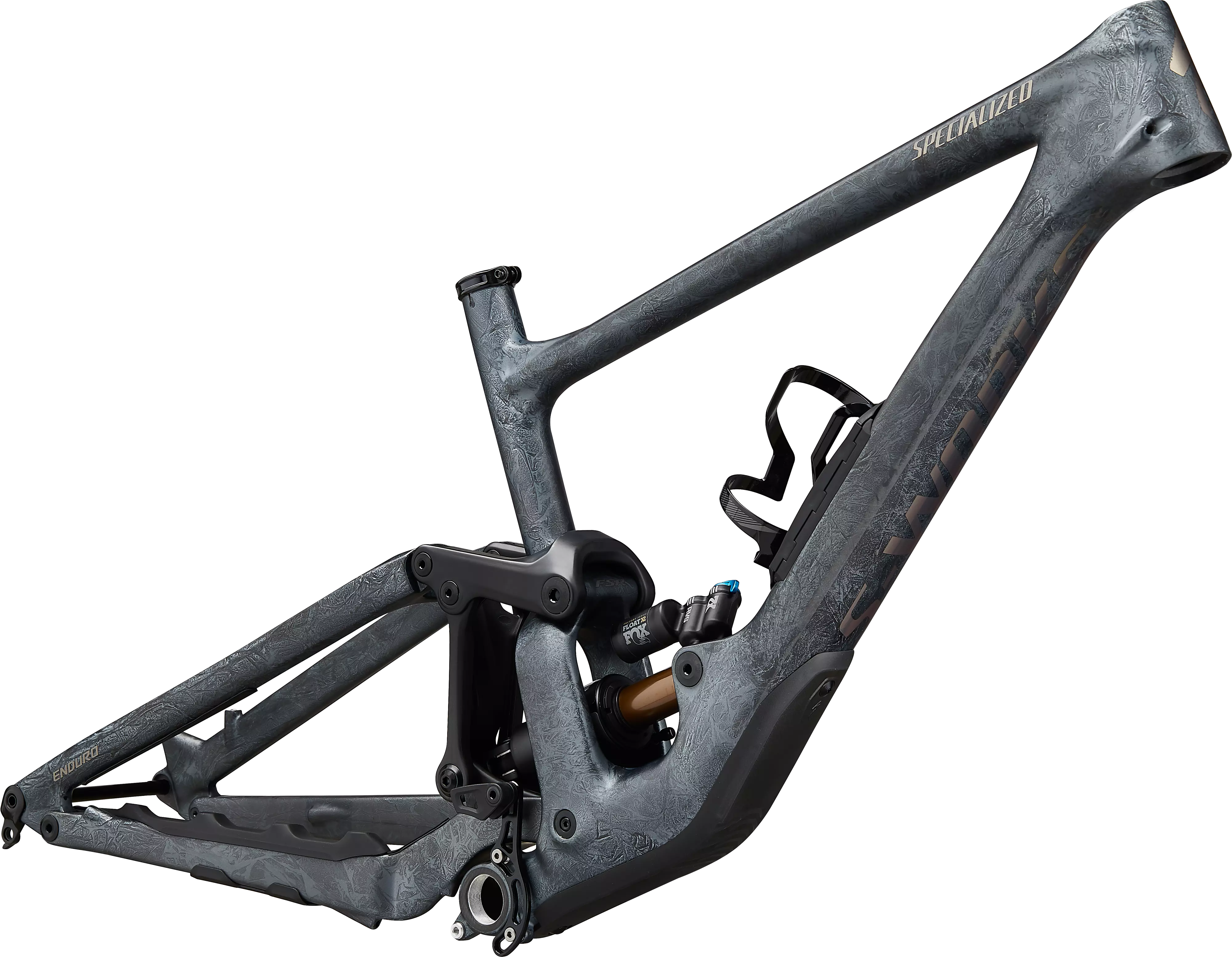

2020 S-Works Enduro Frameset

$3,310

5

1 Reviews

If you're looking to build the fastest, most capable enduro race bike, you can't…

Introducing the All-New Enduro
Introducing the All-New Enduro

Product Details

Add Icon

If you're looking to build the fastest, most capable enduro race bike, you can't do better than the model that defines the very genre. The S-Works Enduro's blissfully tackles the kind of terrain that chews up and spits out lesser bikes. Upper and lower carbon linkage shaves 210 grams off the already ultra-light, carbon chassis.

INCREDIBLY CAPABLE

If the Enduro looks like its sibling, the Demo, it's because they share plenty of downhill DNA. The Enduro rolls fast on 29er hoops and boasts 170 millimeters of front and rear suspension courtesy of an all new-design that obliterates the biggest hits with ease.

ASTONISHINGLY FAST...UP AND DOWN THE TRAIL

Stomp on the pedals and the new Enduro accelerates far quicker than you're expect possible from a downhill bruiser. We pulled out all the engineering stops and made the Enduro an incredibly efficient pedaling machine. The end result? Less bobbing. More speed.

• All-new design boasts 170 millimeters of suspension.

• FOX FLOAT X2 Factory shock offers unrivaled big-hit control and on-the-fly adjustability.

• Ingenious SWAT™ Door down tube storage system, threaded bottom bracket, and internal cable routing.

Technical Specifications

Add Icon

FRAMESET

Frame

FACT 11m carbon chassis and rear-end, S-Sizing Enduro Race Geometry, SWAT™ Door integration, threaded BB, internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 170mm of travel

Seat Binder

Specialized bolt-type, alloy, 38.6mm

Suspension

Rear Shock

FOX FLOAT X2 Factory, Rx Trail Tune, EVOL Air sleeve, 2-position adjustment, Trunnion mount, 205x60mm

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
S2S3S4S5
Stack (low B-B)616mm620mm629mm638mm
Reach (low B-B)437mm464mm487mm511mm
Head-Tube Length95mm100mm110mm120mm
Head-Tube Angle (low B-B)63.9°63.9°63.9°63.9°
Head-Tube Angle64.3°64.3°64.3°64.3°
B-B Height (low B-B)347mm347mm347mm347mm
B-B Height354mm354mm354mm354mm
B-B Drop (low B-B)28mm28mm28mm28mm
B-B Drop21mm21mm21mm21mm
Trail (low B-B)132mm132mm132mm132mm
Fork Length (full)581mm581mm581mm581mm
Fork Rake/Offset46mm46mm46mm46mm
Front-Center (low B-B)777mm806mm833mm862mm
Chain-Stay Length442mm442mm442mm442mm
Wheelbase1217mm1246mm1274mm1302mm
Seat-Tube Length400mm420mm440mm465mm
Seat-Tube Angle76°76°76°76°
Top Tube Length (Horizontal)591mm619mm644mm670mm
Geometry

Rider Reviews

5

1 Reviews



I would buy again!!!!!

Dis hit hard mane she ripped dam berms dem jumps and dem brewskis mane.
