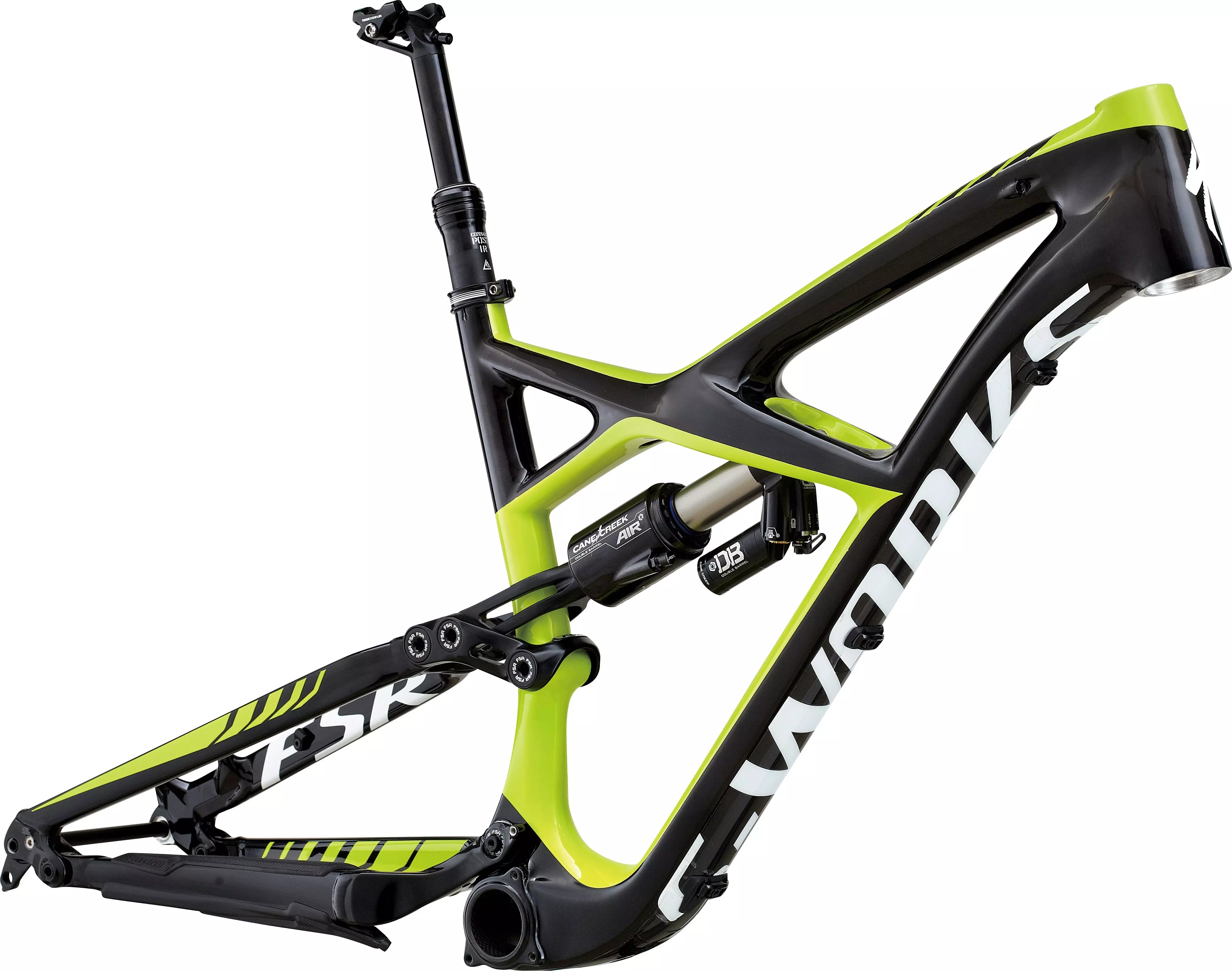

2014 S-Works Enduro Frame

0 Reviews

The S-Works Enduro FSR Carbon is world's most advanced all-mountain machine. Build…

Product Details

The S-Works Enduro FSR Carbon is world's most advanced all-mountain machine. Build up your own 165mm trail slaying rig with this frameset, already equipped with a Specialized Command Post IR.

FACT IS-X 11m carbon FSR frame and M5 alloy rear triangle offers 165mnm of rear wheel travel with an improved shock link, plus 142+ dropouts for robust and lightweight All-Mountain performance
Custom Cane Creek Double Barrel air shock provides a rider's dream of externally adjustable high-and-low-speed rebound and compression settings for maximum control over challenging terrain
All-new, Specialized Command Post IR uses a remote lever to adjust saddle height on-the-fly to maximize climbing and descending performance

Technical Specifications

FRAMESET

FRAME

FACT IS-X 11m carbon front triangle, M5 rear triangle, tapered headtube, PF30 BB, ISCG '05 mounts, internal Command Post IR routing, 142+ dropouts, full cartridge bearing pivots, replaceable derailleur hanger, 165mm travel

SWAT

Bottle cage w/ SWAT Technology compatible (not included)

HEADSET

1-1/8 and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings

SEAT BINDER

7050 hard anodized alloy collar, single bolt, 34.9mm

SUSPENSION

REAR SHOCK

Custom Cane Creek Double Barrel Air, high/low speed comp and reb adj., climb switch, 215.9mm x 57.2mm

COCKPIT

SEATPOST

Specialized Command Post IR, 3-position, internally routed adjustable height w/ air spring, remote operated, single bolt head, 30.9mm, S:100mm, Others: 125mm travel

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	S	M	L
Ground-Top	918mm	928mm	936mm
Bottom Bracket Height - Low Setting	351mm	351mm	351mm
Top Tube Length (Horizontal)	558mm	588mm	617mm
Seat Tube Angle (Effective)	75°	75°	75°
Head Tube Height	110mm	120mm	130mm
Top Tube Length (Actual)	516mm	546mm	573mm
Seat Tube Angle (Actual)	69.5°	69.6°	69.7°
Seat Tube Length - Center to Top	396mm	430mm	468mm
Wheel Base	1121mm	1153mm	1183mm
Standover Height	757mm	760mm	769mm
Stack	567mm	577mm	585mm
Reach	404mm	431mm	457mm
Head Tube Angle	66.5°	66.5°	66.5°
Chainstay Length	419mm	419mm	419mm
Crank Length	170mm	175mm	175mm
Handlebar Width	720mm	720mm	720mm
Stem Length	60mm	60mm	75mm
Seatpost Length	380mm	425mm	425mm
