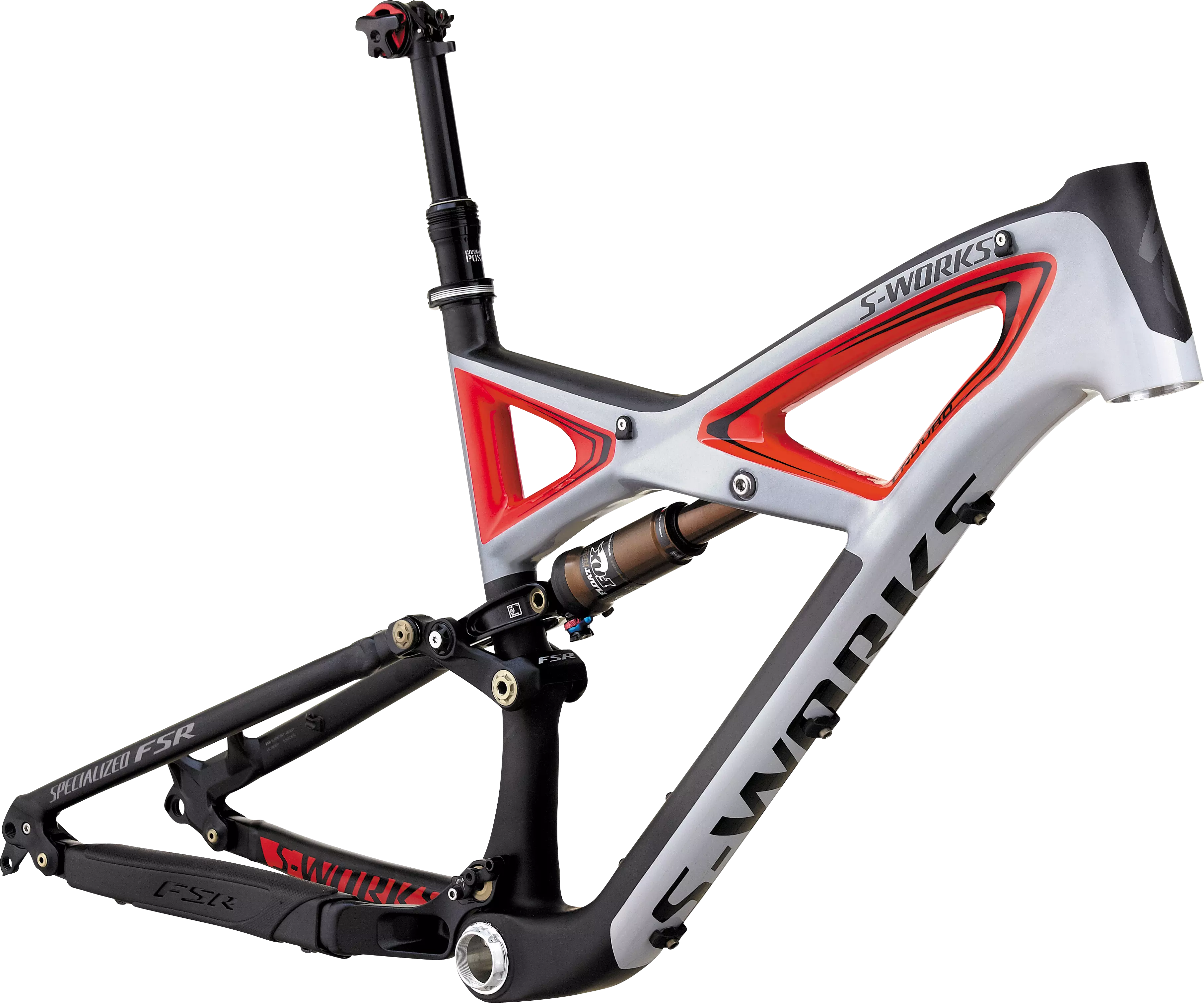

2012 S-Works Enduro Carbon Frame

0 Reviews

The S-Works Enduro Carbon is world's most advanced all-mountain machine. Build up…

Color:

Gloss/Satin Grey/Carbon/Red

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Product Details

The S-Works Enduro Carbon is world's most advanced all-mountain machine. Build up your own 160mm trail slaying rig with this frameset, already equipped with a Specialized Command Post BlackLite.

FACT IS-X 10m carbon FSR frame and M5 alloy rear triangle offers 160mnm of rear wheel travel, 142mm-wide dropouts, and replaceable ISCG mount for a robust and versatile all-mountain performance
Custom Fox RP23 Adaptive Logic shock with buttery-smooth Kashima coating features Boost Valve and 3 open-position compression settings, ProPedal, and rebound adjustment
All-new Specialized Command Post BlackLite uses 3 remote-actuated saddle height positions to maximize climbing and descending performance

Technical Specifications

FRAMESET

FRAME

FACT IS-X 10m carbon front triangle, M5 rear triangle, tapered HT, replaceable ISCG mounts, 142mm dropouts, full cartridge bearing pivots, replaceable derailleur hanger, 160mm travel

HEADSET

1-1/8 and 1-1/2"" Threadless, Campy style upper with 1-1/2"" lower bearing for tapered integrated HT, cartridge bearings

SEAT BINDER

34.9mm clamp ID, 7050 hard anodized alloy collar, single bolt

SUSPENSION

REAR SHOCK

Fox RP23 Adaptive Logic, Kashima coating, with Boost Valve, reb and separate climbing setting, custom 3-position open comp adj., 8.5x2.125""

COCKPIT

SEATPOST

Specialized Command Post BlackLite, 3 position, adjustable height w/air spring, remote operated, single bolt head 30.9mm, S:100mm travel, M/L/XL:125mm

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	S	M	L	XL
Ground-Top	927mm	937mm	955mm	973mm
Bottom Bracket Height - Low Setting	350mm	350mm	350mm	350mm
Top Tube Length (Horizontal)	560mm	590mm	620mm	645mm
Head Tube Height	120mm	130mm	150mm	170mm
Head Tube Angle - Low Setting	66.5°	66.5°	66.5°	66.5°
Seat Tube Angle (Actual) - Low Setting	70.5°	70.5°	70.5°	70.5°
Seat Tube Angle (Effective) - Low Setting	75°	75°	75°	75°
Top Tube Length (Actual)	532mm	562mm	589mm	615mm
Seat Tube Length - Center to Top	420mm	444mm	467mm	520mm
Wheel Base	1120mm	1151mm	1185mm	1213mm
Standover Height	756mm	761mm	773mm	801mm
Stack	577mm	587mm	605mm	623mm
Reach	404mm	431mm	457mm	477mm
Chainstay Length	419mm	419mm	419mm	419mm
Crank Length	170mm	175mm	175mm	175mm
Handlebar Width	720mm	720mm	720mm	720mm
Stem Length	60mm	60mm	75mm	90mm
Seatpost Length	380mm	380mm	380mm	380mm
